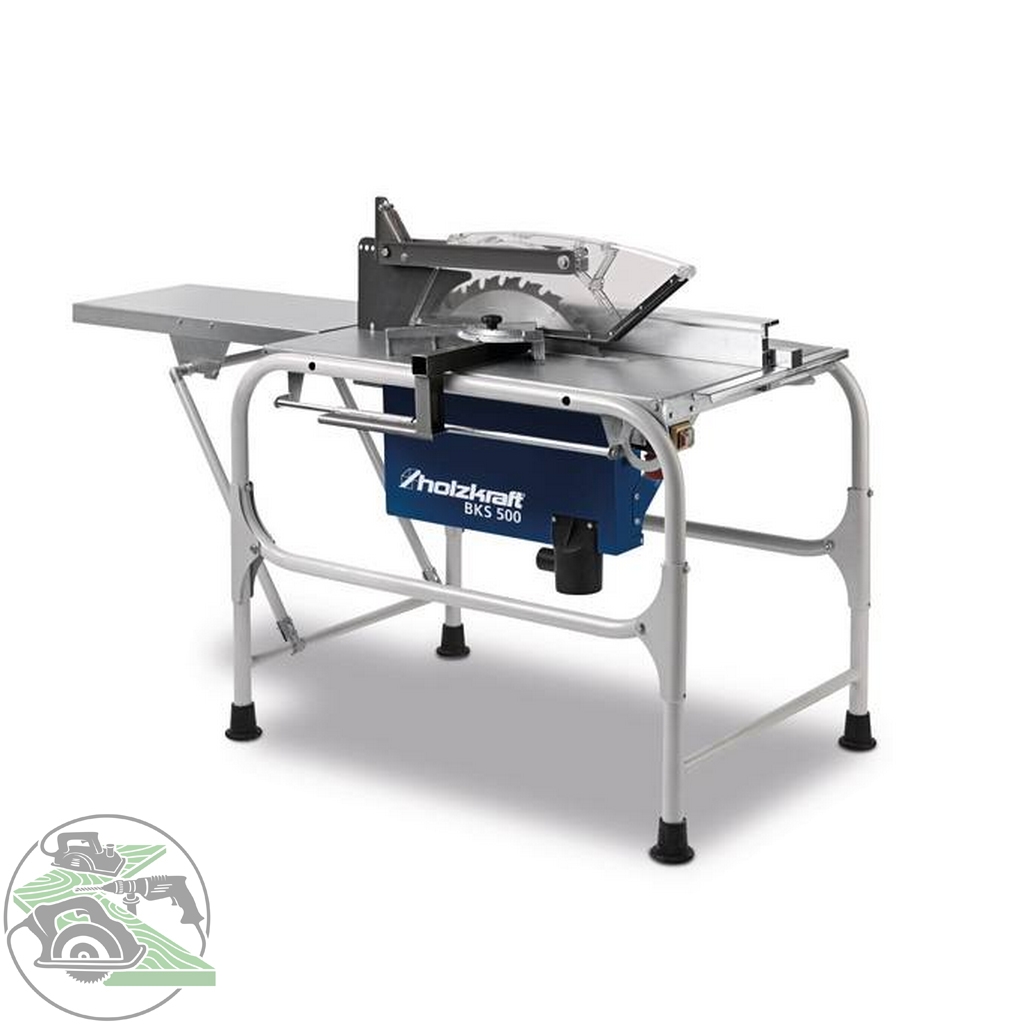

Description
- NEW -
Description:
- Optimum user safety thanks to the pendulum safety system
Protective cover - fulfilment of the strictest requirements and approval
by BG
- Transparent protective cover for an optimum view of the cutting line
- Angle-adjustable cross-cutting device with wedge cutting gauge on
Round rod guided by maintenance-free plain bearings
- Aluminium parallel fence with high and flat contact edge and
Eccentric clamping enables the trimming of boards,
Rip cuts, bevelled and angled cuts
- Fold-down table extension for long workpieces
- Consistent cutting precision of the highest quality thanks to
powerful motor
Equipment:
-Pendulum safety guard, transparent
Sturdy, foldable tubular frame, galvanised and powder-coated
Large, non-slip rubber foot plates
Angle-adjustable cross-cutting device with wedge cutting gauge,
Foldable
- Aluminium parallel fence with high and flat contact edge
- Table extension (800 x 400 mm), foldable
-Large lifting eyes
- Phase inverter
- Brackets for aluminium parallel stop and assembly tool
Scope of delivery:
- Carbide saw blade Ø500mm Z44
- Folding table extension 800 x 400 mm
- Pendulum safety guard
- Push stick
- Push handle
- Tool for changing the saw blade
Technical data:
Saw blade D 500 mm Z44
Max. Cutting height 90° 150 mm
Cutting width with longitudinal stop 370 mm
Cutting depth before saw blade with cross-cutting gauge 250 mm
Main saw blade speed 2800 mm
Sound power level at idle 103 dB
Input power 4.2 kW
Supply voltage 400V/50 Hz
Suction nozzle D top/bottom 50 mm / 95 mm
Table size (LxW) 1000×660 mm
Working height 860 mm
Dimensions (LxWXH max.) 1870x810x1170 mm
Weight 103 kg
No. 5740500
Availability on request
