Description
- NEW -

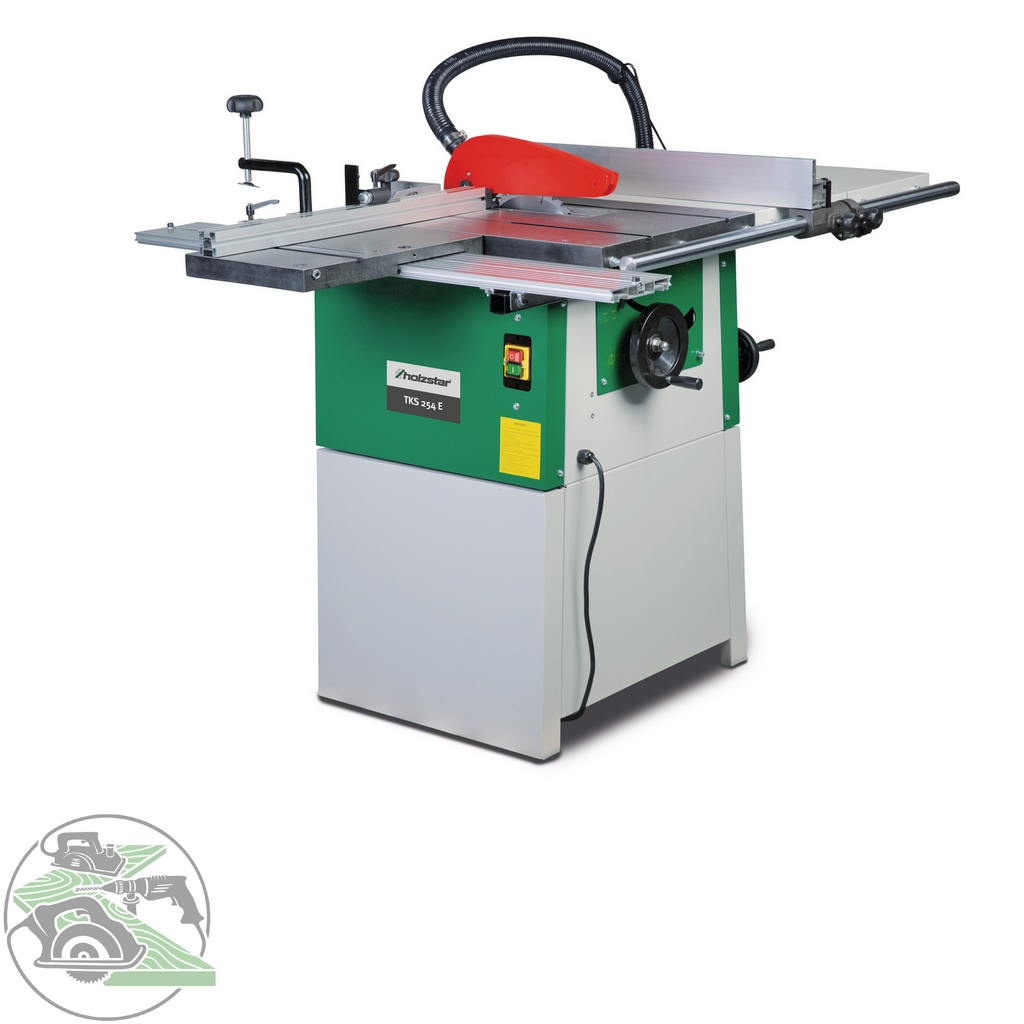

- Large steel machine table,
Galvanised as standard against corrosion

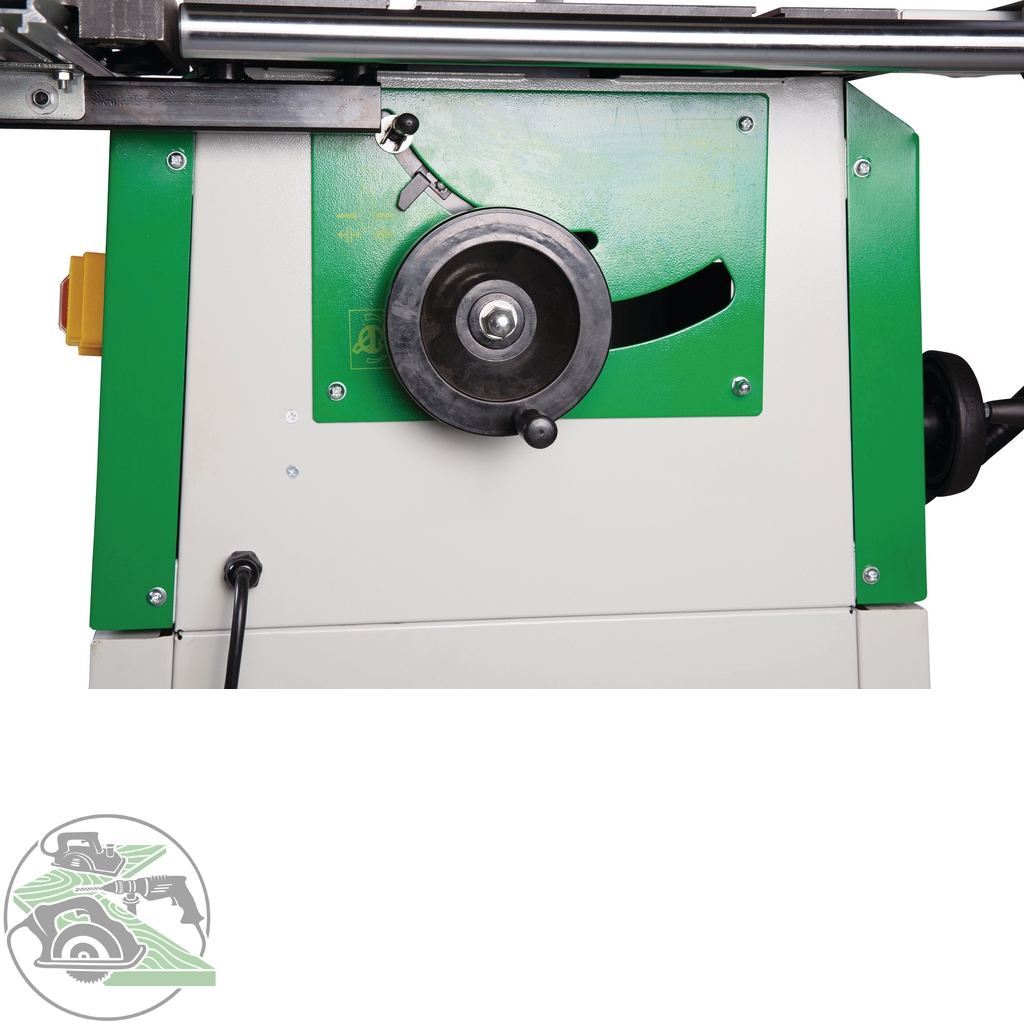

- Saw blade tilt from 90° to -45°
to the left, precise, accurate to the degree and convenient
Adjustable via handwheel and scale
- Large central suction connection Ø 100 mm
- The saw blade height adjustment also takes place
via a handwheel from the front panel
- The stable suspension of the saw unit
front and rear enables precise cuts
- With powerful motor and thermal
Overload protection
- Incl. saw blade protection cover with integrated
Suction connection
- Precise saw blade tilt from 90° to -45°
to the left
- High stability for precise cuts
Technical data:
Dimensions and weights
Length approx. 1430 mm
Width/depth approx. 1000 mm
Height approx. 1030 mm
Weight approx. 105 kg
Suction connection
Suction nozzle diameter 100 mm
Suction nozzle diameter saw blade guard 30 mm
Electrical data
Drive motor power 1.5 kW
Input power 2.0 kW
Total output 2.1 kW
Total connected load 3.5 A
Supply voltage 400 V
Phase(s) 3 Ph
Current type AC
Mains frequency 50 Hz
Noise emission
Sound pressure level 84.7 dB(A)
Circular saw unit

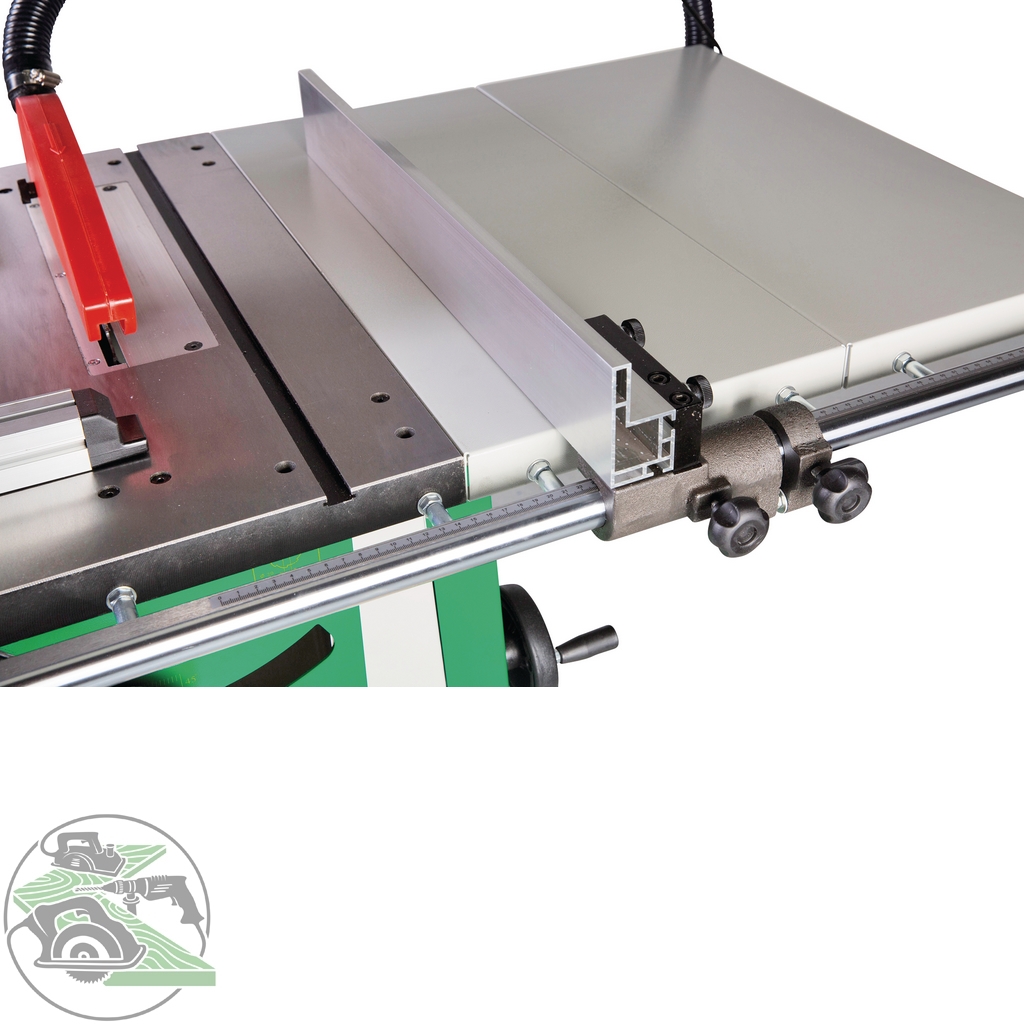

Cutting width with rip fence 680 mm
Max. Cutting width to the left of the saw blade 650 mm
Saw blade inclination 45 - 90 °
Max. Cutting height 90° 80 mm
Max. Cutting height 45° 58 mm
Saw blade diameter 254 mm
Saw blade speed 4000 min¯¹

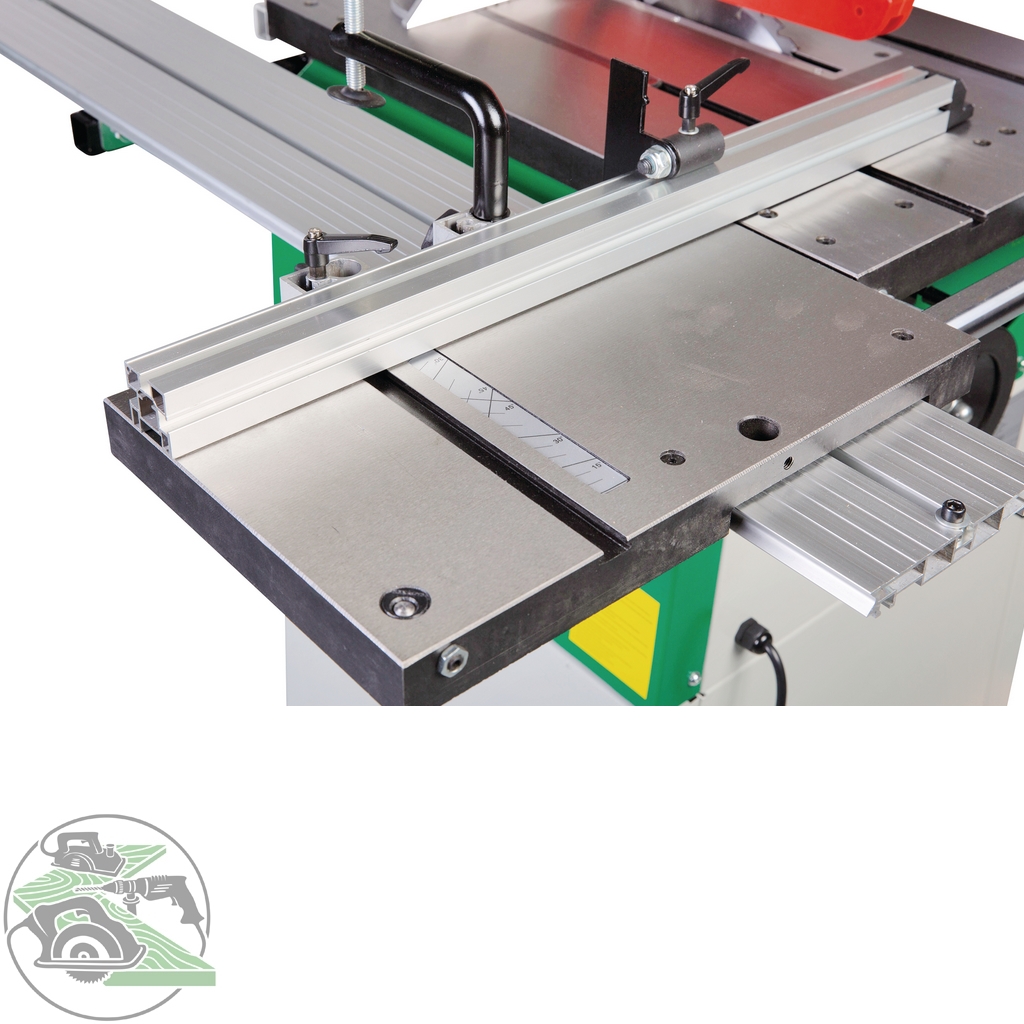

Sliding carriage and table
Format slide length 400 mm
Format sliding carriage width 250 mm
Table length 635 mm
Table width 420 mm
Table height 850 mm
