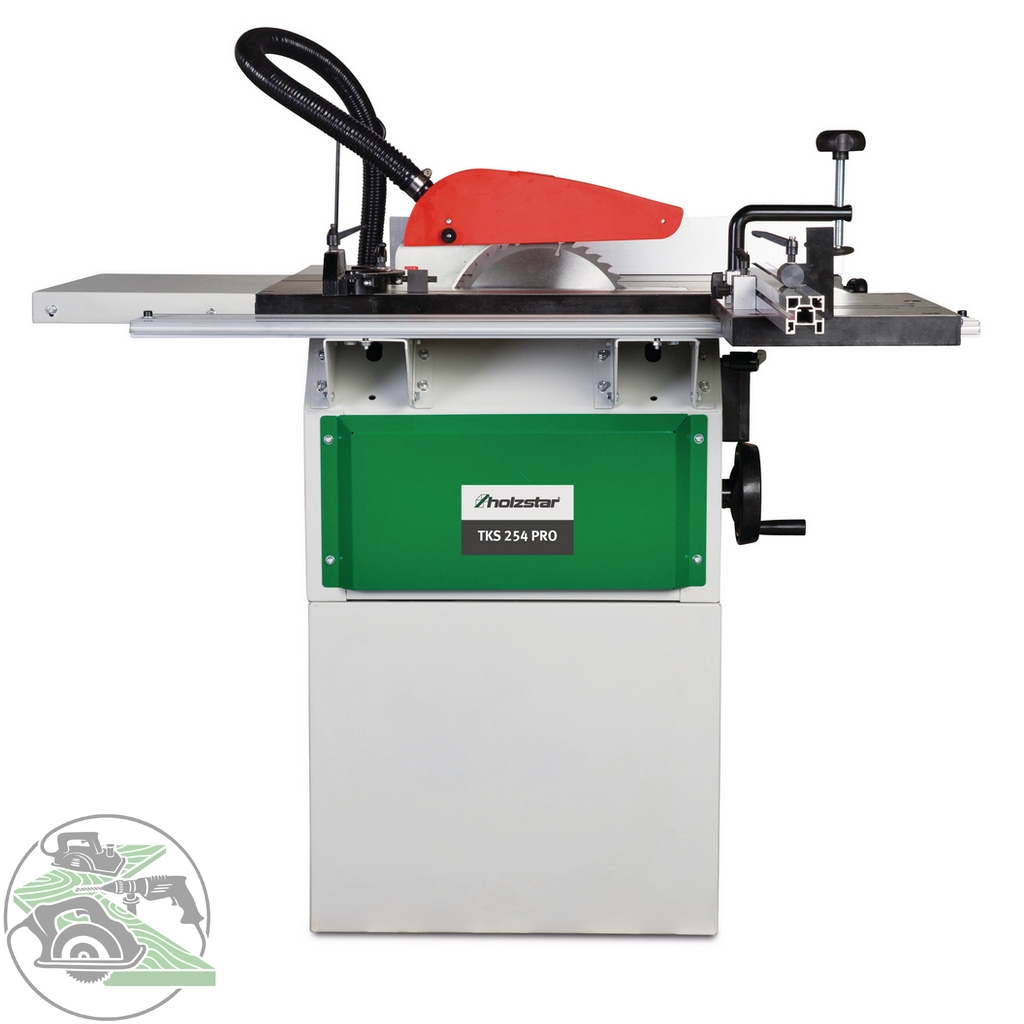

Description
- NEW -
- Large-dimensioned steel machine table, galvanised as standard against
Corrosion
- Saw blade swivelling from 0° to 45°, precise, accurate to the degree and convenient
Adjustable via handwheel and scale
- Large central suction connection Ø 100 mm
- The saw blade height is also adjusted via a handwheel from the
Operator front from
- The stable suspension of the saw unit at the front and rear enables
Precise cuts
- Equipped with a powerful motor and thermal overload protection
- Incl. saw blade protection bonnet with integrated extraction connection
- With standard table extension
Dimensions and weights
Length (product) approx. 1430 mm
Height (product) approx. 1030 mm
Width/depth (product) approx. 1000 mm
Weight (net) approx. 131 kg
Suction connection
Suction nozzle diameter 100 mm
Suction nozzle diameter saw blade guard 30 mm
Electrical data
Supply voltage 400 V
Total output 2.1 kW
Mains frequency 50 Hz
Total connected load 3.5 A
Drive motor power 1.5 kW
Motor speed 2800 min¯¹
Input power 2.0 kW
Sliding carriage and table
Format slide length 400 mm
Table width 480 mm
Format slide width 250 mm
Table height 835 mm
Table length 720 mm
Noise emission
Sound pressure level 83 dB(A)
Circular saw unit
Cutting width with rip fence 610 mm
Max. Cutting height -45° 54 mm
Max. Cutting width to the left of the saw blade 550 mm
Saw blade diameter 254 mm
Saw blade inclination 90 - -45°
Saw blade speed 4000 min¯¹
Max. Cutting height 90° 80 mm
SCOPE OF DELIVERY
Substructure
Sliding table
Table extension
Rip fence
Saw blade 254 x 30 x 3.0 mm Z40
Saw blade guard with suction hose
