Description
- NEW -

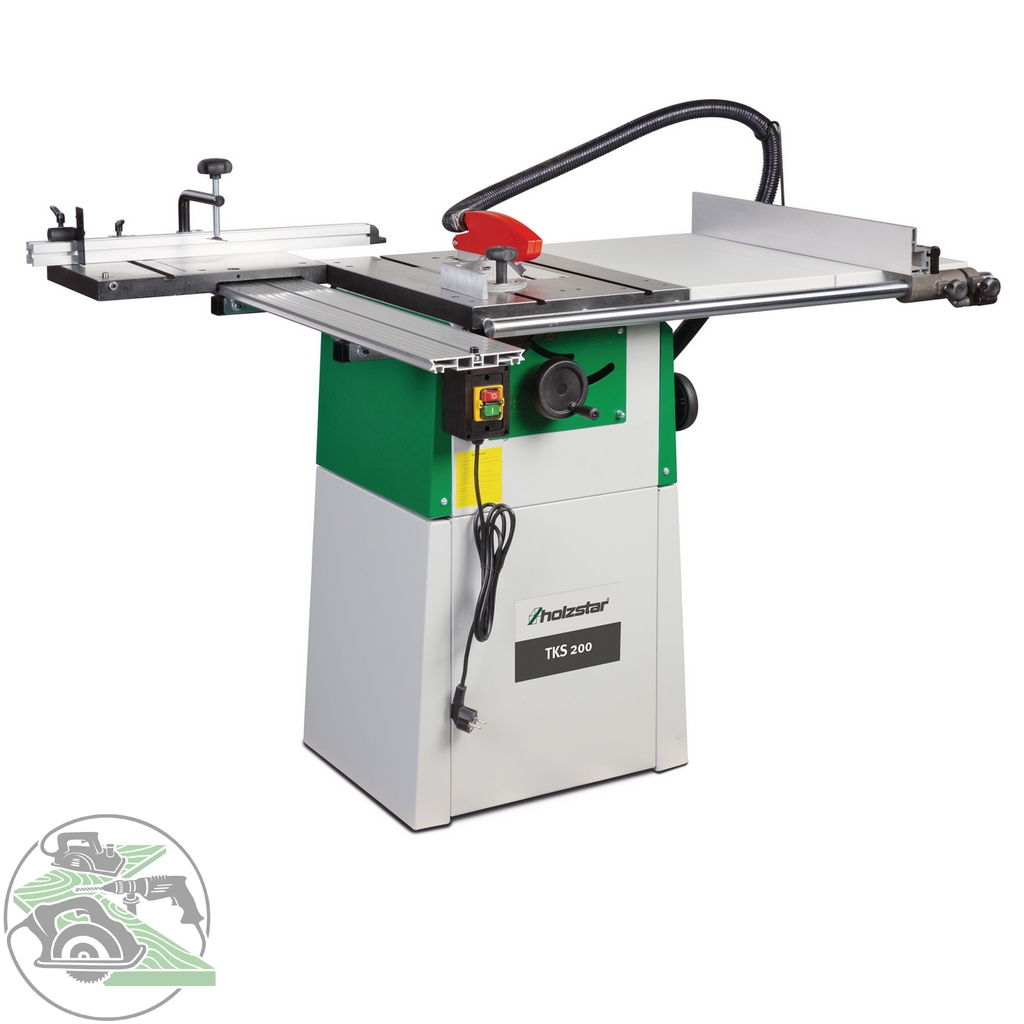

DIY machine with maximum cutting depth of 60 mm
Top price-performance ratio
- Large machine table made of steel, galvanised as standard
against corrosion
- Table extension as standard
- Saw blade swivelling from 90° to -45° to the left,
Precise, accurate to the degree and conveniently adjustable via
Handwheel and scale
- Height adjustment of the saw blade via handwheel
- Stable front and rear suspension of the saw unit
rear enables precise cuts
- Powerful motor with thermal
Equipped with overload protection
- Large central suction connection Ø 100 mm
- Saw blade guard with suction connection
Scope of delivery:
- Substructure
- Sliding table
- Rip fence
- Angle stop
- Saw blade guard with suction hose
- Table extension
- Saw blade 200 x 30 x 2.8 mm Z18
Technical data:
Cutting width with rip fence 705 mm
Max. Cutting width to the left of the saw blade 635 mm
Saw blade inclination 45 - 90 degrees
Max. Cutting height 90° 60 mm
Max. Cutting height 45° 48 mm
Diameter (main) saw blade 200 mm
Speed (main) saw blade 4750 min-1
Format slide length 400 mm
Format slide width 250 mm
Table length 530 mm
Table width 400 mm
Table height 870 mm
Drive motor power 0.75 kW
Input power 1.1 kW
Diameter of bottom suction nozzle 100 mm
Top suction nozzle diameter 30 mm
Supply voltage 230 V
Phase(s) 1 Ph
Current type AC
Mains frequency 50 Hz
Total connected load 4.6 A
Total output 1.1 kW
Length 1430 mm
Width/depth 1000 mm
Height 1030 mm
Weight (net) 80 kg
Art. No. 5902020
Storage location 97447 Gerolzhofen
