Description
-new-

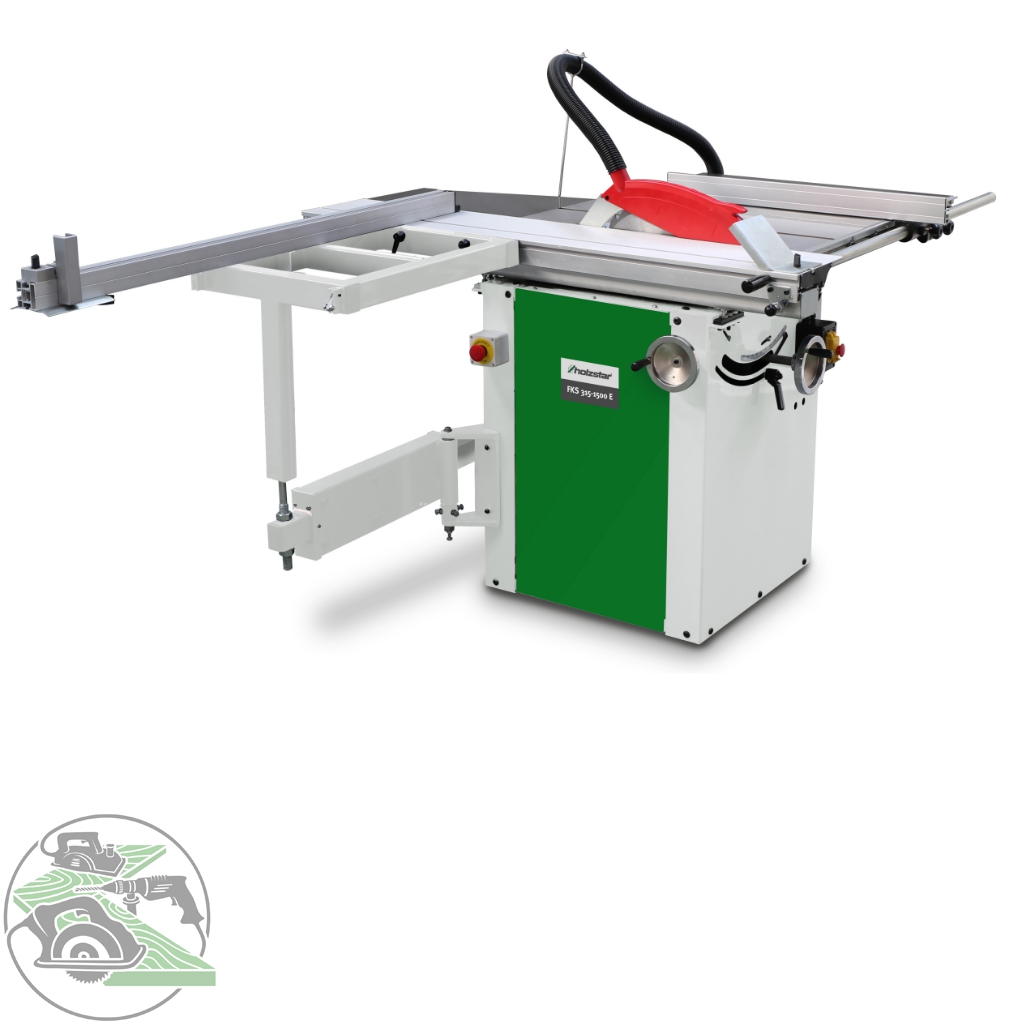

Robust and precise design with format
sliding carriage
- The grey cast iron worktable enables
Low-vibration working
- Can be swivelled from -45° to +45°, extendable
Telescopic stop
- Saw blade tilt adjustable from 0° to 45
via handwheel with scale
- The saw blade height is adjusted via a
Handwheel
- Large central suction connection D. 100 mm
- Saw blade cover with integrated
Suction connection D. 38 mm
Technical data:
Max. saw blade diameter 315 mm
Max. cutting height 90°/45° 100/75 mm
Cutting width with stop 940 mm
Saw blade inclination 0-45°
Table dimensions 350 x 760 mm
Trimming length 1370 mm
Table extension 350 x 500 mm
Speed 4250 min/1
Motor power 400 V / 50 Hz 3.0 kW
Suction nozzle diameter top 40 mm
Suction nozzle diameter bottom 100 mm
Weight 194 kg
Scope of delivery:
- Sizing slide with extension arm
- Edging shoe
- Rip fence with round bar guide
and fine adjustment
- Saw blade guard with suction hose
Item no. 590 0315
Storage location 97447 Gerolzhofen
-free loading-
