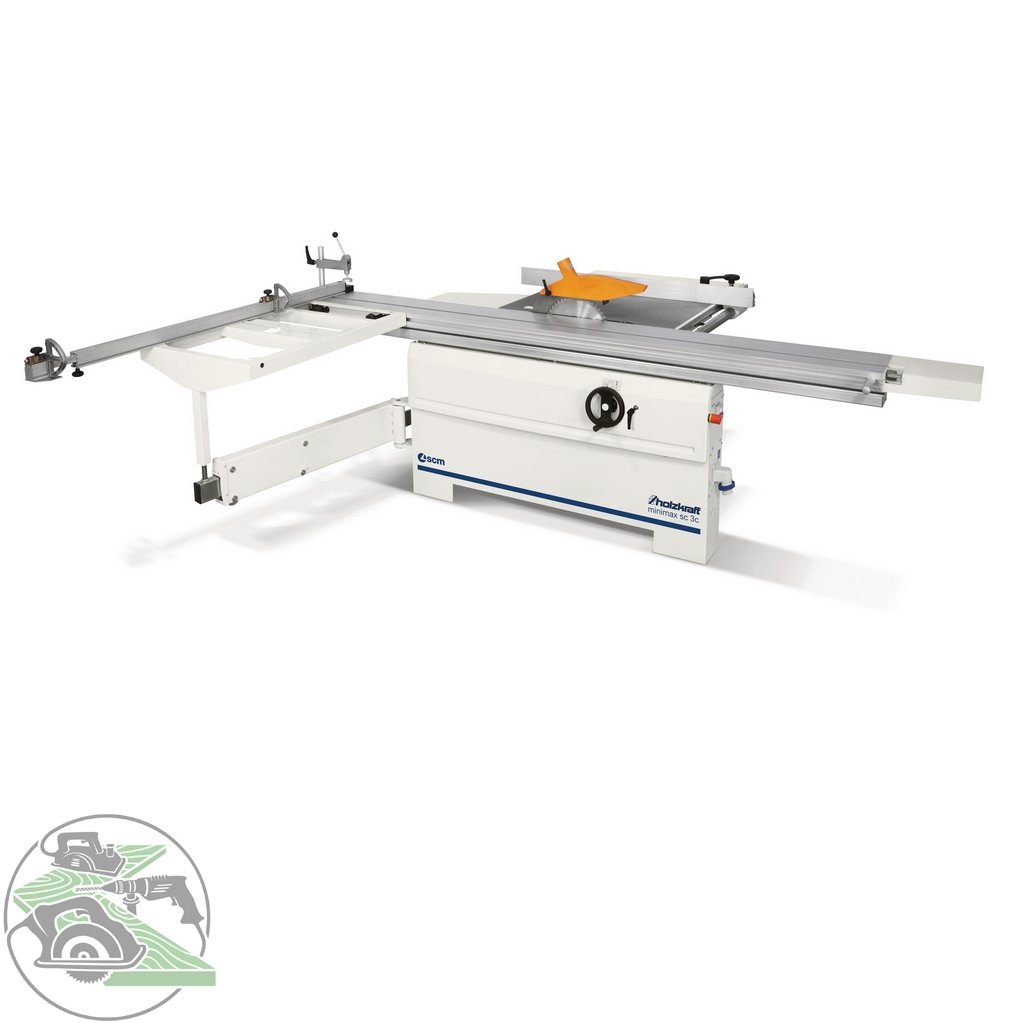

Description
- New
- Cutting plane directly on the sliding carriage
- Heavy grey cast steel construction
- Precision-guided format sliding carriage
Made of aluminium, anodised as standard
- Large table extension on telescopic arm
Guided and longitudinally adjustable
- Extendable aluminium telescopic fence,
Angle-adjustable with professional stop flaps
- Rip fence with quick clamping and fine adjustment
- Large work table made from milled grey cast iron
remains permanently flat
- The standard table extension and table extension
lengthening make it easy to work with larger
workpieces
- Smooth running and precise cuts
- Equipped with a powerful three-phase motor
- The large-dimensioned sawing unit made of
Grey cast iron is double-fixed to the cast iron table and is
a guarantee for stability, precision, smooth running and
Long service life
- Maximum cutting height is also achieved with the
Scoring unit reached
Made in Italy
Equipment details:
Double cradle saw unit
- Large dimensions, made of steel/grey cast iron
- Close to the saw blade, mounted on both sides
for precision, smooth running and a long service life
- Height-adjustable and tilt-adjustable up to 45° using a crank handle
- Maximum cutting height is also achieved with the
Scoring unit reached
- Also available with scoring unit
Telescopic stop
- Extendable telescopic stop up to max. 2550 mm
- Angle adjustable
- With professional stop flaps
Aluminium sliding carriage
- With proven ball contact system
- Dust and dirt resistant due to
minimum point of contact between the ball and
Trapezoidal rail
- 10-year Holzkraft guarantee on wear and tear of the
Guideways
Rip fence with round bar guide
- With fine adjustment and quick clamping
- Sturdy round rod guide made from polished
Steel with 45 mm diameter
- Can be folded down as standard for cutting large
Workpieces
Technical data:
Dimensions and weights
Weight approx. 385 kg
Dust extraction connection
Suction nozzle diameter 120 mm
Suction nozzle diameter saw blade guard 60 mm
Electrical data
Drive motor output 5.0 kW
Supply voltage 400 V
Sizing slide and table
Sizing slide length 2600 mm
Sliding table width 270 mm
Format slide height 124 mm
Table length 840 mm
Table width 560 mm
Table height 900 mm
Circular saw unit
Cutting width with rip fence 900 mm
Max. Cutting width to the left of the saw blade 2310 mm
Trimming length 2600 mm
Saw blade inclination 90 - 45 °
Max. Cutting height 90° 90 mm
Max. Cutting height 45° 63 mm
Diameter (main) saw blade 315 mm
Speed (main) saw blade 4000 min¯¹
PU 1
Scope of delivery:
Table extension and table widening
Anodised aluminium sliding table
Aluminium folding stops
Rip fence with round bar guide and
Fine adjustment
Item no. 5504326
