Description
new-
- Heavy grey cast iron work table for
low-vibration working and precise,
Straight cuts

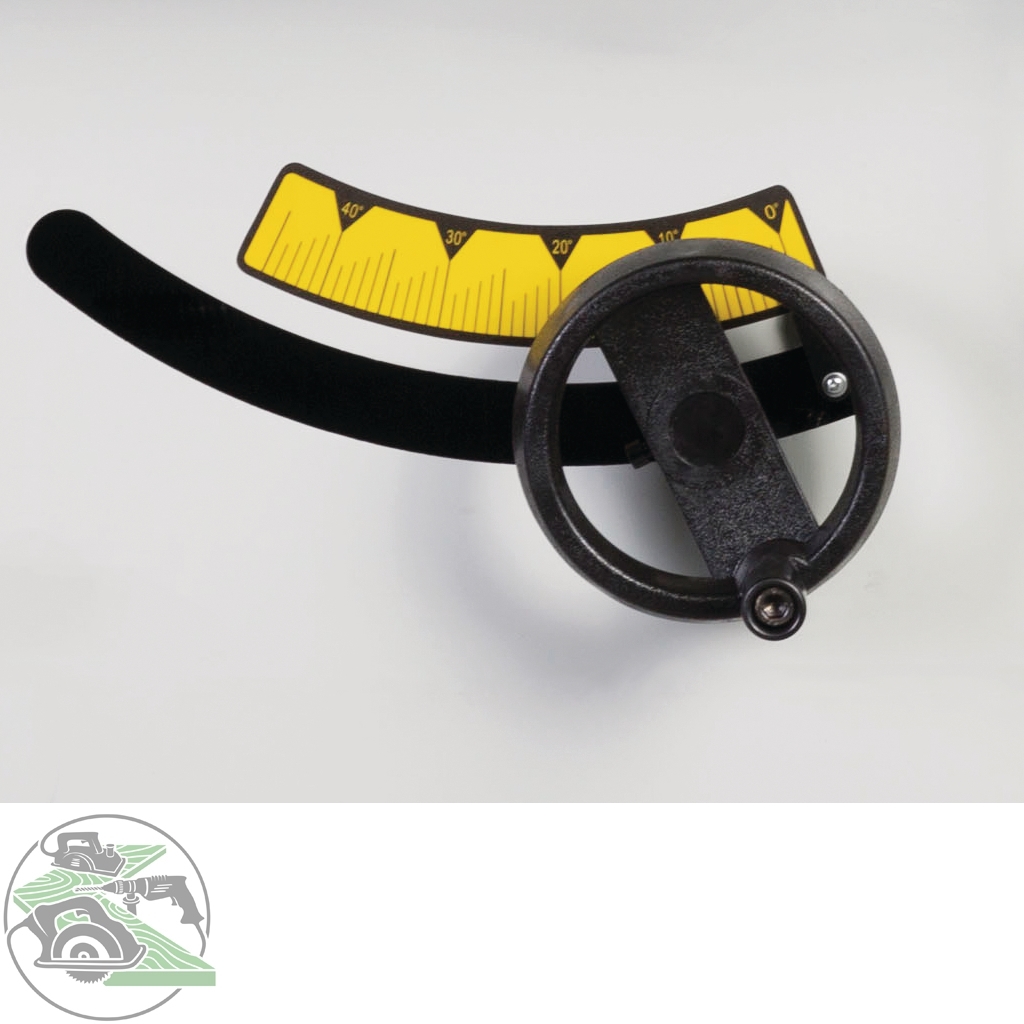

- Saw unit can be swivelled up to 45 degrees,
Adjustment via handwheel
- Cutting plane directly on the saw blade

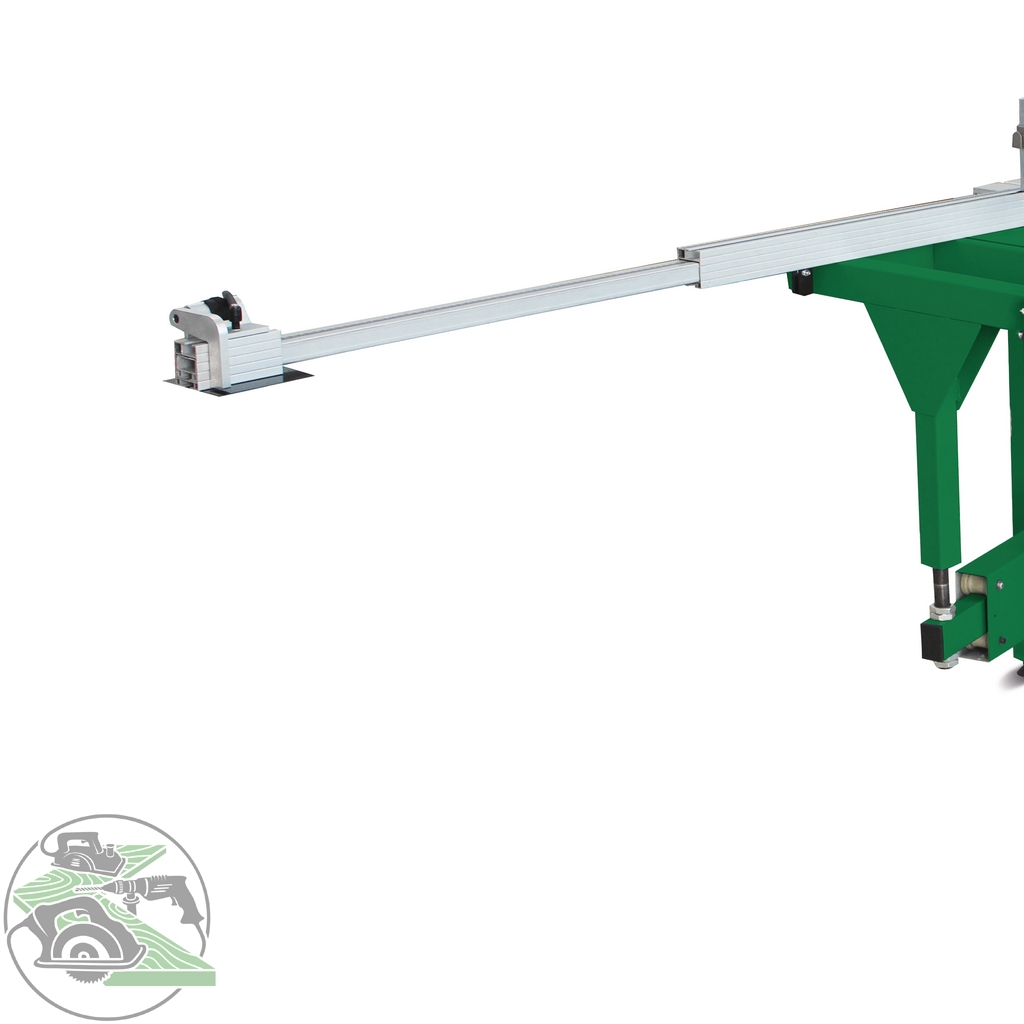

- Table bracket with extendable telescopic arm
stop and folding stop for panels and
Large workpieces
- Telescopic stop on both sides by 45 degrees
swivelling
- Aluminium parallel stop on round bar
guide with fine adjustment
- Standard table extension and
-extension enable easy working
with larger workpieces
- Large central extraction connection with
100 mm diameter
Technical data:
Dimensions and weights
Length approx. 1320 mm
Width/depth approx. 1750 mm
Height approx. 1120 mm
Weight approx. 155 kg
Suction connection
Suction nozzle diameter 100 mm
Suction nozzle diameter Saw blade diameter
protection 30 mm
Electrical data
Input power 2.0 kW
Total connected load 3.5 A
Supply voltage 400 V
Phase(s) 3 Ph
Current type AC
Mains frequency 50 Hz
Noise emission
Sound pressure level 83.7 dB(A)
Circular saw unit
Cutting width with rip fence 610 mm
Max. Cutting width to the left of the saw blade 845 mm
Trimming length 1250 mm
Saw blade inclination 90 - 45 °
Max. Cutting height 90° 80 mm
Max. Cutting height 45° 54 mm
Saw blade diameter 254 mm
Saw blade speed 4000 min¯¹
Sliding carriage and table
Trimming frame length 600 mm
Trimming frame width 460 mm
Format slide length 1320 mm
Format slide width 238 mm
Table length 790 mm
Table width 350 mm
Table height 835 mm
Scope of delivery
- Edging shoe
- Eccentric clamp
- Angle stop -45° to 45°
- Circular saw blade 254 x 30 x 3.0 mm Z40
