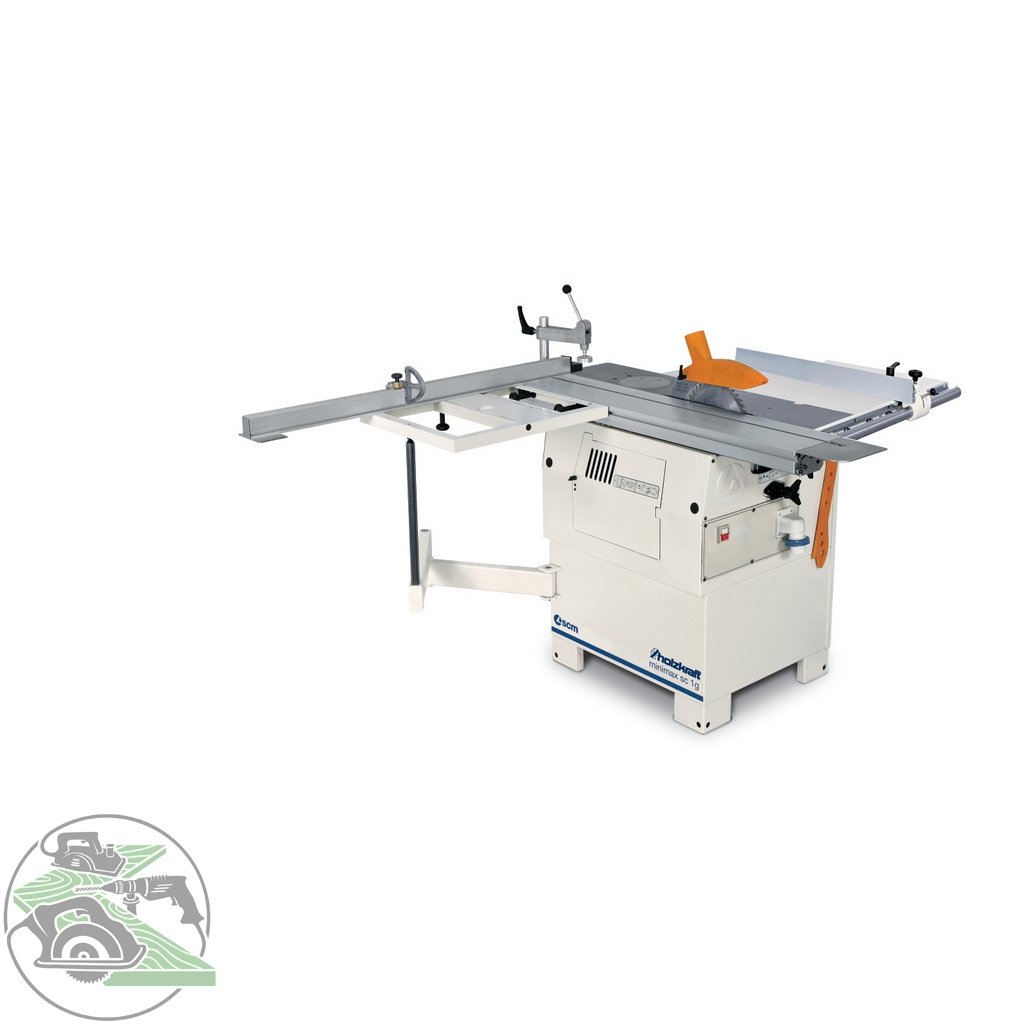

Description
The worktable made of heavily ribbed grey cast iron and
The welded steel base frame guarantees
Torsional rigidity and vibration-free working
High-quality machine at a real entry-level price
Unrivalled in this performance class:
- Format sliding carriage made of anodised aluminium for maximum
Cutting precision
- Cutting plane directly on the saw blade
- Swivelling saw blade unit from 90 - 45 °
- Table extension arm with aluminium cut-to-length stop and adjustable
Stop flap for panels and large workpieces
- Rip fence with round bar guide and fine adjustment
- Powerful motor
- Made in Europe
Dimensions and weights
Weight (net) approx. 170kg
Dust extraction connection
Suction nozzle diameter 120mm
Suction nozzle diameter saw blade guard 60mm
Transport width 680 mm
Working area 1600 mm x 2300 mm
Space requirement 2613.5 mm x 2134 mm
Please add the specified dimensions to the required space to obtain the recommended free installation area for the machine.
The dimensions take into account maximum travel distances or effective lengths
Electrical data
Supply voltage 400 V
Drive motor 1.8 kW
Phase(s) 3 Ph
Nominal operating mode drive motor S6
Current type AC
Duty cycle drive motor 40%
Mains frequency 50 Hz
Sliding carriage and table
Format sliding carriagel 1140 mm x 200 mm x 70 mm
Table 1024 mm x 224 mm x 900 mm
Circular saw unit
Cutting width with rip fence 700 mm
Max. Cutting height 90° 67mm
Max. Cutting width to the left of the saw blade 1200 mm
Max. Cutting height 45° 40mm
Trimming length 1200 mm
Saw blade diameter 250mm
Saw blade inclination 90 - 45°
Saw blade speed 3900min¯¹
Scope of delivery
Table extension
Anodised aluminium sliding table
Rip fence with round bar guide and fine adjustment
Aluminium folding fence
Eccentric clamp
Item no. 5504113
