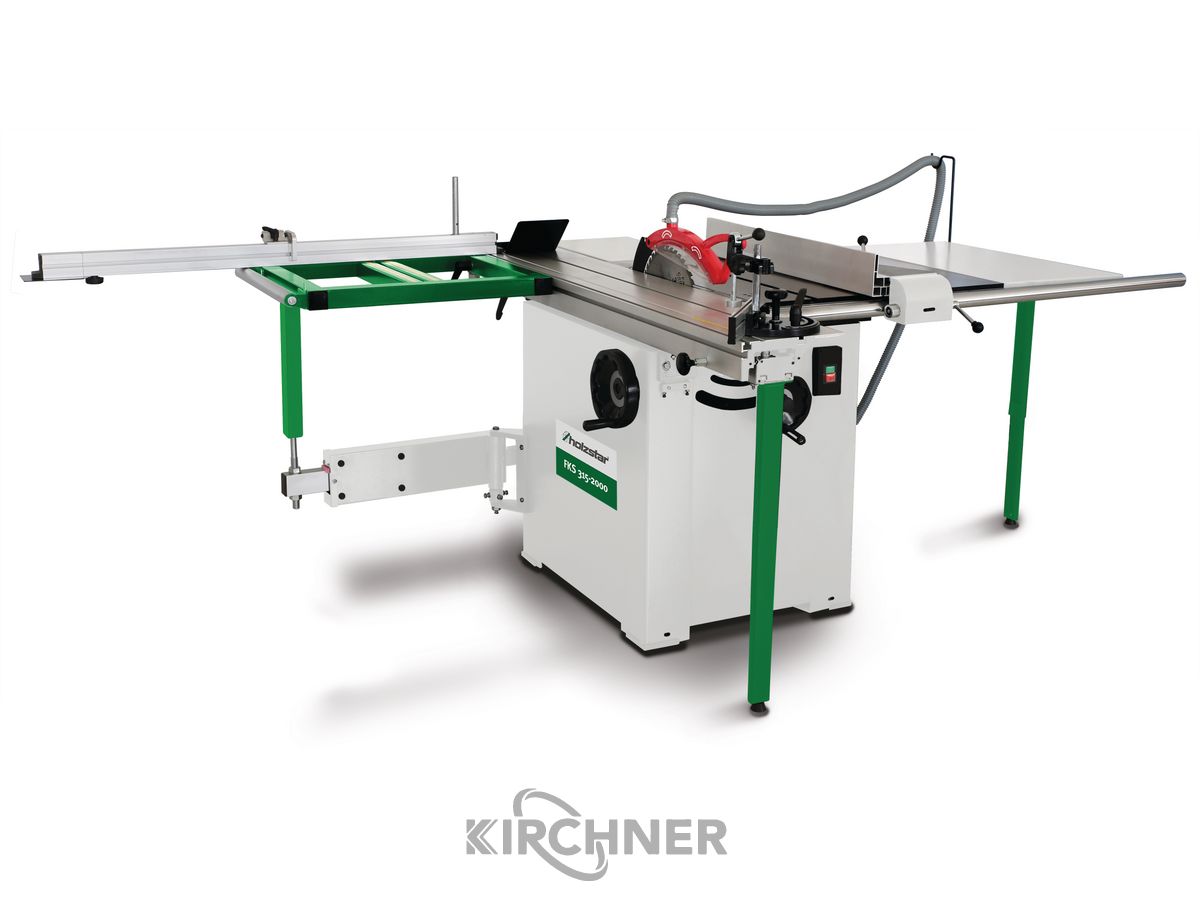

Description
-NEW-
- With scoring unit as standard
- Telescopic fence that can be swivelled from -45° to +45° with
Finely adjustable stop flap
- Robust and precise design with format sliding carriage
- The grey cast iron worktable enables low-vibration work
- Saw blade height adjustment via handwheel
- Saw blade tilt adjustable from 90 to 45° via handwheel with scale
- Stable saw unit guarantees vibration-free and precise work
- Solid cantilever table with roller and telescopic arm for maximum stability
- Mitre fence and hold-down device over the entire slide length
movable
- Large aluminium parallel stop on round rod guide with
Fine adjustment
- Powerful drive motor for constant cutting speed, even at 100
mm Cutting height
- Large-dimensioned work table and standard table extension for
Cutting widths up to 1220 m
Technical data:
Length approx. 4330 mm
Width/depth approx. 4155 mm
Height approx. 1150 mm
Weight approx. 275 kg
Suction nozzle diameter 100 mm
Suction nozzle diameter saw blade guard 38 mm
Input power 3.5 kW
Supply voltage 400 V
Mains frequency 50 Hz
Cutting width with rip fence 1220 mm
Trimming length 2000 mm
Saw blade inclination 90 - 45 °
Max. Cutting height 90° 100 mm
Max. Cutting height 45° 80 mm
Saw blade diameter 315 mm
Saw blade speed 4000 min¯¹
Table length 680 mm
Table width 580 mm
Table height 870 mm
Saw blade scoring unit diameter 90 mm
Saw blade scoring unit speed 5800 min¯
Scope of delivery:
- Sizing slide with extension arm
- Material roller on the boom
- Rip fence with round bar guide and fine adjustment
- Table extension
- Table extension
- Folding stop
- Edging shoe
- Eccentric clamp
- Scoring device
- Saw blade guard with suction hose
Storage location 97447 Gerolzhofen
-free loading-
