Description

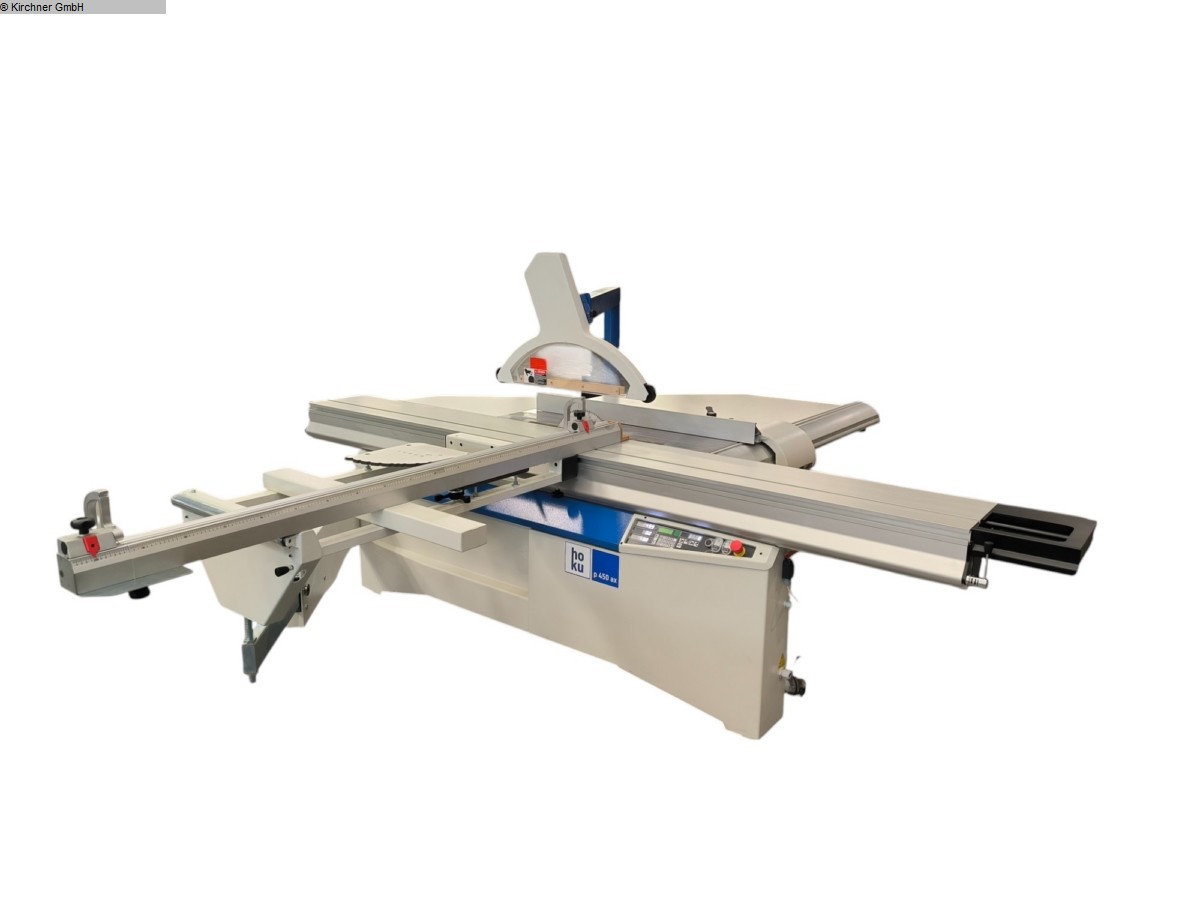

p 450 ax for panel materials incl.:
Programmable saw blade height adjustment
Programmable saw blade tilt adjustment
Programmable rip fence adjustment
Engines: Main saw: 5.5 kW / 7.5 HP
Scorer with motor: 0.55 kW / 0.75 hp
General equipment features p 450:
Sliding carriage made of anodised aluminium, incl. high-precision guide made of
Hardened and ground steel
Sliding carriage locking in any position
Saw blade guard with swivelling device
Boom with adjustable angle stop with length compensation at 10°, 15°, 22.5°,
30°, 45° and 90°
Belt adjustment for speed change from above (opening in the saw table)
Display for set saw blade speed
Electrics and safety devices according to CE standard
Technical data:
Saw blade inclination: 0° to 45°
Table dimensions: 1,030 x 680 mm
Sliding carriage dimensions: 3,200 x 350 mm
Cutting length with scoring unit: 3,350 mm
Cutting width at the rip fence: 1,100 mm
Max. Cutting height with 450 mm saw blade: 90°: 155 mm / 45°: 110 mm
3 speeds: 3,000, 3,600 & 4,200 rpm.
Motors: Main saw: 5.5 kW / 7.5 HP / 50 Hz, scoring saw: 0.55 kW / 0.75 HP
2 suction nozzles
Angle fence extendable to 3,600 mm
