Description
- NEW-

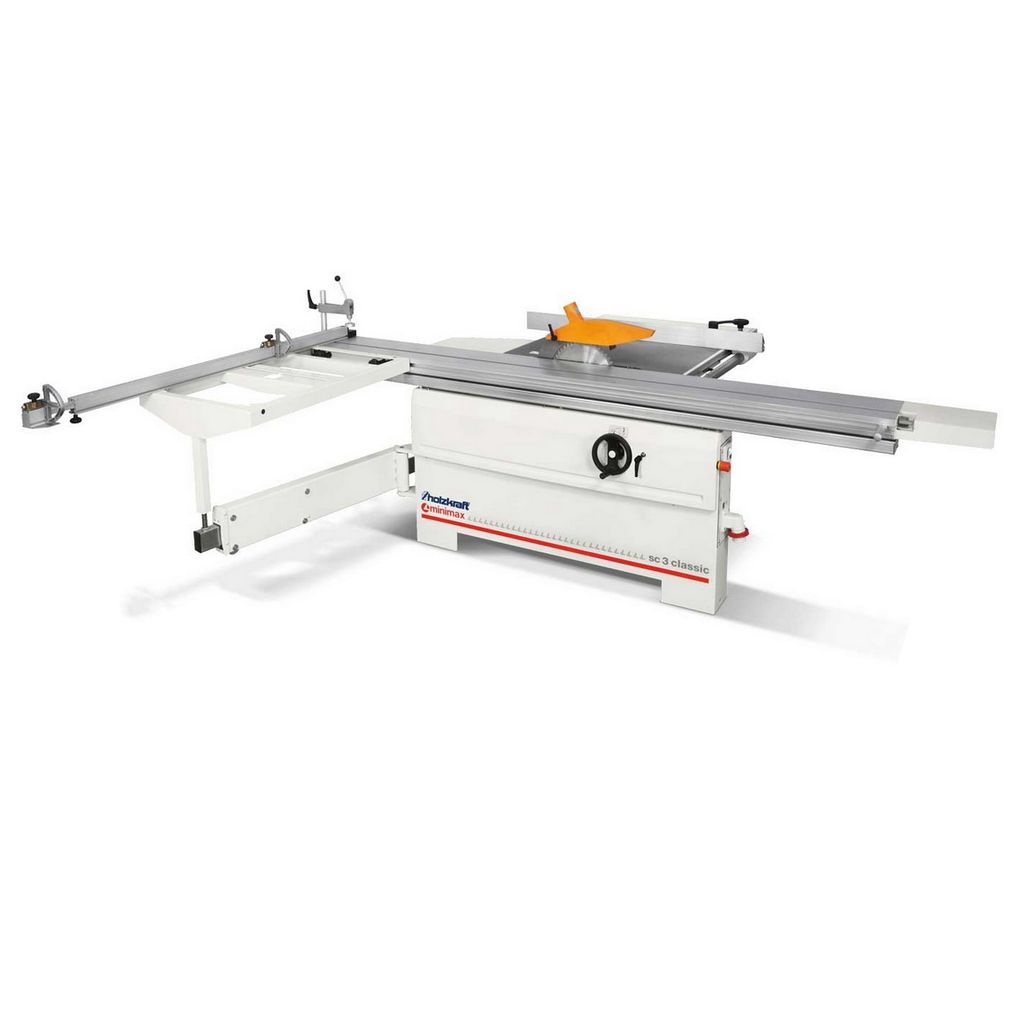

Description of the
Cutting plane directly on the saw blade
Heavy grey cast steel construction
Precision-guided format sliding carriage made of aluminium,
Anodised as standard
Large table extension arm guided on telescopic arm and
longitudinally adjustable
Extendable aluminium telescopic fence, angle-adjustable with professional
Stop flaps
Rip fence with quick clamping and fine adjustment
Large work table made of milled grey cast iron remains permanently flat
The standard table widening and table extension make it easy to work with larger workpieces
Smooth running and precise cuts
Equipped with a powerful three-phase motor
The large grey cast iron saw unit is attached twice to the cast iron table and guarantees stability, precision, smooth running and a long service life
Maximum cutting height is also achieved with the scoring unit installed
Equipment details:
Double cradle saw unit
Large dimensions, made of steel/grey cast iron
Close to the saw blade, bearings on both sides for precision, smooth running and a long service life
Height-adjustable and tilt-adjustable up to 45° using a crank handle
Maximum cutting height is also achieved with the scoring unit installed
Also available with scoring unit
Telescopic stop
Extendable telescopic stop up to max. 2550 mm
Angle adjustable
With professional stop flaps
Aluminium sliding carriage
With proven ball contact system
Insensitive to dust and dirt due to minimal contact point between ball and trapezoidal rail
10-year Holzkraft guarantee on wear of the guideways
Rip fence with round bar guide
With fine adjustment and quick clamping
Sturdy round rod guide made of polished steel with 45 mm diameter
Can be folded down as standard for cutting large workpieces
Technical data:
Dimensions and weights
Weight (net) approx. 380 kg
Suction connection
Suction nozzle diameter 120 mm
Suction nozzle diameter saw blade guard 60 mm
Machine body length 1388 mm
Working range length 1000 mm
Machine body width/depth 689 mm
Working area width/depth 2000 mm
Space requirement Length 5118 mm
Space requirement width/depth 3830 mm
Electrical data
Supply voltage 400 V
Drive motor output 5.0 kW
Phase(s) 3 Ph
Nominal operating mode drive motor S6
Current type AC
Duty cycle drive motor 40 %
Mains frequency 50 Hz
Sliding carriage and table
Sizing slide length 2250 mm
Table length 840 mm
Sliding table width 270 mm
Table width 560 mm
Format slide height 124 mm
Table height 900 mm
Circular saw unit
Cutting width with rip fence 900 mm
Max. Cutting height 90° 90 mm
Max. Cutting width to the left of the saw blade 2310 mm
Max. Cutting height 45° 63 mm
Trimming length 2250 mm
Saw blade diameter 315 mm
Saw blade inclination 90 - 45°
Saw blade speed 4000 min¯¹
Art. No. 5504323
