Description
- New

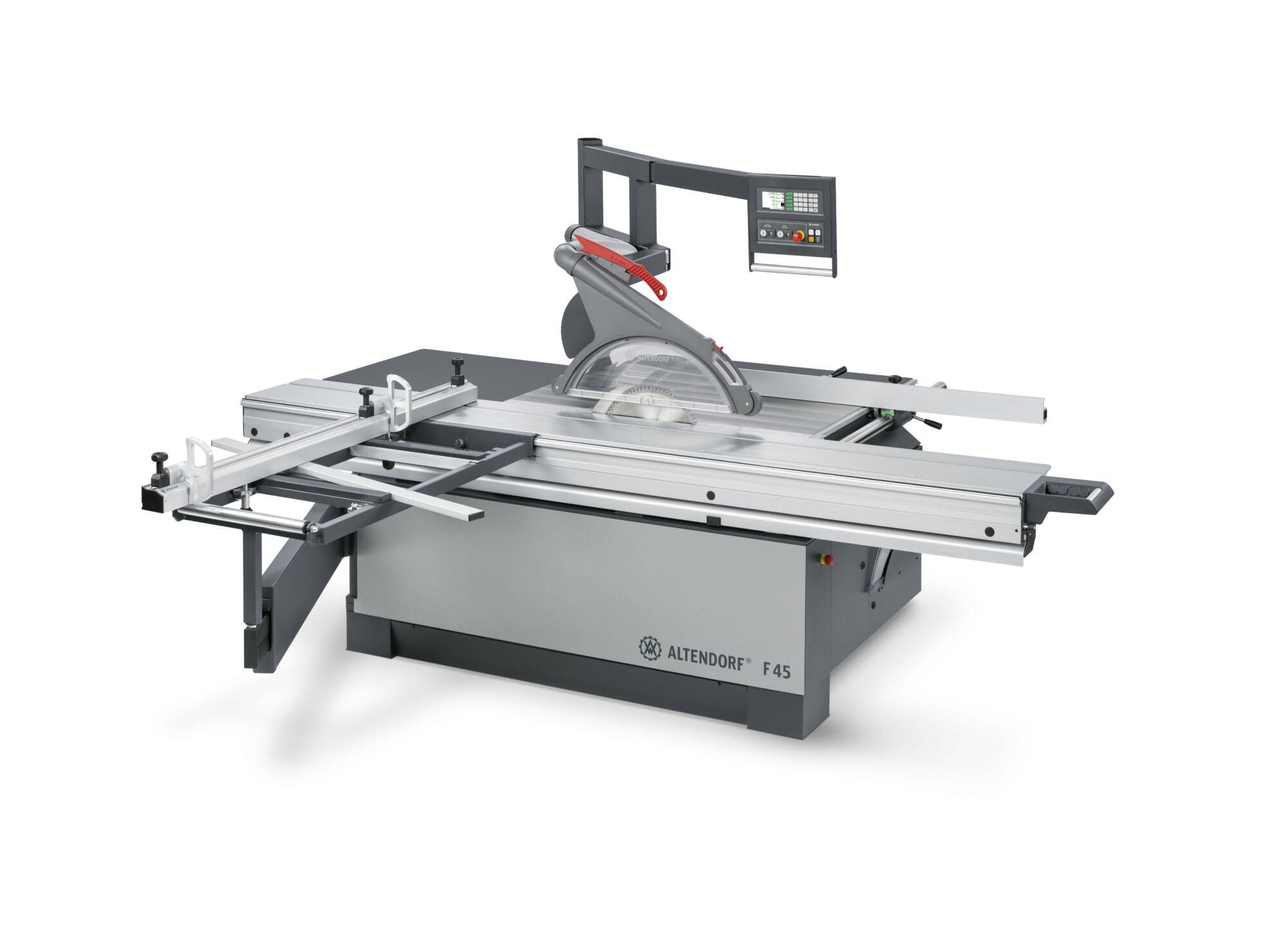

The new F 45 is a masterpiece of technology
and design. The completely redesigned
Machine stand surpasses all previous values
in the areas of torsional rigidity and
Low vibration. The smooth front and foot clearance
on the floor closer to the sliding table saw
and on the workpiece. The constructively adapted,
legendary smooth-running double roller carriage is
still the measure of all things when it comes to
precision cuts and freedom from maintenance. In addition
comes the eye-level control with which you can
the height and swivelling of the saw blade plus,
depending on the choice of control package, the speed and
call up further functions. The new, clear
Industrial design marks the exceptional position of the
Altendorf brand: With this sliding table saw
design full of character meets timeless aesthetics.
3.5″ colour screen with separate keyboard
Automatic dimensional correction on the parallel and angle stop
when swivelling the saw unit
Simple calibration of the axles
Machine diagnostics, operating hours counter,
USB interface Calling up the last measurement entry
(Back function) 99 storable editing programmes
Grooves: with automatic step-by-step positioning of the
Parallel stop
400V / 50Hz - Europe , Scale: Scale in mm
Basic equipment:
- Machine height 91 cm
Order no.: M44249
- The control panel of the F 45 is at eye level
appropriate.
This means that all axes can be conveniently controlled, all
Settings are in view.
One-handed operation of the swivelling device
is convenient from the working position in front of the machine
accessible. Another advantage: the smooth
machine front, nothing stands in your way.
Order no.: M64099
- Extended cutting height for one-sided swivelling
This option is available for one-sided swivelling
with a large extraction bonnet for a max.
saw blade diameter of 550 mm and a
saw blade projection of max. 204 mm.
In combination with a scoring unit
the max. saw blade diameter is 500 mm, or
179 mm cutting height. Only in conjunction with
at least 5.5 kW (7.5 hp) drive power.
Order no.: M64080
- max. blade diameter 500 mm
"Option
The F 45 is equipped with a safety guard with
Two bonnets for 90° and angled cuts
equipped. They are infinitely adjustable in height
self-retaining adjustable. Due to the large
The pressure roller in the inlet adjusts the
automatically adapts to the thickness of the
of the workpiece. The max. saw blade diameter
is 500 mm. This corresponds to a saw blade projection
of max. 179 mm."
Order no.: M64097
- Saw unit swivelling on one side
with 5.5 kW (7.5 hp) motor, manually adjustable
to 3/4/5000 rpm. Swivelling range: 0 - 46°,
equipped with the AKE quick-change system
for the main saw blade. The motors are specially
manufactured according to Altendorf specifications and are
optimised for use with sliding table saws. They have
20 % higher torque than commercially available
electric motors with the same power consumption.
Order no.: M51100
- 2-axis scoring unit
With electromotive height and side adjustment,
Programmable scoring blade height with rapid lowering
and quick lift, drive motor 0.75 kW (1 hp),
8200 rpm. Retrofitting only for machines with
Preparation for scoring unit possible.
Order no.: M24030
- Table top extension 840 mm consisting of
made of CDF board with HPL coating on both sides.
It is particularly scratch and impact resistant.
This prevents lasting damage to the workpiece.
avoided.
Order no.: M41010
- Double trolley, trolley length 3200 mm
The Altendorf double trolley is famous for
its smooth and precise running.
It can be locked in any position. The
large double castors, precision-manufactured from
hardened steel, hold the upper carriage in
connection to the undercarriage absolutely precisely in the
respective hard chrome-plated guide rods.
This running quality is maintained even after decades of
load and soiling are maintained. The
The wagon design is extremely torsion and
rigid multi-hollow chamber system.
The table surface is precisely planed and anodised.
As a mount for the cross slide and as an interface
A hard chrome-plated round rod is used for various accessories,
which is positively integrated into the uppercarriage.
Order no.: M34204
- Angle stop with fixed 90° position, cutting to length
up to 3200 mm
The angle stop is a daily helper for
Precision cutting of workpieces of different sizes
Lengths and formats. The backlash-free and robust
Stop flaps can be easily moved and used as
Single flap over the entire range up to
max. 3200 mm can be set. For cut-to-length dimensions
From approx. 1560 mm, the roller-supported
and sturdy telescopic runner the outer stop flap.
The entire cross slide is secured by a
Precision-manufactured, prismatic support
Accurate repetition on the round bar of the double roller carriage
clamped eccentrically. Locking is achieved with a
hand, the system is protected by a
Safety mechanism to prevent accidental
secured against slipping out. The stop can be easily
from the front to the rear without lifting
position can be moved.
Including: two single tilt stops
Order no.: M44402
- Rip fence with manual fine adjustment,
Cutting width 1000 mm
The stop is easy to adjust and thanks to
the fine adjustment very precisely manually.
The stop ensures smooth operation
via the precision-ground, hard-chrome plated
Round bar system with a diameter of
50 mm. If large panels are to be split,
the fence can be removed with a handle under the
table level can be swivelled. The stop profile
made from 3-sided machined, anodised
aluminium, can be repeated precisely via a
The eccentric handle can be fixed in a raised or flat position.
Order no.: M44421
