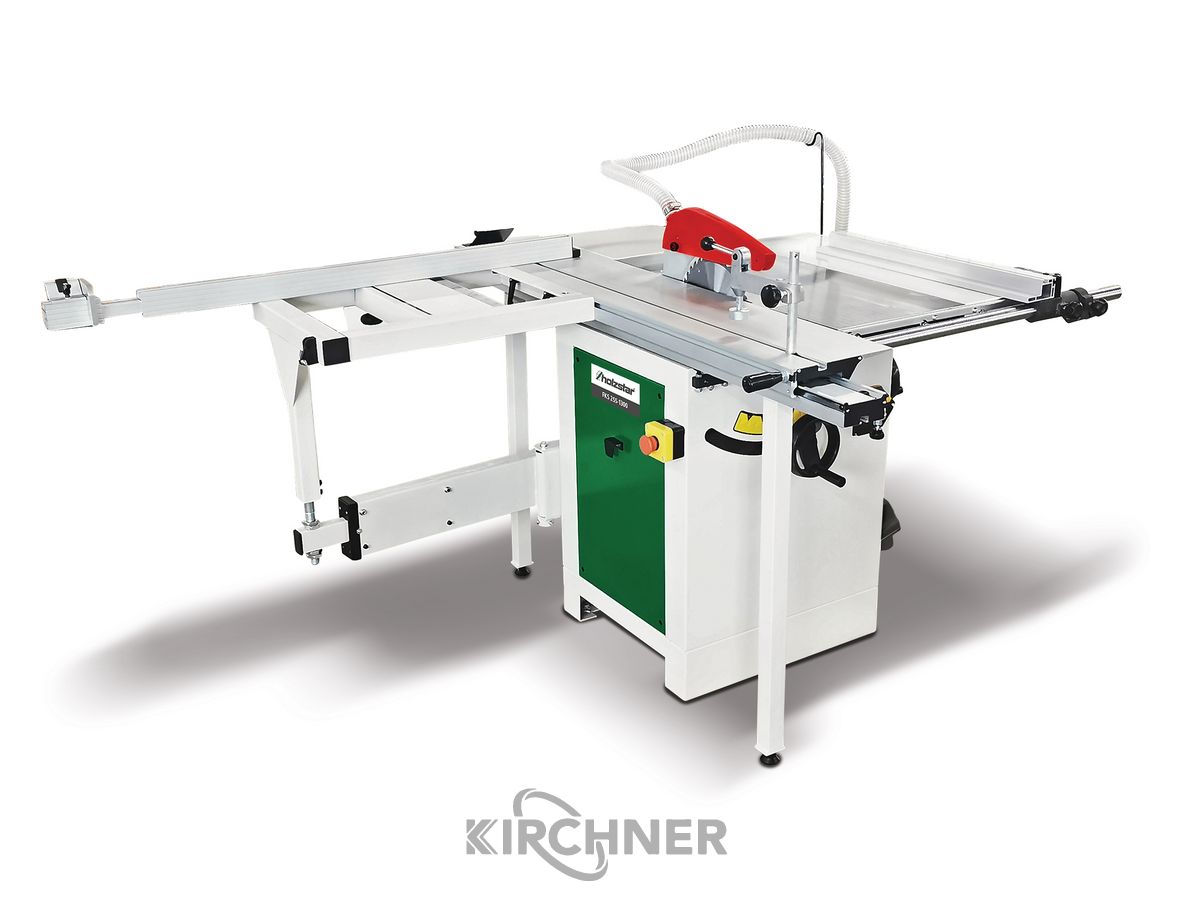

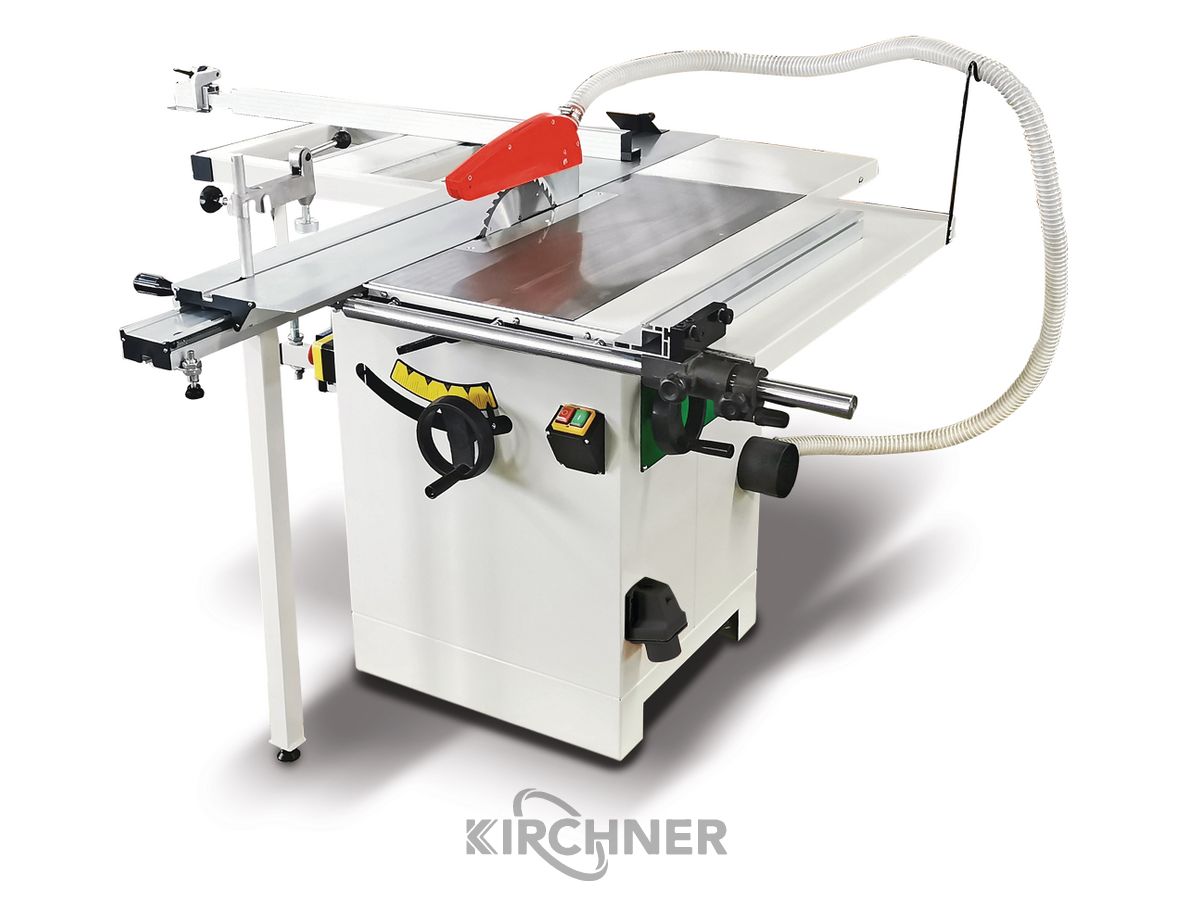

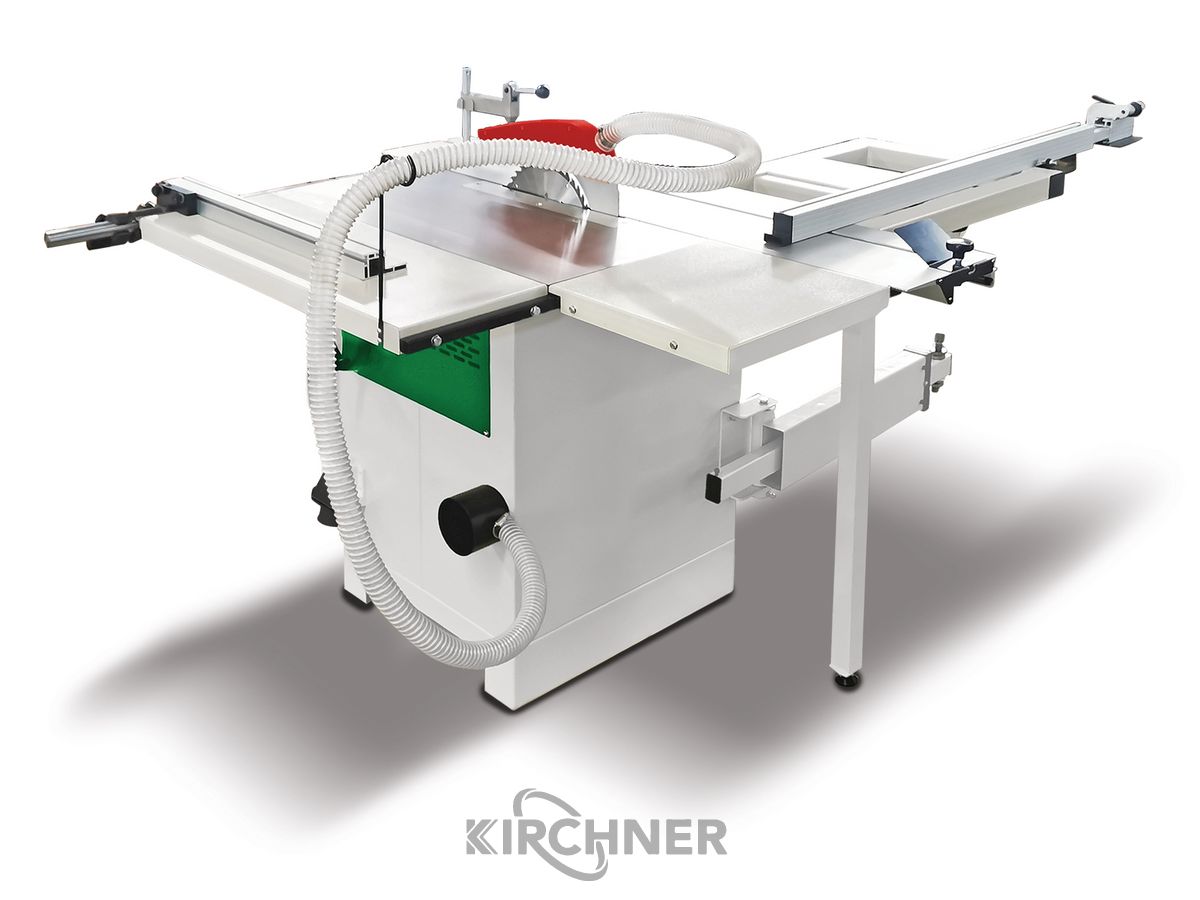

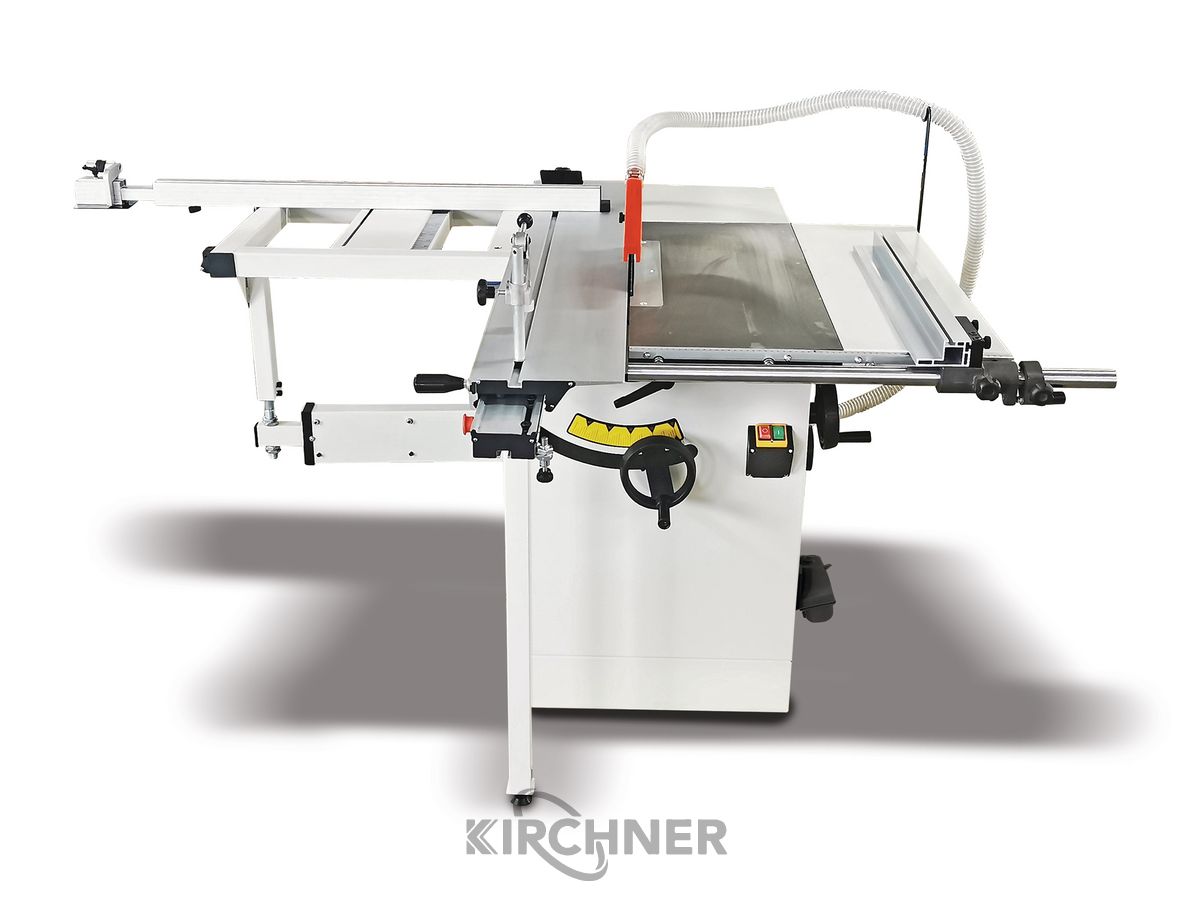

Circular saw

- NEW -

DESCRIPTION

Heavy grey cast iron work table for low-vibration work
and precise, straight cuts
Saw unit can be swivelled up to 45 degrees, adjustment via handwheel
Cutting plane directly on the saw blade
Table extension arm with extendable telescopic fence and two
Folding stops for panels and large workpieces
Telescopic fence can be swivelled by 45 degrees on both sides
Aluminium parallel stop on round rod guide with fine adjustment
Standard table widening and extension enable
Easy working with larger workpieces
Large central suction connection with 100 mm diameter

TECHNICAL DATA

Dimensions and weights
Length (product) approx. 1320 mm
Height (product) approx. 1120 mm
Width/depth (product) approx. 1750 mm
Weight (net) approx. 155 kg

Suction connection
Suction nozzle diameter 100 mm
Suction nozzle diameter saw blade guard 30 mm

Electrical data
Supply voltage 230 V
Output power 1.5 kW
Mains frequency 50 Hz
Total connected load 9.3 A
Input power 2.1 kW
Motor speed 2800 min¯¹

Sliding carriage and table
Trimming frame length 600 mm
Table length 790 mm
Trimming frame width 460 mm
Table width 350 mm
Format slide length 1320 mm
Table height 835 mm
Format slide width 238 mm

Noise emission
Sound pressure level 83.7 dB(A)

Circular saw unit
Cutting width with rip fence 610 mm
Max. Cutting height 90° 80 mm
Max. Cutting width to the left of the saw blade 845 mm
Max. Cutting height 45° 54 mm
Trimming length 1250 mm
Saw blade diameter 254 mm
Saw blade inclination 90 - 45°
Saw blade speed 4000 min¯¹

EQUIPMENT
Handle for sliding carriage
Table extension
Parallel saw fence with round bar guide
Saw blade guard
Table extension
