Description
- NEW -

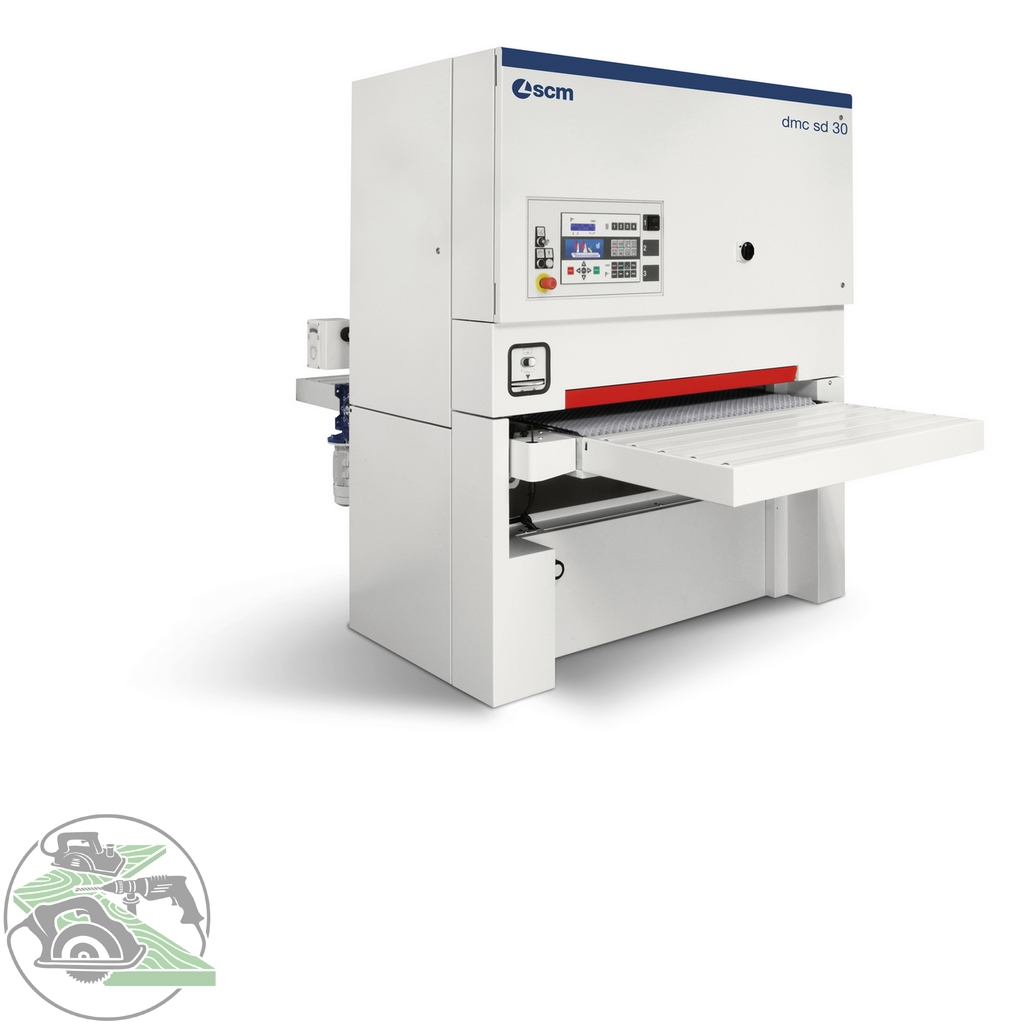

GENERAL FEATURES:
Machine frame and worktable
* Steel structure with electrical cabinet on the front of the machine
* Insertion of the sanding belts from the left side of the machine
* Motorised table adjustment
* Main motor integrated in the machine frame
Electrical equipment
* Safety microswitch for excess thickness

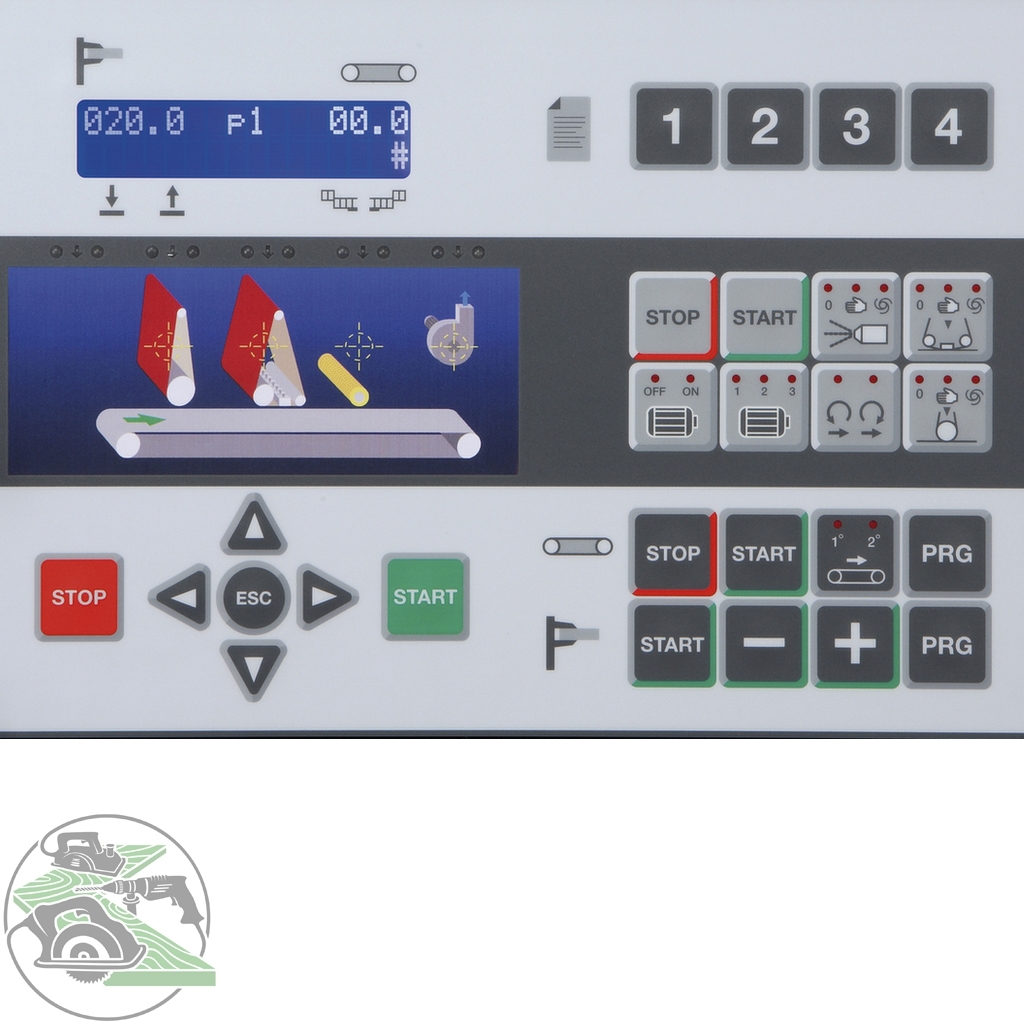

* Electromechanical keypad on the left-hand side of the machine
* Automatic star-delta starting for the main motor
* Motor protection switch for the motors
* Motors in insulation class IP 54
Emergency and protective devices
* Automatic brake for immediate stopping of the units
* Emergency stop safety edge in the workpiece infeed
* Emergency stop mushroom switch in the workpiece infeed and outfeed
* Lockable main switch
* Safety microswitch for excess thickness
* Automatic emergency shutdown of the machine in the event of
- Sanding belt breakage
- non-tensioned sanding belt
- Protection against lateral movement of the sanding belt
- Compressed air shortage
- Overload of the main motors
BASIC MACHINE STANDARD EQUIPMENT
- R120/85 rubber-coated calibration roller diam. 120 mm 85 Sh - 1st pos.
- R140/45 rubber-coated sanding drum diam. 140 mm 45 Sh - 2nd pos.
- Hard sanding pad with manual adjustment of the working height
- Single main engine 11 kW (15 hp)
- Electronic ammeter on the main motor to display the
Power consumption
- Electronic display for the working height
- Electronically controlled belt oscillation
- Rubber pressure rollers
- Flexible steel pressure rail in front of the first unit
- Rubber feed carpet 60 Sh
- Roller table with two rollers in the infeed and outfeed of the worktable
- Carpet feed with two speeds 4.5 / 9 m/min with
Geared motor
Note: the standard version with 400 Volt 50 Hz requires a three-phase power supply + neutral conductor + earth wire.
If the 400 volt power supply is without a neutral conductor, a single-phase transformer from the price list should also be ordered. The same transformer should also be ordered for a machine with a voltage higher than 400 volts, regardless of whether a neutral conductor is present or not.
The machine version with 220 or 230 volts (50 or 60 Hz) is available at extra cost (see price list).
Production code: DMC30 RCS 110
Working width mm 1,100
Min. and max. Working height mm 4 - 170
Sanding belt width mm 1,115
Sanding belt length mm 1,900
Main engine power KW (PS) 11 (15)
Gear motor KW (HP) 0.3/0.55 (0.4/0.7)
Feed speed m/min 4.5/9
Price from: € 20,129.00
Optional accessories available at extra cost
