Description
- NEW -
DESCRIPTION
- Compact and handy design for convenient use
- Variable speed range from 11500 to 24000 min¯¹
- Spindle height adjustable from 0 to 40 mm
- Large table support thanks to standard extensions on both sides
- Robust cast iron worktable
- Mitre fence and various collets included in the scope of delivery
TECHNICAL DATA
Dimensions and weights
Max. length (product) approx. 610 mm
Width/depth max. (product) approx. 360 mm
Max. height (product) approx. 311 mm
Length (product) approx. 1030 mm
Width/depth (product) approx. 360 mm
Height (product) approx. 311 mm
Weight (net) approx. 21 kg

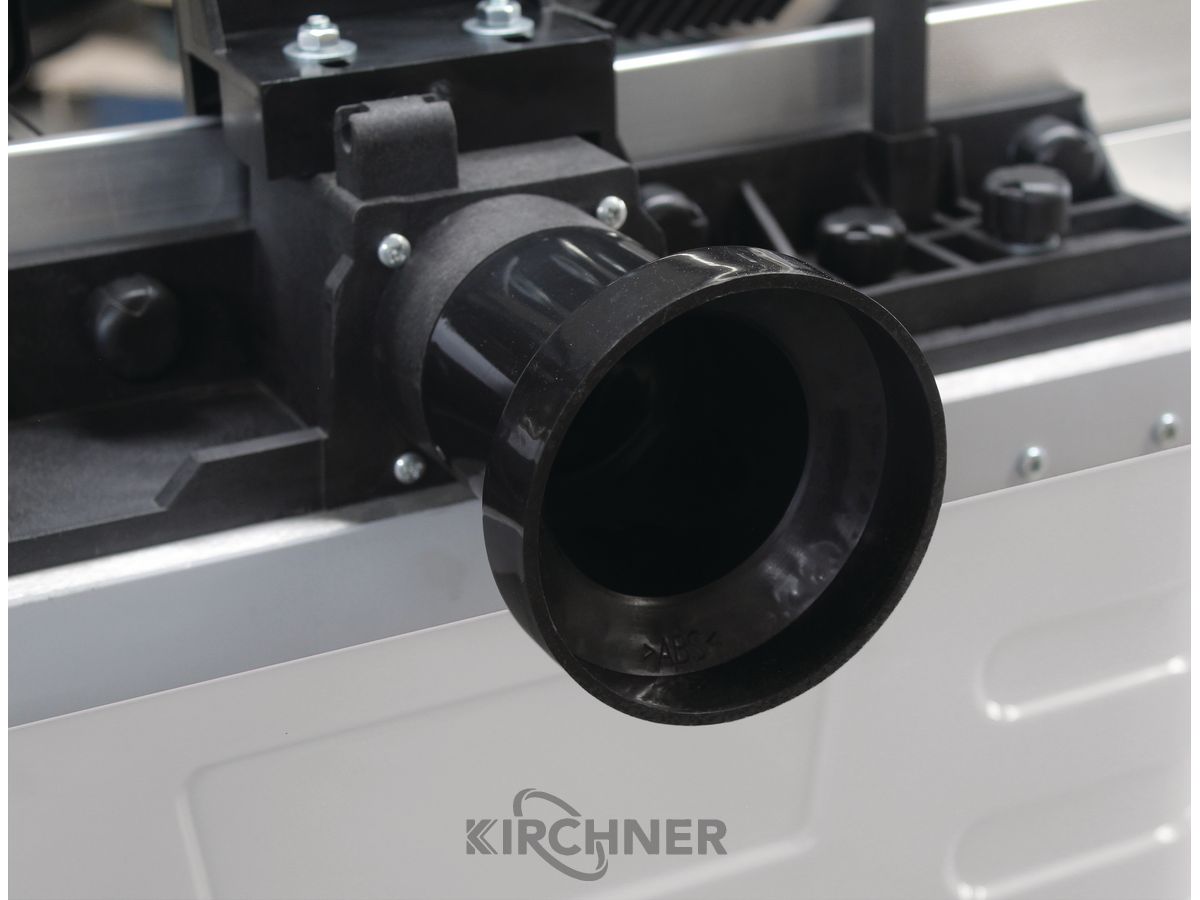

Suction connection
Suction nozzle diameter 100 mm
Work table
Worktable length 610 mm
Worktable width 360 mm
Table height 311 mm
Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Drive motor power 1.5 kW
Protection class drive motor IP 20
Nominal operating mode Drive motor S 1
Milling spindle
Milling spindle stroke 40 mm
Spindle speed(s) 11500 - 24000 min¯¹
Milling tool diameter max.
Tool diameter max. 50 mm
SCOPE OF DELIVERY
Table extensions on both sides

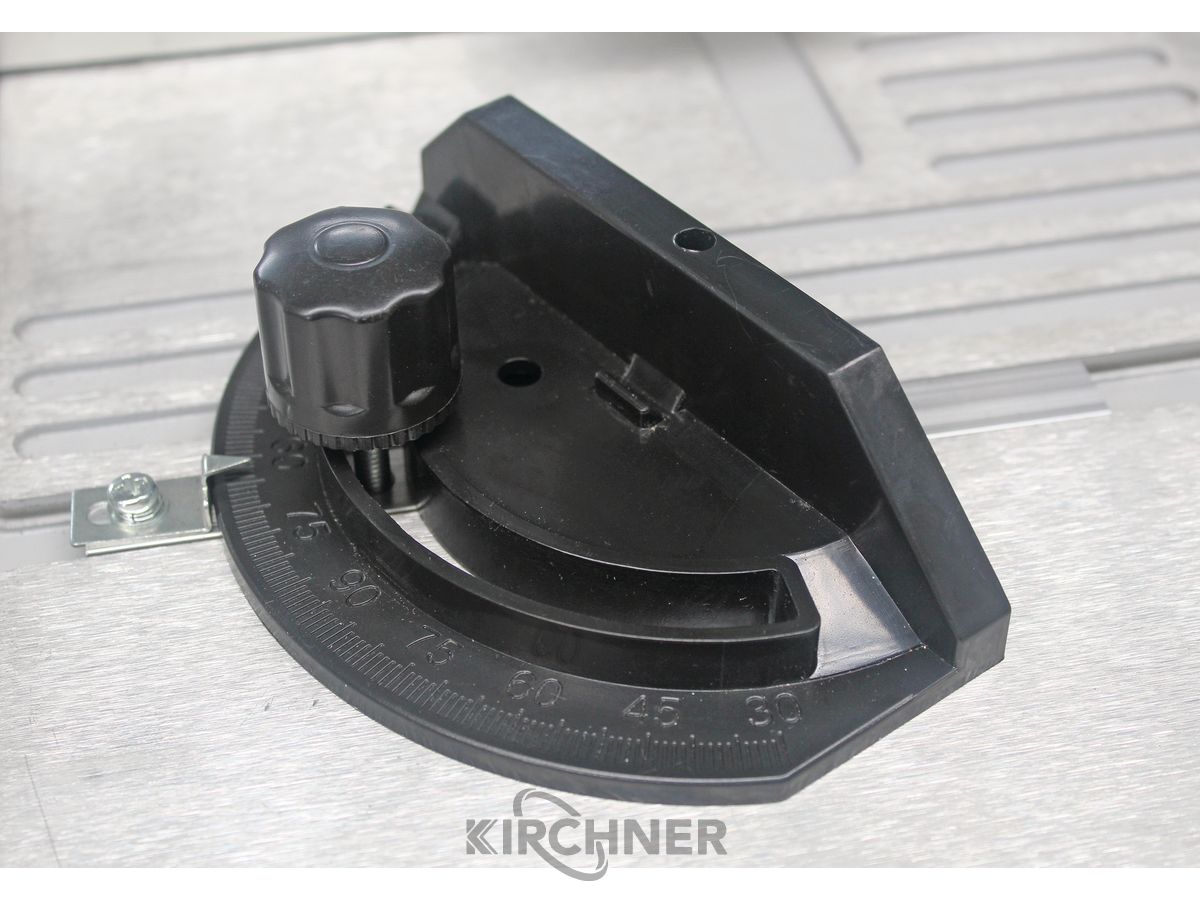

Mitre fence

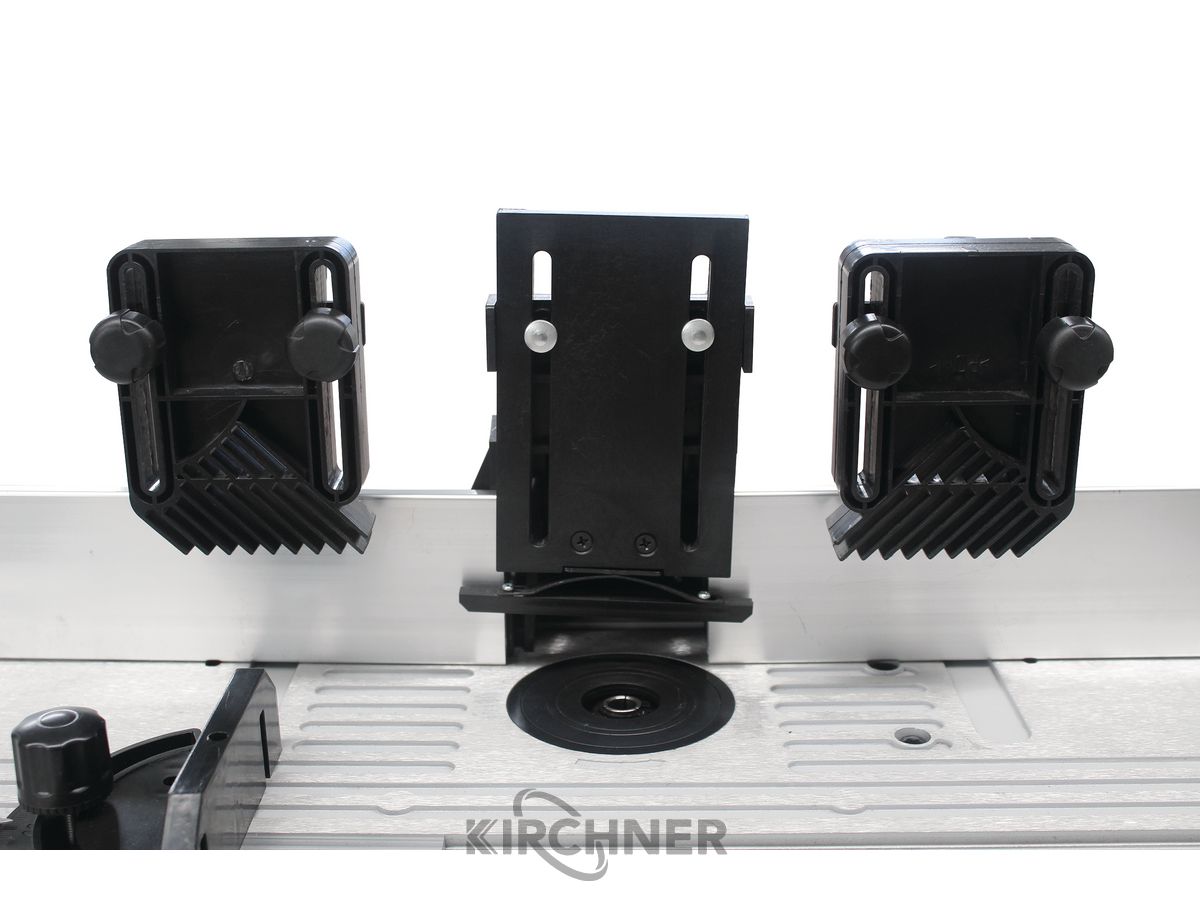

Aluminium milling fence
Collets for 6, 8, 12 mm and ½, ¼"
Assembly tool (Allen key 4 mm and 5 mm, spanner SW 19 and SW 24)
