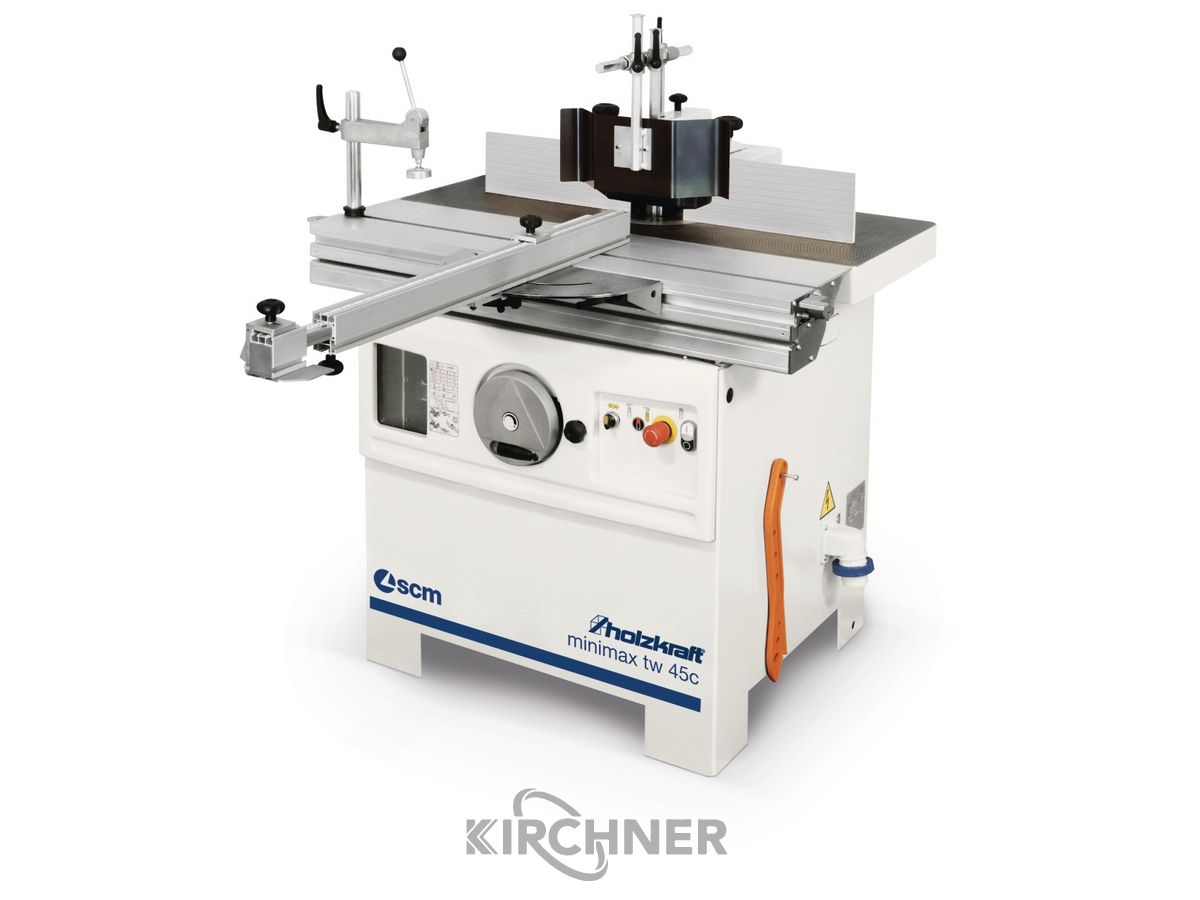

Description
- NEW -
Description of the
- Sturdy grey cast steel construction
- Milling spindle can be swivelled backwards from 0° to -45
- Three spindle speeds from 3500 - 10000 min¯¹
- Right/left rotation of the milling spindle as standard
- Large milling unit made of grey cast iron,
Attached directly to the table
- Solid and precise grey cast iron table
- Quick and easy speed change
- Powerful 5.0 kW industrial motor
- Arc milling protection bonnet as standard
Equipment details
Aluminium sliding carriage
- Equipped with thousandfold proven
Ball contact system
- torsionally rigid, highly precise, smooth-running and
problem-free in daily use
- 10-year Holzkraft guarantee on wear
of the guideways
Grey cast iron milling unit
- Attached directly to the milling table
- Milling spindle mounted high up with precision ball bearing,
This minimises the bearing load
and the longest possible service life
- 3 milling speeds from 3500 to 10000 min¯¹
Powerful motors
- Equipped with a powerful three-phase motor
Milling protection
- The milling guard comes as standard for maximum safety
with a height-adjustable guide rail
and mudguard.
Milling fence
- Precise milling fence with quick adjustment
and a fine adjustment with scale on the stop jaw
- The integrated suction connection ensures a clear view
Milling table opening
- A large milling table opening also enables
the use of larger flattening cutters
and tenoning and slotting tools
above and below the table
Arc milling protection bonnet
- Included in the scope of delivery as standard
Reversible stop jaws
- Versatile integrable stop for bridging
the tool gap
- Enables safe working even with
narrow workpieces
Technical data:
Dimensions and weights
Weight (net) approx. 290 kg
Suction connection
Suction nozzle diameter 2 x 120 mm
Work table
Worktable length 1000 mm
Sliding carriage length 1000 mm
Worktable width 435 mm
Sliding carriage width 270 mm
Table height 900 mm
Installation information
Space requirement Length 1945 mm
Machine body width/depth 710 mm
Space requirement width/depth 2220 mm
Working range length 1600 mm
Explanation Space requirement
The dimensions take into account maximum travel distances or effective lengths.
Working range width/depth 1600 mm
Machine body length 1000 mm
Explanation of work area
Please add the specified dimensions to the required space to obtain the recommended free installation area for the machine.
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
Phase(s) 3 Ph
Drive motor output 5.0 kW
Current type AC
Milling spindle
Spindle inclination 0 to -45°
Spindle speed(s) 3500/7000/10000 min¯¹
Effective length of the spindle 100 mm
Spindle mandrel diameter 30 mm
Spindle protrusion max. over table 130 mm
Milling tool diameter max.
Tool diameter max. lowerable 180 mm
Tool diameter max. tenoning 275 mm
Tool diameter max. profile milling 210 mm
Scope of delivery
Arc milling protection bonnet
Anodised aluminium sliding carriage
Telescopic mitre fence
Aluminium stop jaws
Item no. 5502045
