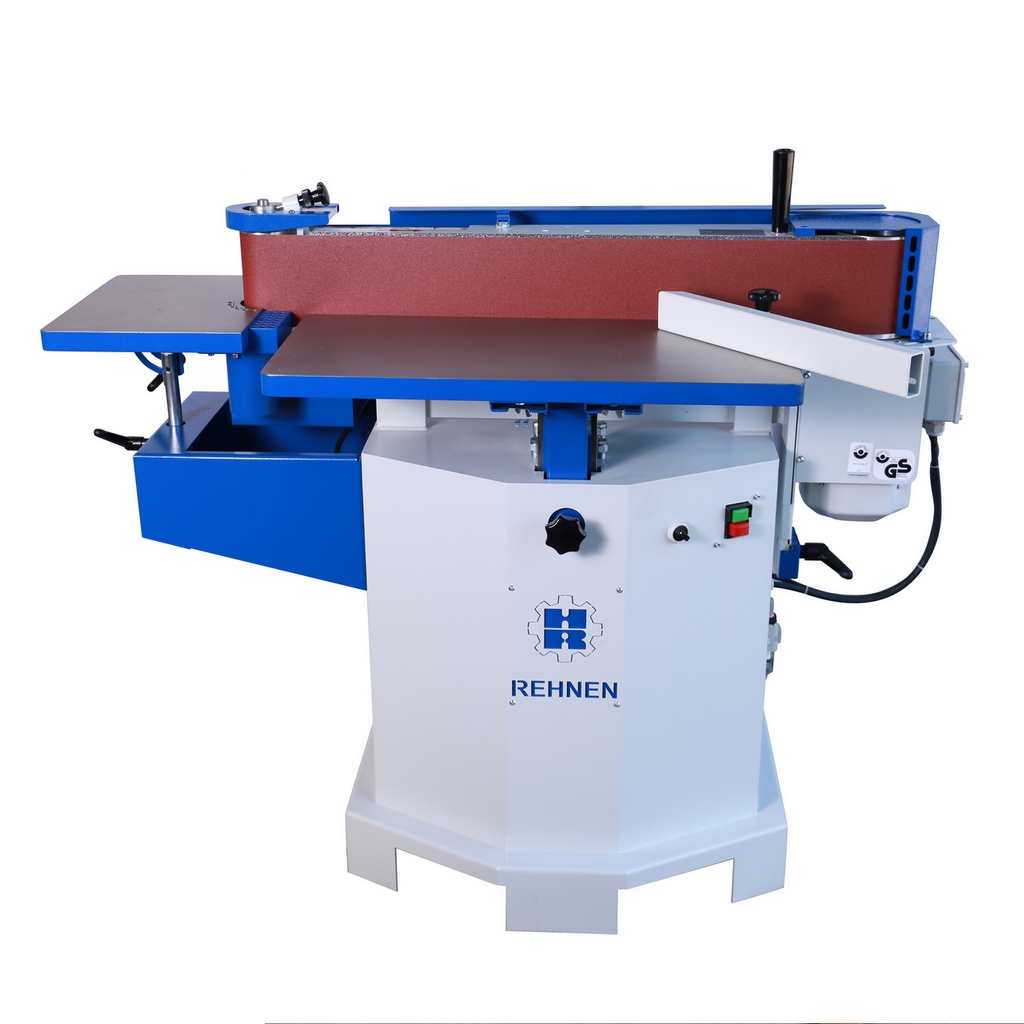

Special edge sanding machine Rehnen Junior R1

-New-

The upper part in heavy cast design with
built-in three-phase motor 380 V, 2.2kW,
2850 rpm,
The machine is equipped with a built-in
Switch-plug combination,
Motor protection switch and main switch in accordance with VDE,
Dimensions of the rear wall of the sanding belt: 850 x 150 mm,
Steel table height adjustable by spring pressure,
Tape measure: 150 x 2280 mm,
The back of the sanding belt is covered with a graphite sliding surface,
the machine is supplied with an assortment of sanding belts,
Also included in the scope of delivery is a bracket and
Mitre fence.
The machine must be connected to a
Central extraction system with an air velocity
of min. 20 m/s dust-tested (GS) Holz-BG-Stuttgart.

Technical data:
Motor power: 2.2 kW
Sanding belt size: 150 x 2280 mm
Sanding belt speed: 22 m/sec.
Table size: 750 x 350 mm
Space requirement: 1000 x 800 mm
Weight: from 180 kg
Suction dia.: 100 mm
Item no. 1050-500000

incl.:
- swivelling 90-180 °
Item no. 1050-590010
- Band oscillation Part no. 1050-590020
- Support table on the deflection pulley
Item no. 1050-590040
- Pneumatic belt tensioner
Item no. 1050-590155
