Description
Stock sale
Year of construction 2022
Description:
- Sanding unit can be swivelled by handwheel
- The welded steel machine stand guarantees high torsional rigidity and vibration-free operation
- Oscillating sanding belt with separate geared motor for better sanding results
- Oscillation optionally switchable
- Sanding pad with graphite coating for a longer service life of the sanding belt
- Height-adjustable sanding table to utilise the entire sanding belt width
- Additional table with suction openings for sanding radii on the rubberised deflection roller

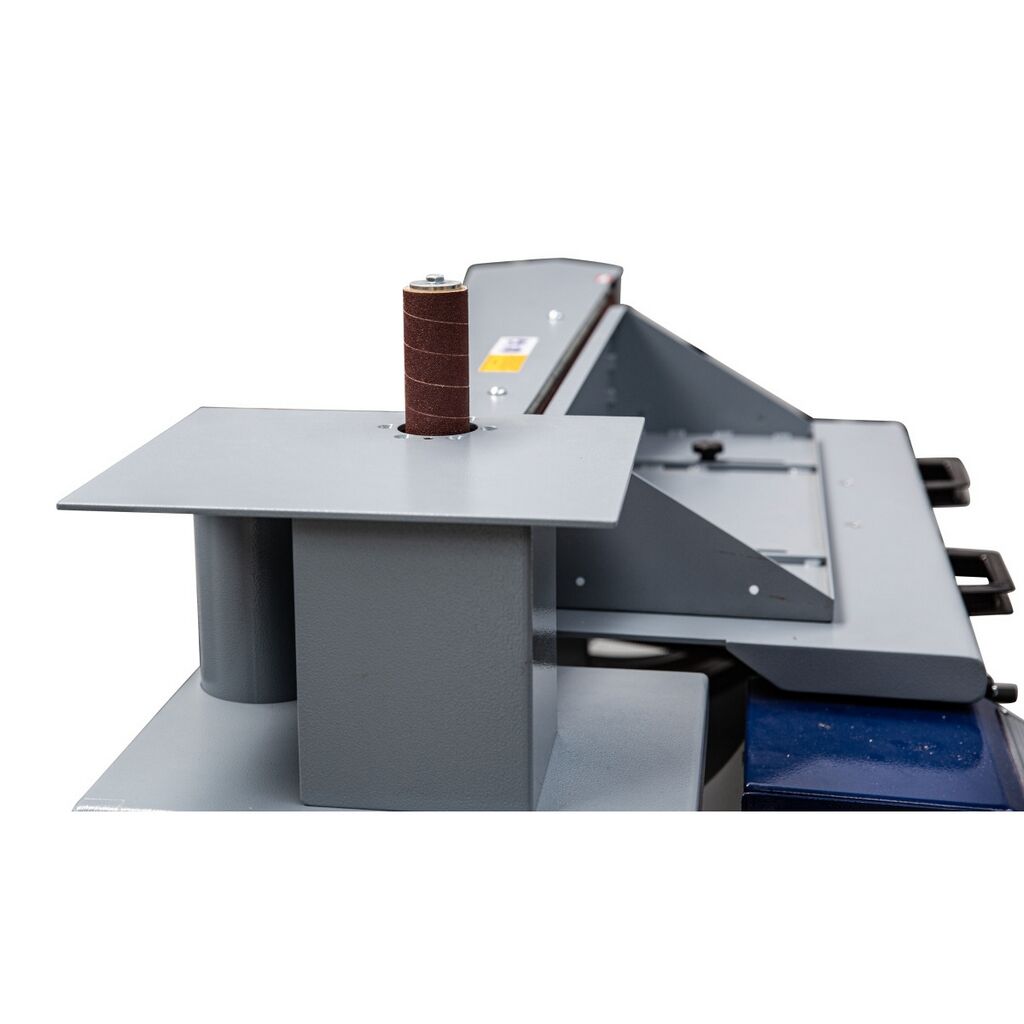

- Abrasive sleeve device with attachable work table
- The spring-loaded belt tensioner automatically compensates for belt length differences
TECHNICAL DATA
Dimensions and weights
Length (product) approx. 1700 mm
Width/depth (product) approx. 1,000 mm
Height (product) approx. 1150 mm
Weight (net) approx. 250 kg
Drive power
Oscillation motor power 0.11 kW
Suction connection
Suction nozzle diameter 2 x 100 mm
Work table(s)
Worktable length 900 mm
Worktable width 360 mm
Work table height adjustment 110 mm
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
Sanding unit
Sanding belt length 2580 mm
Sanding belt width 150 mm
Belt speed(s) 14 m/s
Oscillation stroke 15 mm
Sanding surface length 800 mm
Sanding surface width 150 mm
Sanding height max. 150 mm
Swivelling sanding unit 0 - 90°
SCOPE OF DELIVERY
1x sanding belt K100
5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm
6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm
On-board tool
Mitre fence
