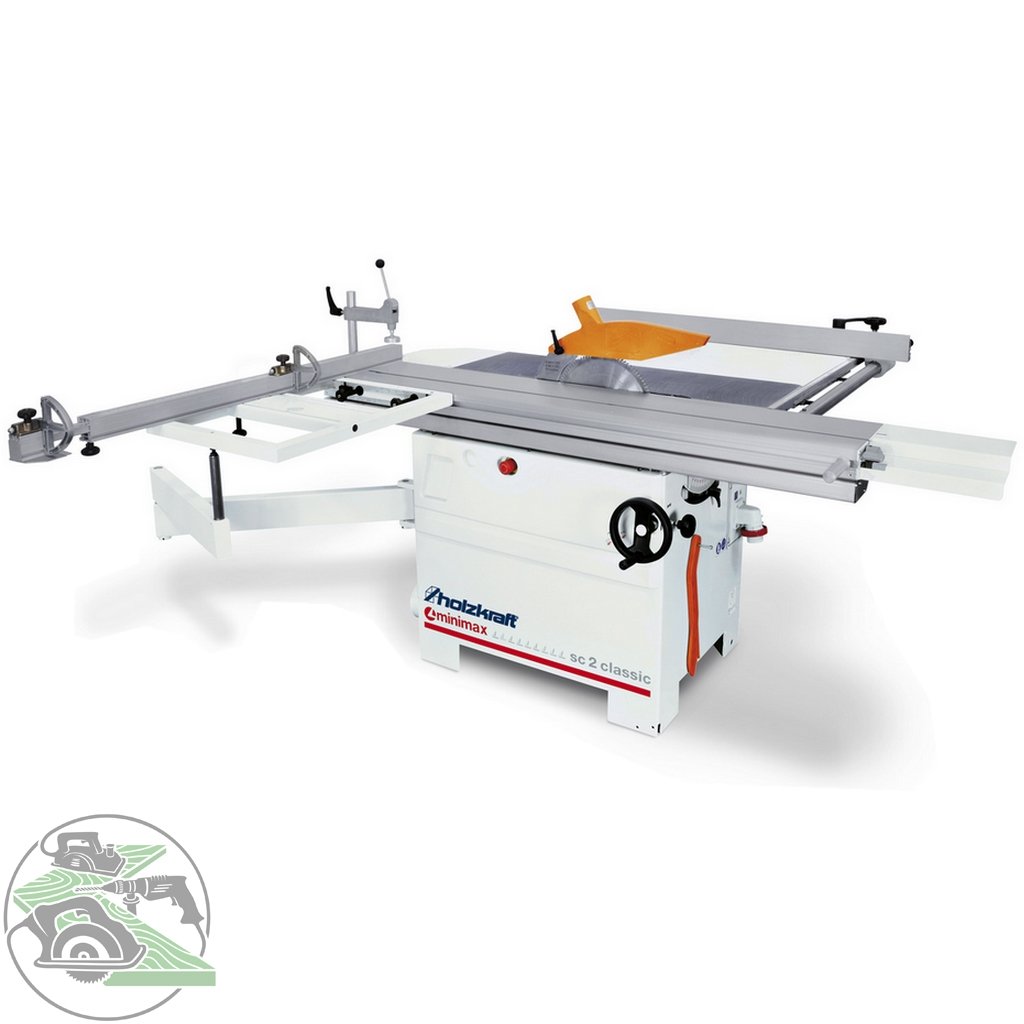

Description
- NEW -
- Cutting plane directly on the saw blade
- Large grey cast iron sawing unit with double cast iron table
fastened - guaranteeing stability, precision, smooth running and a long service life
- Precision-guided format sliding carriage made of aluminium, as standard
anodised
- 10-year HOLZKRAFT guarantee on wear of the guideways of the
Sliding carriage
- Rip fence with round bar guide and fine adjustment as standard
- Large work table made from milled grey cast iron
- Smooth running and precise cuts
- Standard table widening and table extension enable
Easy working with larger workpieces
- Extendable aluminium telescopic fence with angle adjustment and
two professional folding stops
- Made in Italy
TECHNICAL DATA
Dimensions and weights
Weight (net) approx. 295 kg
Suction connection
Suction nozzle diameter 120 mm
Suction nozzle diameter saw blade guard 60 mm
Installation information
Transport width 700 mm
Machine body length 802 mm
Machine body width/depth 615 mm
Space requirement Length 3860 mm
Space requirement width/depth 2750 mm
Explanation Space requirement
The dimensions take into account maximum travel distances or effective lengths
Working range length 1000 mm
Working area width/depth 2000 mm
Explanation of work area
Please add the specified dimensions to the required space to obtain the dimensions required for
to obtain the free installation area recommended for the machine.
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
Drive motor output 4.0 kW
Nominal operating mode Drive motor S 6
Duty cycle drive motor 40 %
Sliding carriage and table
Sizing slide length 1600 mm
Sliding table width 270 mm
Format slide height 124 mm
Table length 1020 mm
Table width 325 mm
Table height 860 mm
Circular saw unit
Cutting width with rip fence 900 mm
Max. Cutting width to the left of the saw blade 1660 mm
Trimming length 1600 mm
Saw blade inclination 90 - 45°
Max. Cutting height 90° 100 mm
Max. Cutting height 45° 79 mm
Saw blade diameter 315 mm
Saw blade speed 4000 min¯¹
EQUIPMENT
Anodised aluminium sliding table
Handle for sliding carriage
Trimming frame
Parallel saw fence with round bar guide
Stops Two professional folding stops
Edging shoe
Eccentric clamp
Table extension
Table extension
Saw blade guard
