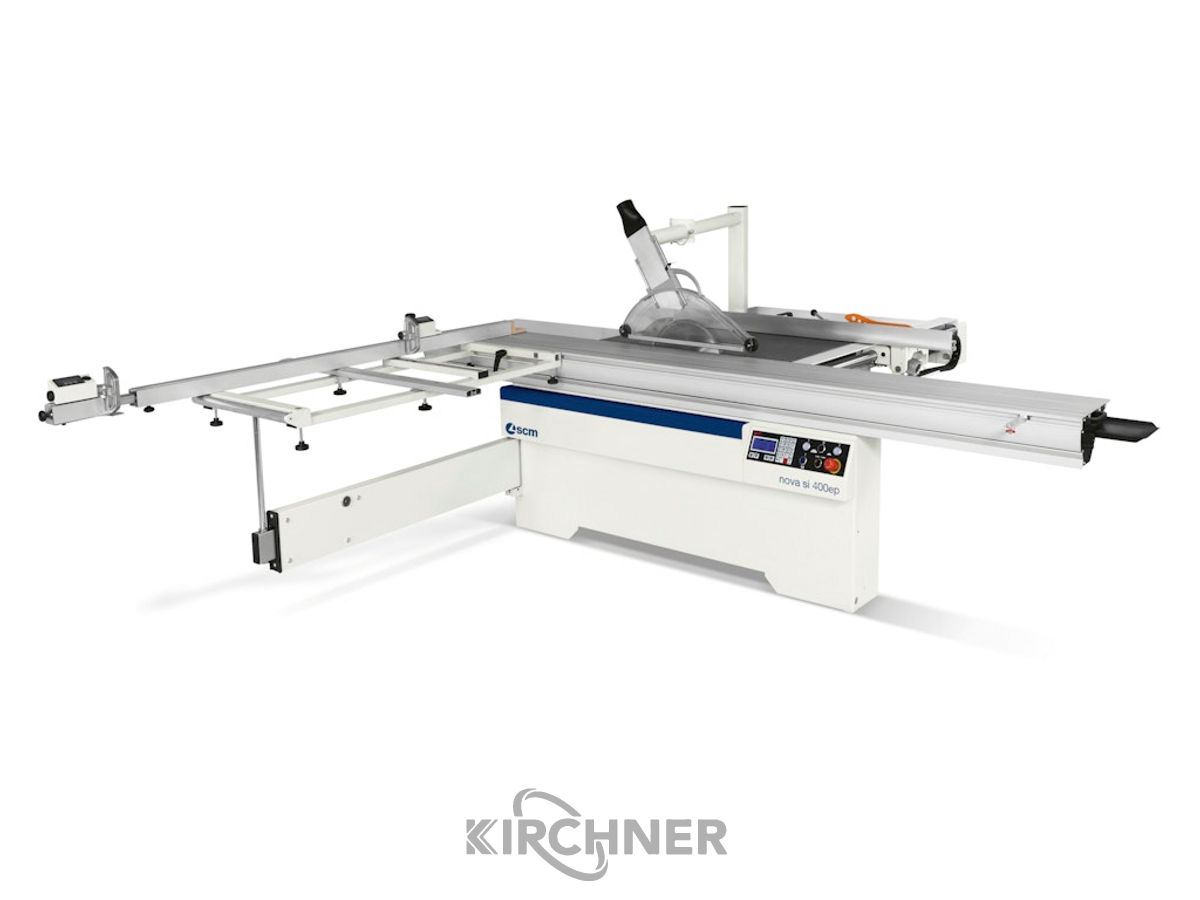

Description
Basic equipment and accessories
10-year warranty on the guide system of the saw carriage

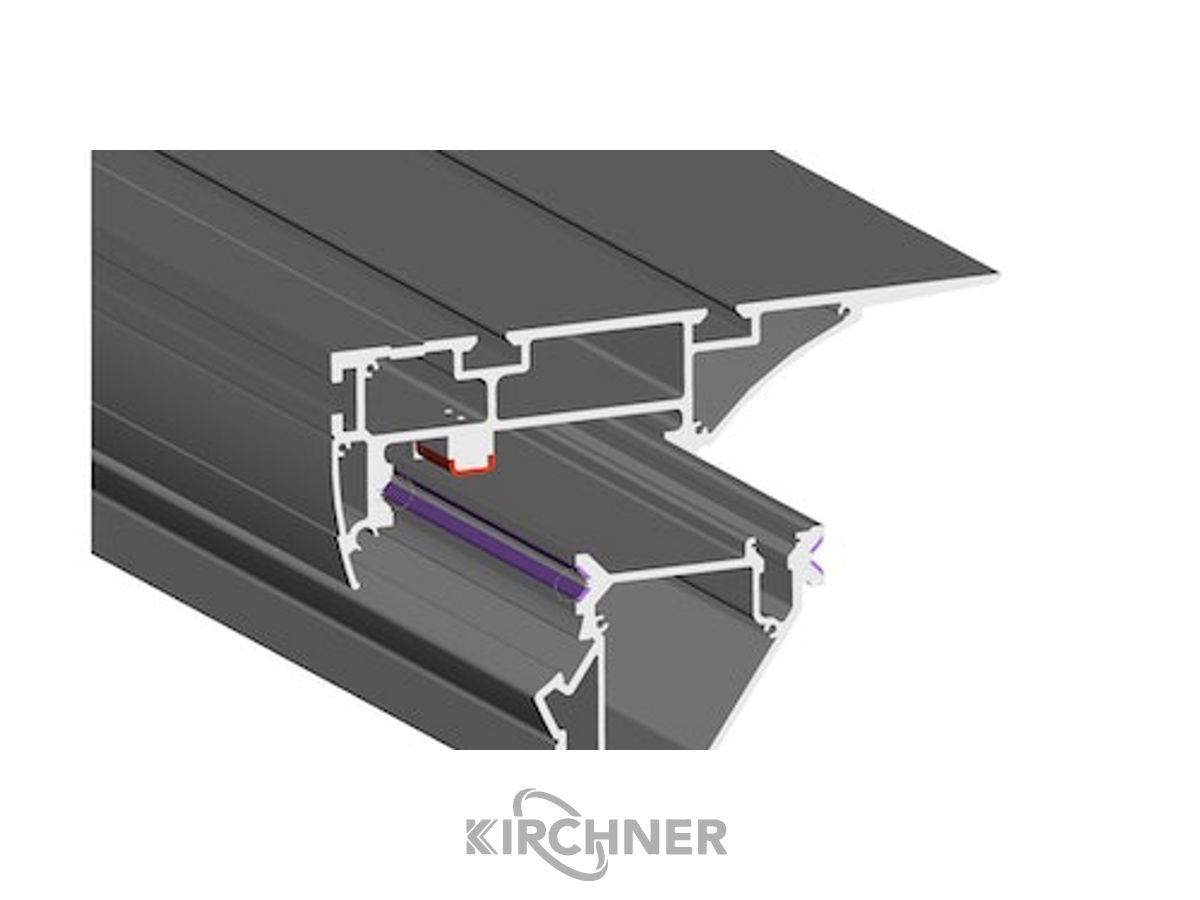

- Saw carriage with anodised aluminium profile Guide made of hardened,
ground and flanged steel guides
- Saw carriage length 3200mm

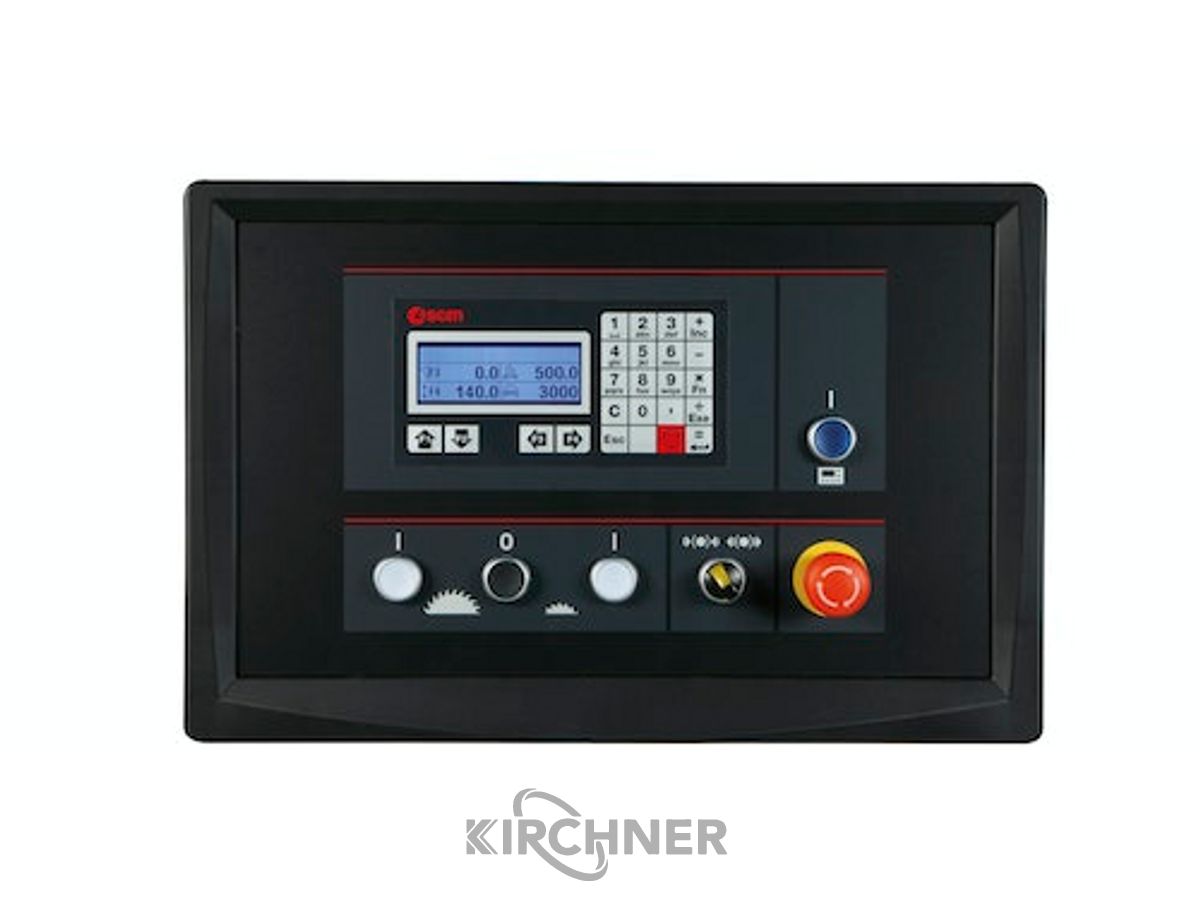

- "READY" Electronic control; 2-axis control (3rd axis on
enquiry) with:
- Height adjustment and inclination of the sawing unit (control of the
parallel stop on request)
- Management of mould data with automatic correction of the
Cutting height in relation to the angle of inclination of the saw blade
- Manual, semi-automatic and automatic mode with 99
storable work programmes
- Additional functions: Calculator and operating hours counter
- Trimming frame for quick positioning of the fence for
Mitre cuts
- Table extensions in the outlet
- Cutting length at rip fence 1270 mm
- 2-axis control with 99 programmes
Motor 7kW 50Hz (8kW 60Hz)
- Motor with direct connection with push buttons
- Three main saw blade speeds
- Scoring unit with independent motorisation, externally adjustable and
Stops for easy saw blade positioning
Security/Protection
- Emergency stop button on the front
- Emergency stop button on the side in the rip fence area (CE version)
- Thermal circuit breaker
- Saw blade pendulum guard (CE version) integrated extraction unit, extraction nozzle
with diameter 80 mm
- Saw blade pendulum guard with integrated extraction system, extraction nozzles with 80 mm
Diameter
- Automatic motor brake on the main saw blade (CE version)
- Lockable main switch
- 110 V auxiliary circuit
- C.E. Declaration of Conformity (CE version)
Technical data
Max. cutting height at 90° (mm) 140 with blade 400
Max. cutting height at 45° (mm) 97 with blade 400
Saw blade tilt (degrees) 45
Lifting and swivelling of the saw blade unit programmed
Saw blade speed (rpm) 3000- 4000- 5000
Scoring speed (rpm) 8500
Main motor power (S6 -40%) kW (hp) 50 Hz 7 (9.5)
Scoring unit power (S6 -40%) kW (hp) 50 Hz 1.3 (1.7)
Format cuts:
- with wagon 1600 (mm) n.a.
- with trolley 3200 (mm) 3200×3200
Cutting width for parallel cuts (mm) 1270
Suction nozzle diameter:
- on the frame (mm) 120
- on the saw blade guard (mm) 80
- on the riving knife (mm) n.a.
Net weight of basic machine (kg) 1050
109999 Design according to safety regulations
R10078 nova si 400ep CE version
930731 Volt 400 EU
931201 Frequency 50 Hz
570343 Digital display for rip fence
Complete with:
- Digital display and magnetic tape
570133 Motor 9kW 50Hz (11kW 60Hz) with automatic star/delta switch kW9 PS12 Hz50 (kW11 PS15 Hz60)
083202 Base
109993 MACHINE LANGUAGE: German
