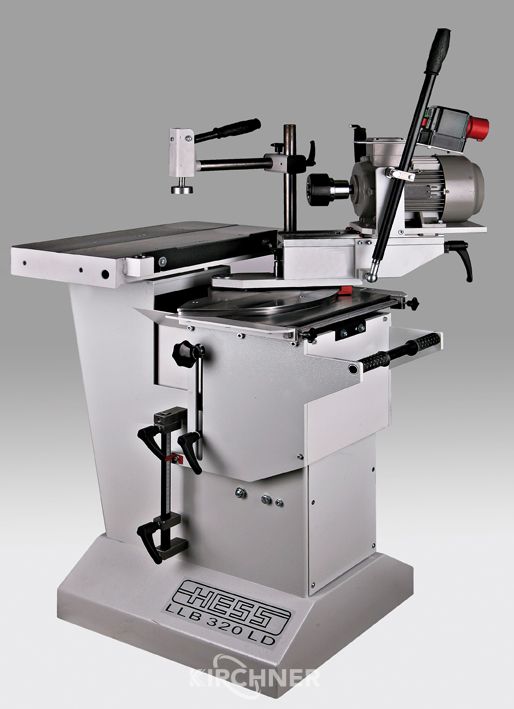

Description
with
Quick-lift system, rotating drill head,
Operating instructions
Drilling width 240 mm
Drilling depth 180 mm
Drilling stroke 140 mm
Motor power 2.2 kW
Engine speed 2800 rpm
Drill chuck holder 20 mm
Table size 600 mm x 320 mm
Handle system 1 eccentric
Motor rotation angle 65° right/left
Weight 268 kg
Article no.: 320010
A 250070
2-speed motor, 1400/2800 rpm.
instead of 2.2 kw, (LLB/BS/BSK)
A 250055
Eccentric pusher with column and clamping cross
for LLB 200/300/320
A 350415
4-wheel chassis for LLB 300/320/400
with 2 swivel castors and 2 brakes on
own frame
A 250128
90° plug-in stop for LLB 200
A 350255
Hor. drilling grid system SH LLB 300 D/320 D
with 4 rows of holes 16, 20, 22, 25 mm,
Bowden cable operation
