Hess
Datasheet as PDF

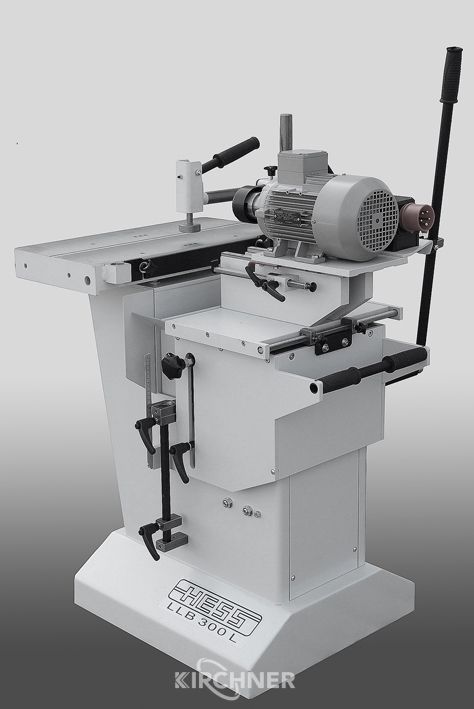

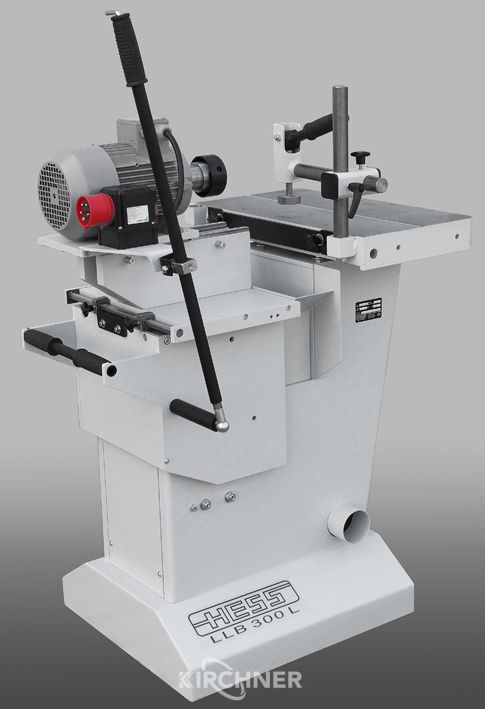

Slot drilling machine
LLB 300 L
- Article No. 1326-52249
5.514,00€
incl. VAT · excl. shipping
in stock - available immediately
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | Hess |
|---|---|
| Model | LLB 300 L |
| Item number | 1326-52249 |
| Category | Drilling, dowelling, chiselling › Slot drilling machine |
Description of the
with quick-lift system
- NEW -
Drilling width 240 mm
Drilling depth 180 mm
Drilling stroke 160 mm
2-speed motor 1400/2800 rpm instead of 2.2 kW
Engine speed 2800 rpm
Drill chuck holder 20 mm
Table size 600 mm x 320 mm
Handle system 1 eccentric
Weight 246 kg
Article no. 300015
including accessories:
1 piece 2-speed motor 1400/2800 rpm
instead of 2.2 kW No. A250070
1 piece 90° plug-in stop no. A350128
1 piece Hor. drilling grid system with
4 rows of holes 16,20,22,25 mm
Bowden cable control no. A300255
1 eccentric pusher with column and
Clamping cross no. A250055
