Description
-new-

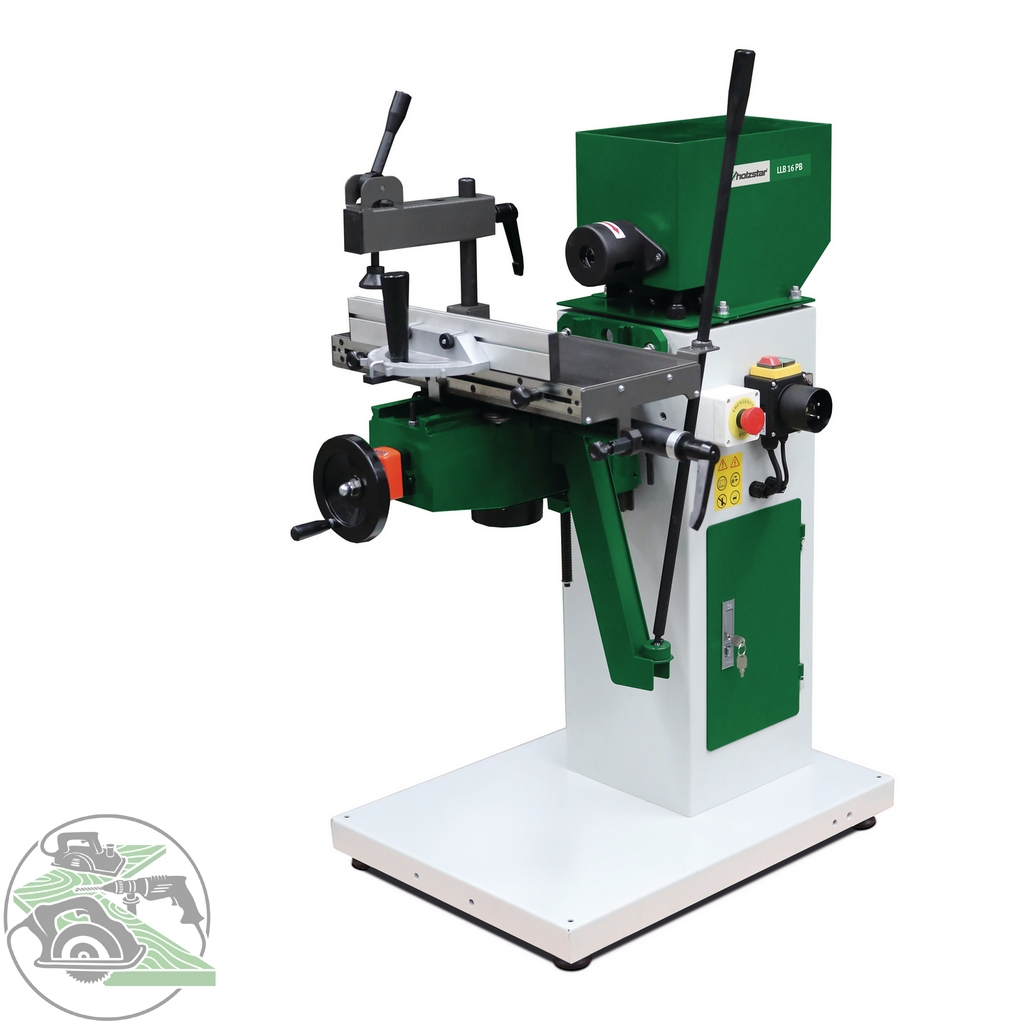

-Row drilling through dowel drilling
equipment with grid division
16/20/22/32 mm possible
-Wescott drill chuck 0 - 16 mm as standard
-Powerful motor
-Easy one-hand lever operation of the
work table for fast and precise
Drilling
-roller guide enables the precise
Moving the worktable
-Convenient, precise table height adjustment via
One handwheel with numerical display
-Adjusted height of the worktable
additionally readable via scale
-An eccentric clamp for safe
Workpiece fixture included in the scope of delivery
-Angle stop adjustable by 60° on both sides
-Substructure with large, lockable
Tool compartment equipped
Technical data:
Drilling width 300 mm
Drilling depth max. at 90° 140 mm
Work table height adjustment 150 mm
Work table length x width 500×207 mm
Tool holder Wescott drill chuck
Clamping diam. of the tool 0-16 mm
Spindle speed 2850 min1
Output power 1.5 kW
Supply voltage 400V/50Hz
Suction nozzle 100 mm D.
LengthxWidthxHeight 905x710x1230 mm
Weight 108 kg
