Description
- new -
Swivelling sanding unit and
Oscillating sanding belt
Description:
- With oscillating sanding belt for a
Good removal rate, a clean sanding pattern
and a longer service life of the sanding belt
- With height-adjustable grinding table
- With -45° to +45° stepless as standard
Adjustable mitre and workpiece stop
- Infinitely adjustable sanding unit
(0°-90°) for vertical and horizontal grinding
- Table height adjustment via handwheel
- Robust grey cast iron worktable with T-slots,
Stable stand of the machine when working
- With height-adjustable additional table for contour sanding
- Quick and easy sanding belt change
via quick-release system
- Spring-loaded clamping device for an even
Belt tension
- Grinding soleplate with graphite coating as standard
- Suction nozzle Ø 100 mm
- With lockable storage option
in the standard substructure
Equipment details
- Thanks to the infinitely tilt-adjustable
The sanding unit is the edge sanding machine
for a wide range of sanding processes such as
Can be used for vertical and horizontal grinding
Technical data:
Dimensions and weights
Length approx. 1430 mm
Width/depth approx. 600 mm
Height approx. 1250 mm
Weight approx. 187 kg
Suction connection
Suction nozzle diameter 100 mm
Work table(s)
Work table height adjustment 80 mm
Longitudinal table length 850 mm
Longitudinal table width 300 mm
Height adjustment longitudinal table 80 mm
Cross table height min. 965 mm
Electrical data
Supply voltage 400 V
Mains frequency 50 Hz
Sanding unit
Sanding belt length 2515 mm
Sanding belt width 152 mm
Belt speed(s) 16 m/s
Grinding surface length 950 mm
Sanding surface width 180 mm
Scope of delivery:
- Mitre fence
- Workpiece fence 700 x 138 x 63 mm
Item no. 5900850

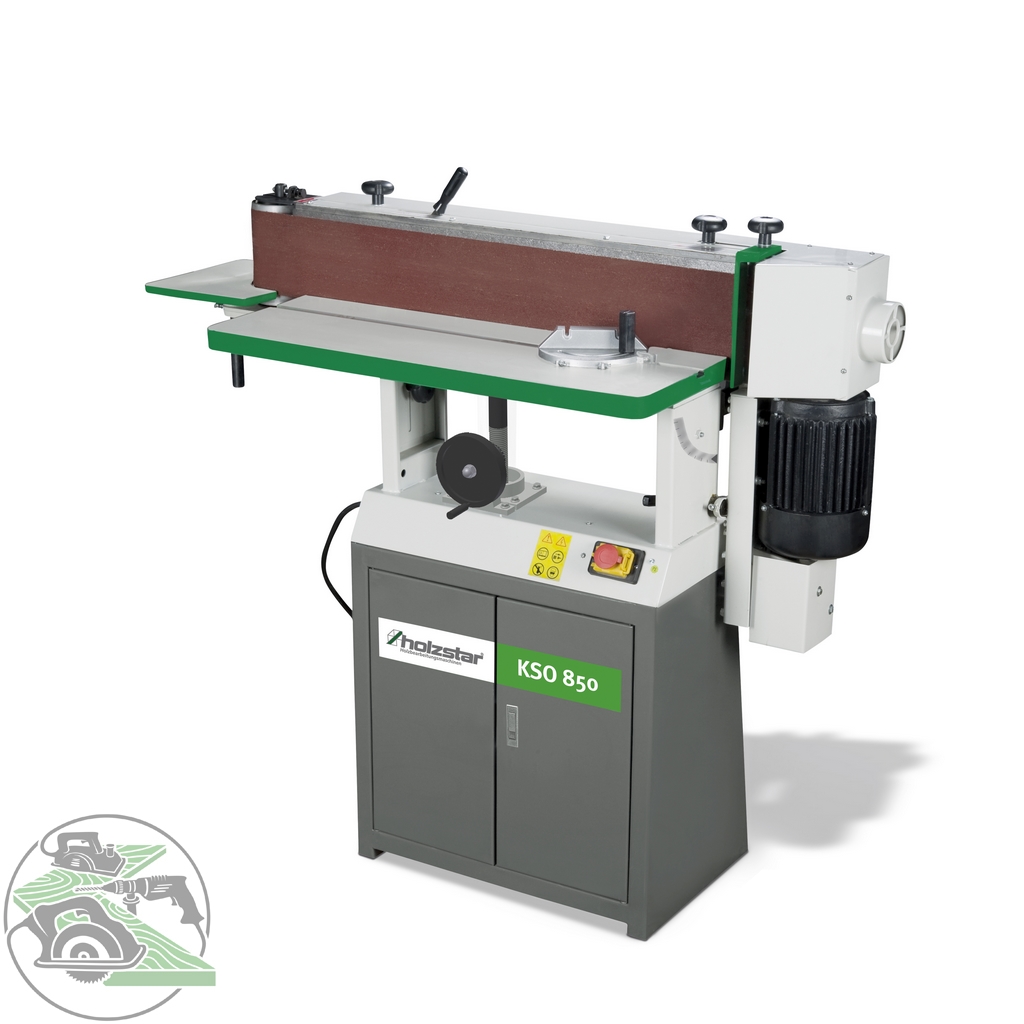

Edge sanding machine for a wide range of sanding processes such as
Can be used for vertical and horizontal grinding
Scope of delivery:
- Mitre fence
- Workpiece stop 700 x 60 mm
Technical data:
Table height min./max. 950 / 1030 mm
Table height adjustment 80 mm
Longitudinal table dimensions 840 x 300 mm
Cross table dimensions 300 x 250 mm
Belt width 152 mm
Grinding surface 950 x 180 mm
Sanding drum diameter 110 mm
Sanding belt speed 16 m/s
Suction nozzle Ø 100 mm
Motor power 2.2 kW
Electrical connection 400 V
Mains frequency 50 Hz
Weight 148 kg
Dimensions (L x W x H)
1430 x 600 x 1250 mm
Item no. 5900850
Storage location 97447 Gerolzhofen
