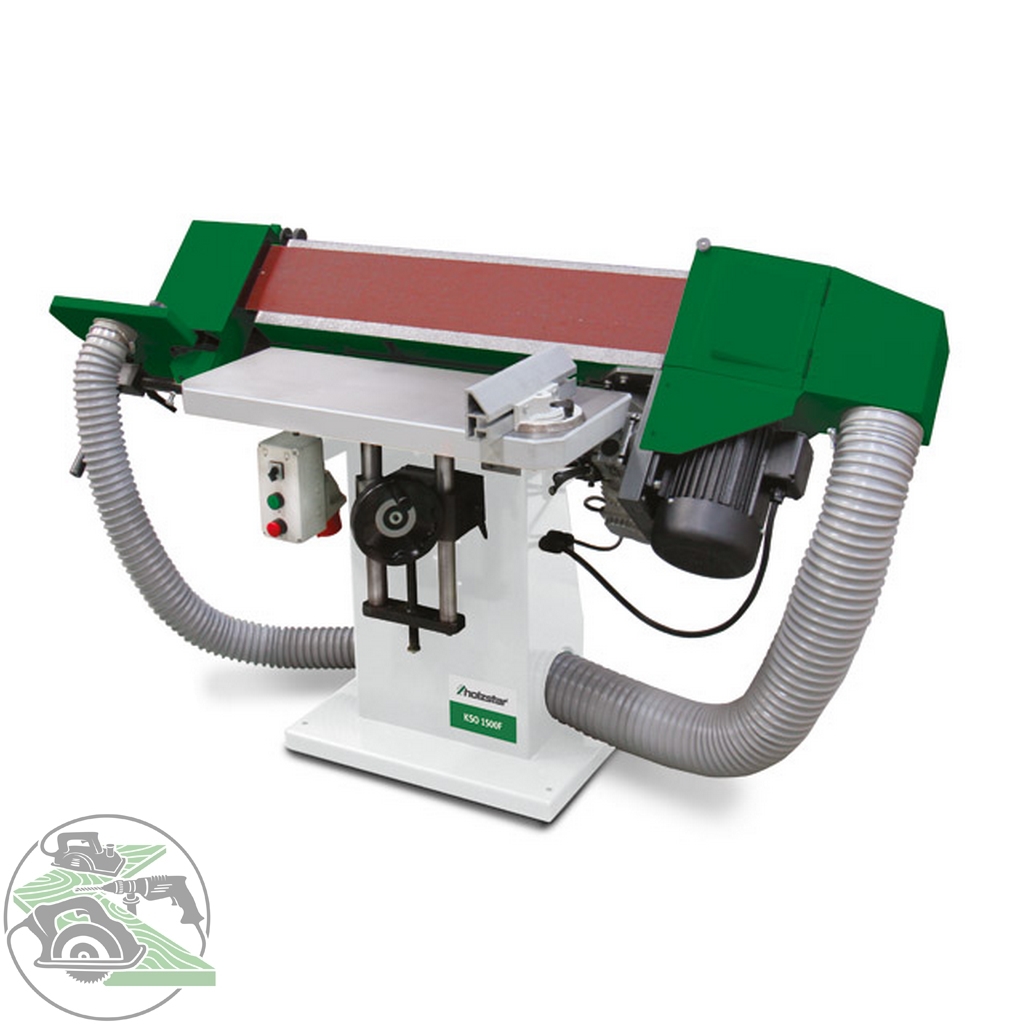

Edge grinding machine
- Article No. 1326-37569
- Viewing by appointment
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | Wooden star |
|---|---|
| Model | Type KSO 1500 F |
| Item number | 1326-37569 |
| Category | Grinding, brushing › Edge grinding machine |
Description of the
-new-
- With swivelling sanding unit and oscillating sanding belt for perfect sanding results
- Machine frame made of welded steel guarantees high torsional rigidity
and vibration-free working
- Sanding unit can be swivelled up to 45° using a lever for sanding straight and angled edges
- Oscillating sanding belt with separate geared motor for better sanding results
- Oscillation optionally switchable
- Sanding pad with graphite coating for a longer service life of the sanding belt
- Height-adjustable additional table with suction unit for sanding radii
- Automatic equalisation of belt length differences through spring-loaded belt tensioning
Scope of delivery:
- Mitre fence
Technical data:
Table height min./max. 740 / 920 mm
Table height adjustment 180 mm
Longitudinal table dimensions 750 x 300 mm
Cross table dimensions 330 x 330 mm
Belt length 2600 mm
Belt width 150 mm
Sanding surface 850 x 200 mm
Sanding drum diameter 100 mm
Sanding belt speed 20 m/s
Suction nozzle Ø 120 / 80 mm
Motor power oscillation 0.25 kW
Motor power 3.0 kW
Electrical connection 400 V
Mains frequency 50 Hz
Weight 180 kg
Dimensions (L x W x H)
1720 x 700 x 1030 mm
Item no. 5901500
Storage location 97447 Gerolzhofen
- free loading -
