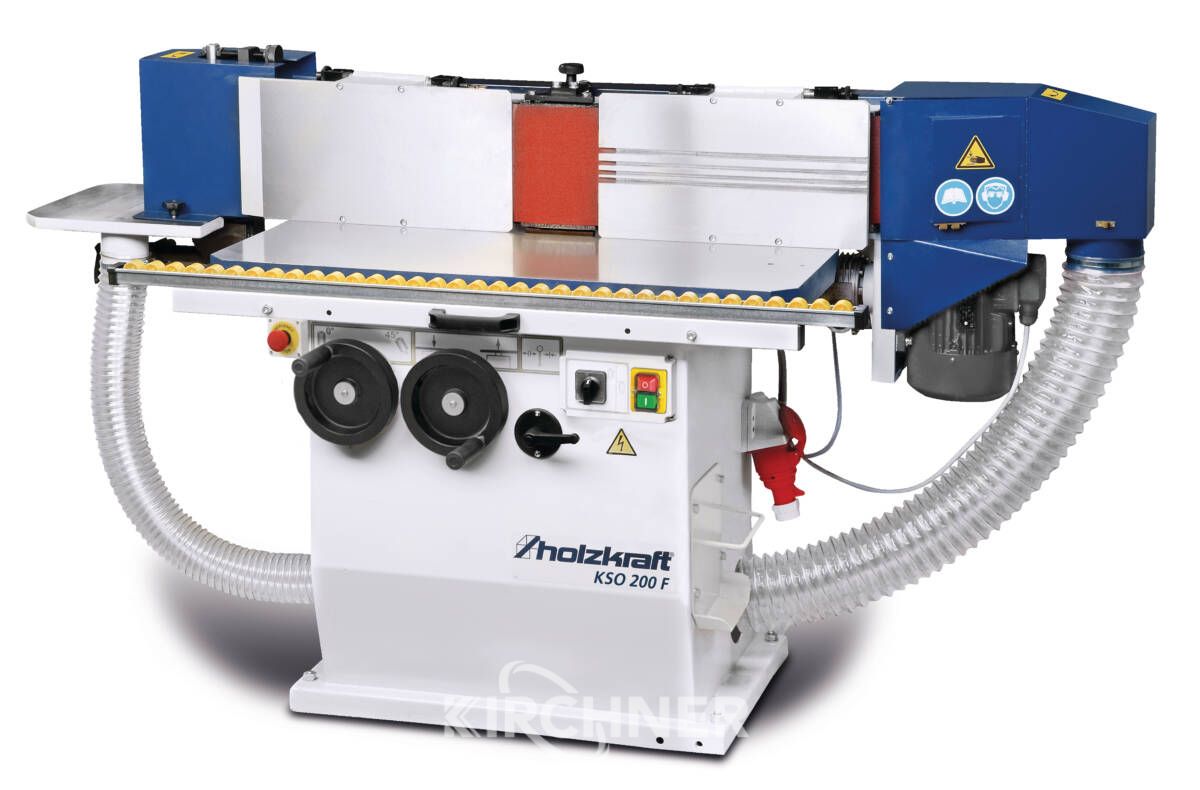

Edge grinding machine

- new -

with swivelling sanding unit and
oscillating sanding belt F version for
Veneer sanding

Description:

- Sanding unit can be swivelled up to 45° via lever
- The machine stand made of welded steel
guarantees a high degree of torsional rigidity and
Vibration-free working.
- Oscillating sanding belt with separate
Gear motor for better sanding results
- Oscillation optionally switchable
- Grinding soleplate with graphite coating for a higher
Service life of the sanding belt
- Height-adjustable grinding table for utilisation
of the entire sanding belt width
- Height-adjustable additional table with suction unit
for grinding radii
- The spring-loaded belt tensioner equalises
automatically compensates for belt length differences.
- With double suction
- Extendable castor table extension
- With rubberised sanding drum
- Veneer edge sanding device with contact shoe
with fine adjustment, relief rollers
and stop rulers
- With grooved infeed guide for veneer overhangs
- Fast repositioning of veneer edges-
possible on solid wood sanding

Technical data:

Dimensions and weights
Length approx. 1900 mm
Width/depth approx. 900 mm
Height approx. 1350 mm
Weight approx. 290 kg

Suction connection
Suction nozzle diameter 140 / 100 mm

Drive power
Oscillation motor 0.25 kW

Work table(s)
Work table length 960 mm
Worktable width 350 mm
Work table height adjustment 230 mm
Height adjustment longitudinal table 230 mm
Cross table height min. 720 mm

Electrical data
Supply voltage 400 V
Mains frequency 50 Hz

Sanding unit
Sanding belt length 3000 mm
Sanding belt width 200 mm
Belt speed(s) 20 m/s
Sanding surface length 1050 mm
Grinding surface width 200 mm
Oscillation stroke 20 mm

Item no. 5363001
