Edge and profile sanding machine
- Year of construction 1987
- Article No. 1326-43047
- Viewing & Demonstration in the Warehouse
- Personal expert advice
- Checked & fairly rated
Technical data
| Manufacturer | Arminius |
|---|---|
| Model | Type ST-4 |
| Year of construction | 1987 |
| Item number | 1326-43047 |
| Category | Grinding, brushing › Edge grinding machine |
Description of the

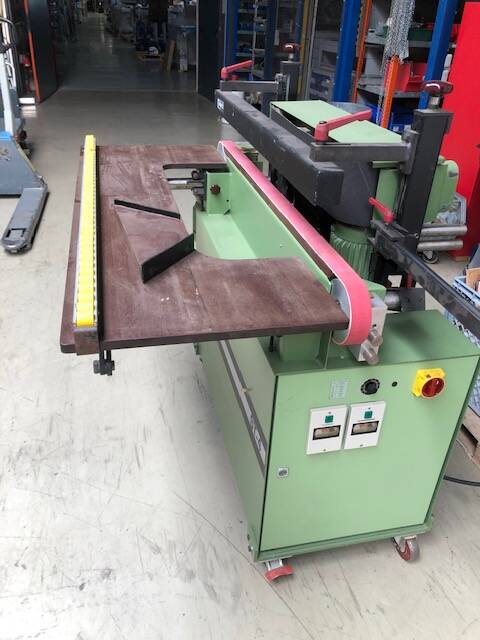

Edge and profile sanding machine with new feed belt
used, top condition, little used, top equipment

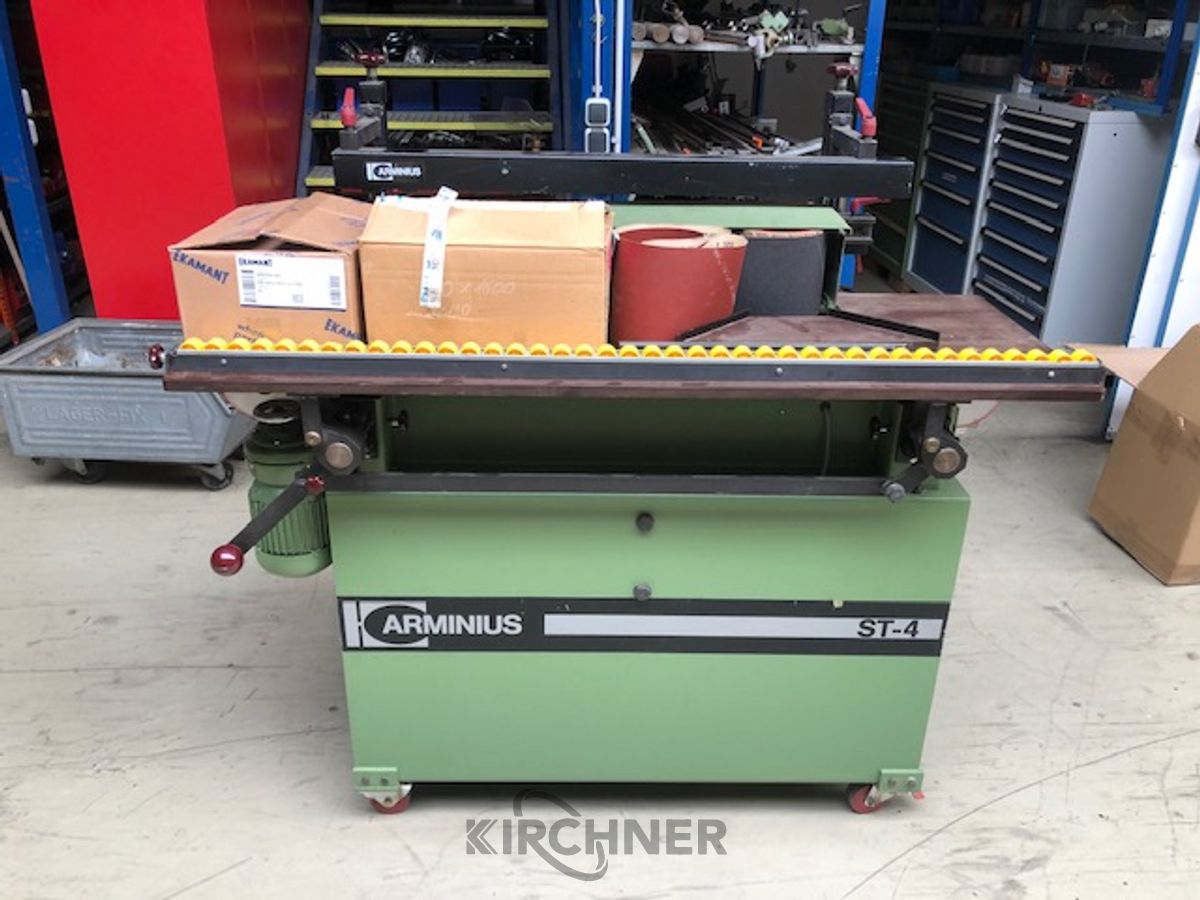

Make Arminius
Type ST-4
Year of construction 1987
Machine no. 1948

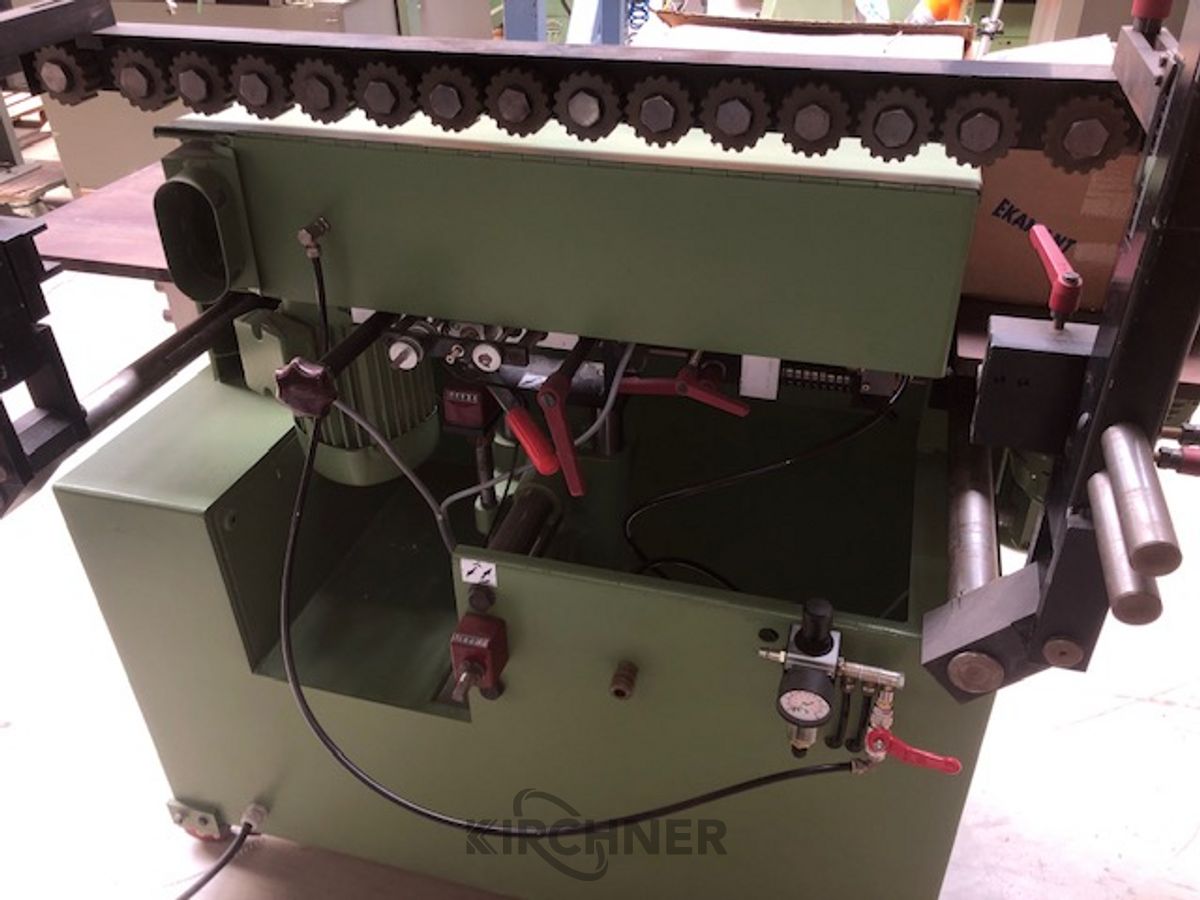

Belt feed with top pressure rollers and support roller track
Insert-controlled sanding pad can be exchanged for profile sanding body
Profile sanding spindle with infinitely variable speed control
Grinding spindle 28 x 90 mm
1.5 kW / max. 1,500 rpm.
stepless
Workpiece clearance height 0-100 mm
Motor 1.5 kW
Oscillation motorised 0.02 kW
Veneer edge sanding device with controlled shoe

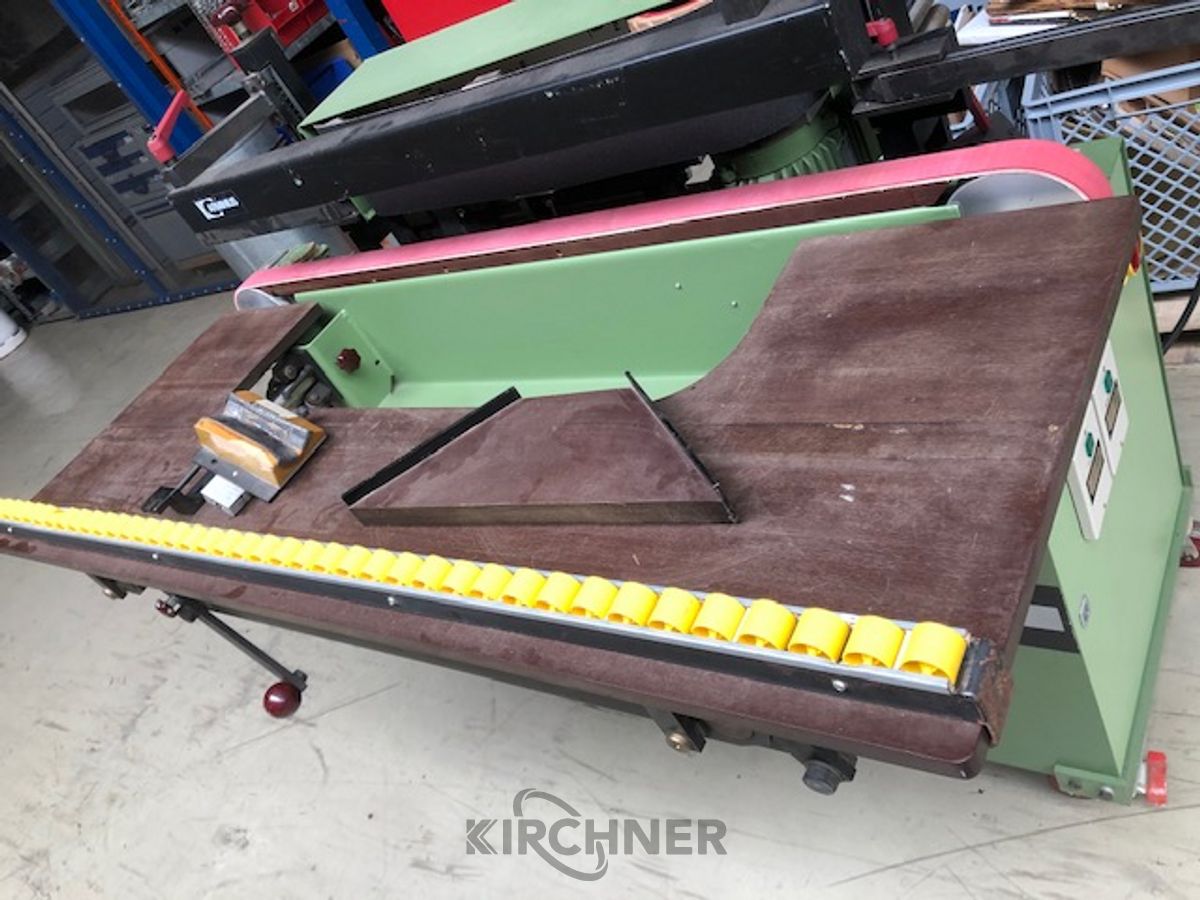

front table approx. 500 mm x 1350 mm
Tilting unit 0-90°

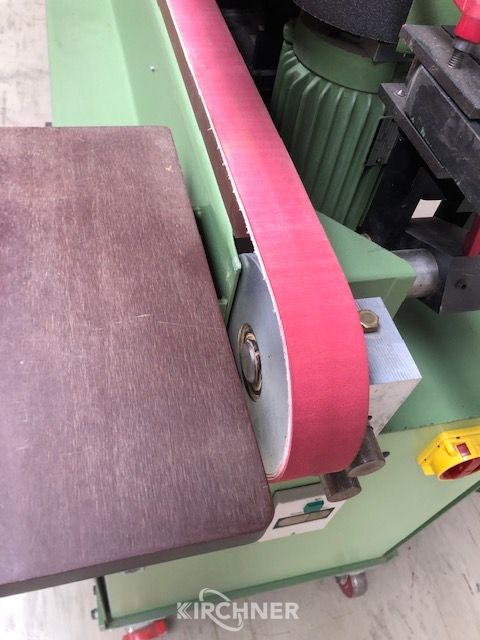

Belt length 1600 mm
Belt width 150 mm
Infinitely variable belt speeds
mobile
Mitre fence
Round edge grinding device
Infinitely variable feed system - belt feed with top pressure 5-25 m/min.
Belt tiltable 0-90°
New price approx. € 25,000.00
Suction connection 100 mm
Space requirement approx. 1350 mm x 930 mm x 1100 mm
Weight approx. 280 kg
Storage location 97447 Gerolzhofen, free loaded, unpacked
Handover in actual condition as inspected
Without guarantee and warranty
