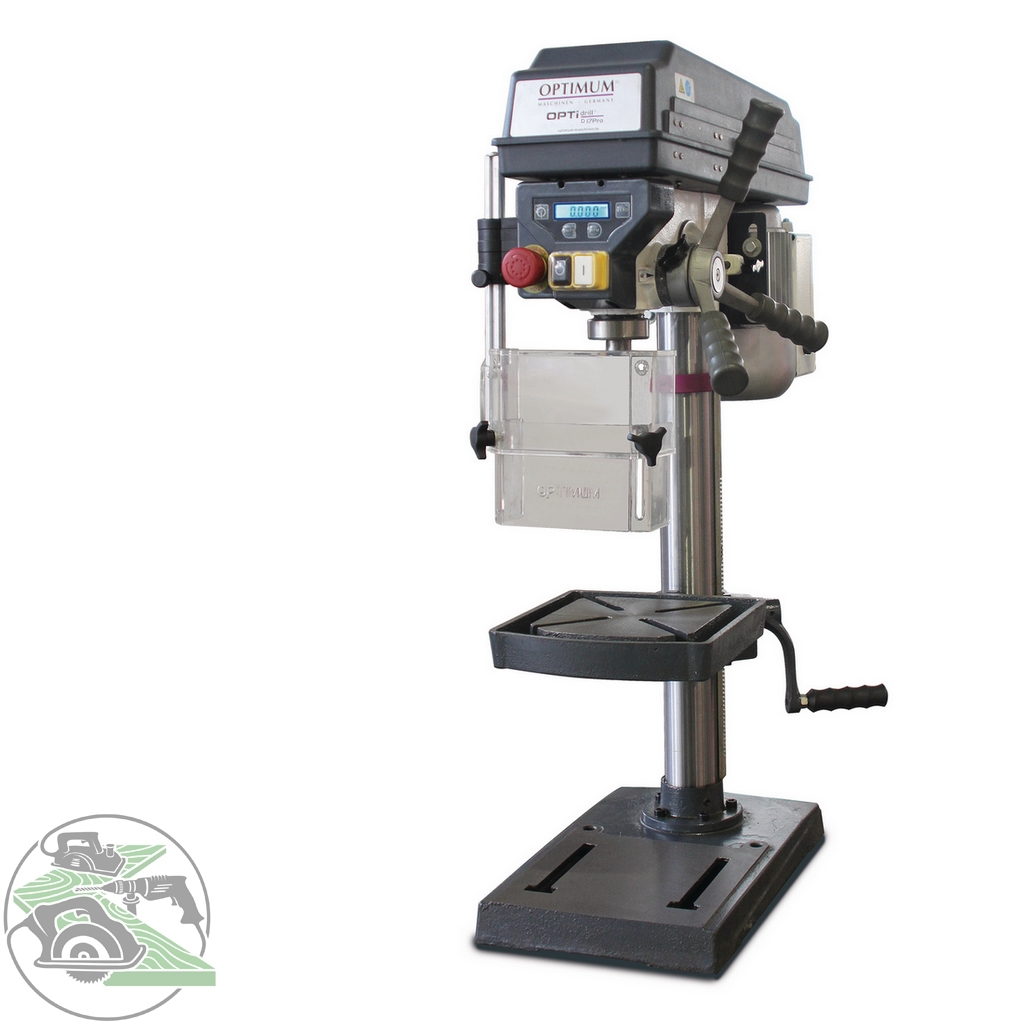

Description
- new -
Description:
- Industrial motor
- User-friendly safety switch
according to IP 54
- Digital drilling depth and speed display
Integrated in the housing
- Separate emergency stop switch
- Precision spindle bore
- Safety electrics in 24 V DC voltage
- Guaranteed concentricity smaller
measured as 0.02 mm in the drill sleeve
- Drill spindle with precision ball bearings
- High-quality quick-action drill chuck
- Drilling depth stop
- Precisely machined, stable drilling table with
diagonally running T-slots and circumferential
Cooling water channel
- V-belt cover with safety switch
- Moulded from one piece
Die-cast aluminium quill lever with
Softgrip handles
- Large, height-adjustable protective disc
with safety switch
- Heavy-duty design of the entire machine
Technical data:
Dimensions and weights
Column diameter 60 mm
Length approx. 565 mm
Width/depth approx. 275 mm
Height approx. 840 mm
Weight approx. 41.5 kg
Drilling performance
Drilling capacity steel (S235JR) 16 mm
Continuous drilling capacity steel (S235JR) 12 mm
Drill table
Work surface length 235 mm
Work surface width 220 mm
T-slots size 12 mm
Rotation 360 °
Inclination 45 °
Distance spindle - drilling table max. 325 mm
Speed range
Speed range 500 - 2520 min¯¹
Number of speed ranges 5
Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Machine foot
Distance spindle - machine base max. 530 mm
Work surface length 220 mm
Work surface width 230 mm
T-slots size 16 mm
T-slots Quantity 2
T-slot spacing 148 mm
Spindle
Quill stroke 65 mm
Spindle holder MK 2
Projection 152 mm
Scope of delivery
- Quick-action drill chuck 1 - 16 mm
- Morse taper MK 2/B16
- T-slot nuts
- Machine vice BMP
Item no. 3003010SET
Heavy-duty design of the entire machine
TECHNICAL DATA
Dimensions and weights
Length (product) approx. 565 mm
Height (product) approx. 840 mm
Column diameter 60 mm
Weight (net) approx. 41.5 kg
Width/depth (product) approx. 275 mm
Drilling performance
Drilling capacity steel (S235JR) 16 mm
Continuous drilling capacity steel (S235JR) 12 mm
Drill table
Drilling table Work surface length 235 mm
Drill table rotation 360°
Drilling table Work surface width 220 mm
Drill table inclination 45°
Drilling table T-slots size 12 mm
Distance spindle - drilling table max. 325 mm
Speed range
Speed range 500 - 2520 min¯¹
Number of speed ranges 5
Electrical data
Drive motor power 0.5 kW
Current type ~
Supply voltage 230 V
Mains frequency 50 Hz
Phase(s) 1 Ph
Machine foot
Distance spindle - machine base max. 530 mm
Machine foot T-slots size 16 mm
Machine foot Work surface length 220 mm
Machine foot T-slots Quantity 2
Machine base Working surface width 230 mm
Machine base T-slot distance 148 mm
Spindle
Quill stroke 65 mm
Projection 152 mm
Spindle holder MK 2
SCOPE OF DELIVERY
Quick-action drill chuck 1 - 16 mm
Morse taper MK 2/B16
T-slot nuts
Machine vice BMP
