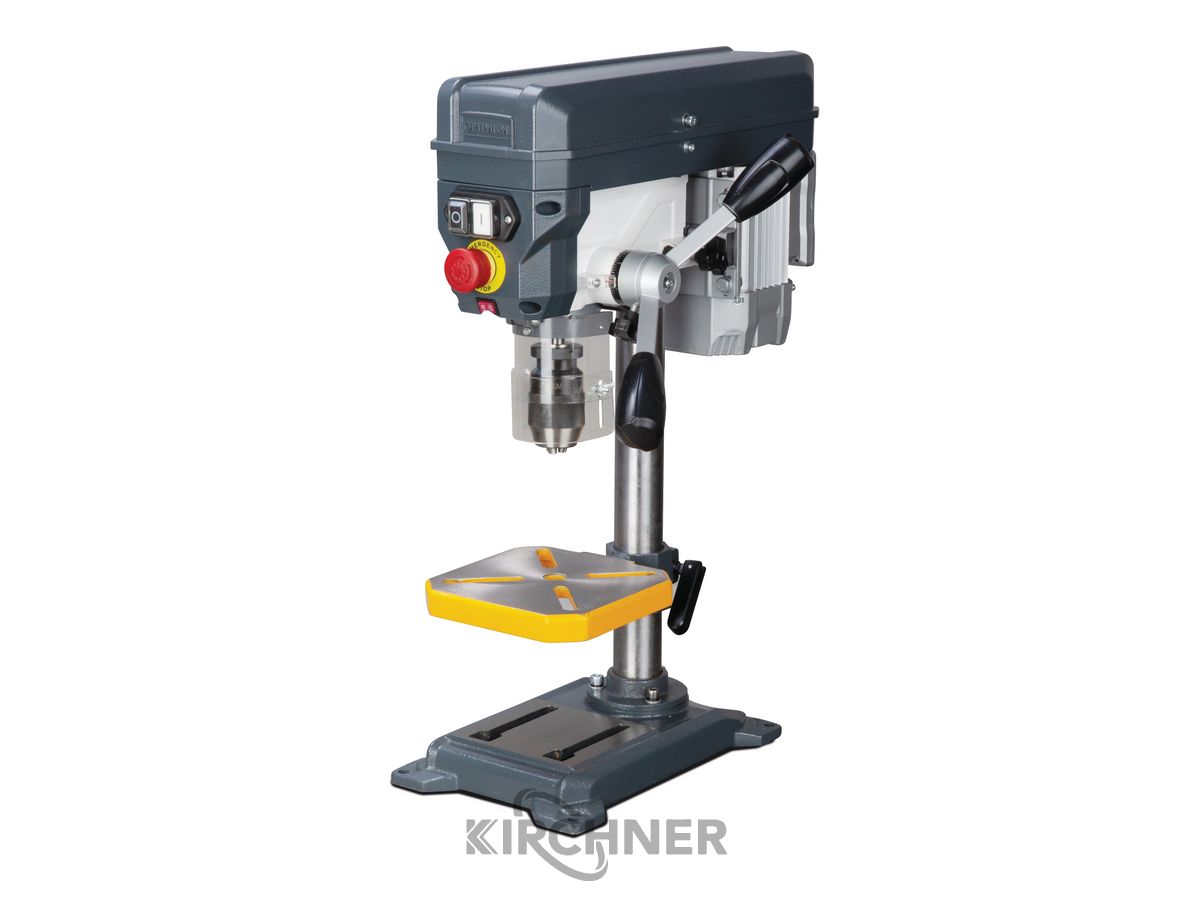

Description
- NEW -
Description:
- Separate emergency stop switch
- Drilling depth stop
- Drill table ?? 45° tiltable and 360° rotatable
- Moulded from one piece of
Aluminium die-cast quill lever with soft grip handles
- Precision spindle bore
- Safety electrics in 24 V DC voltage
- Guaranteed concentricity smaller
measured as 0.03 mm in the drill sleeve

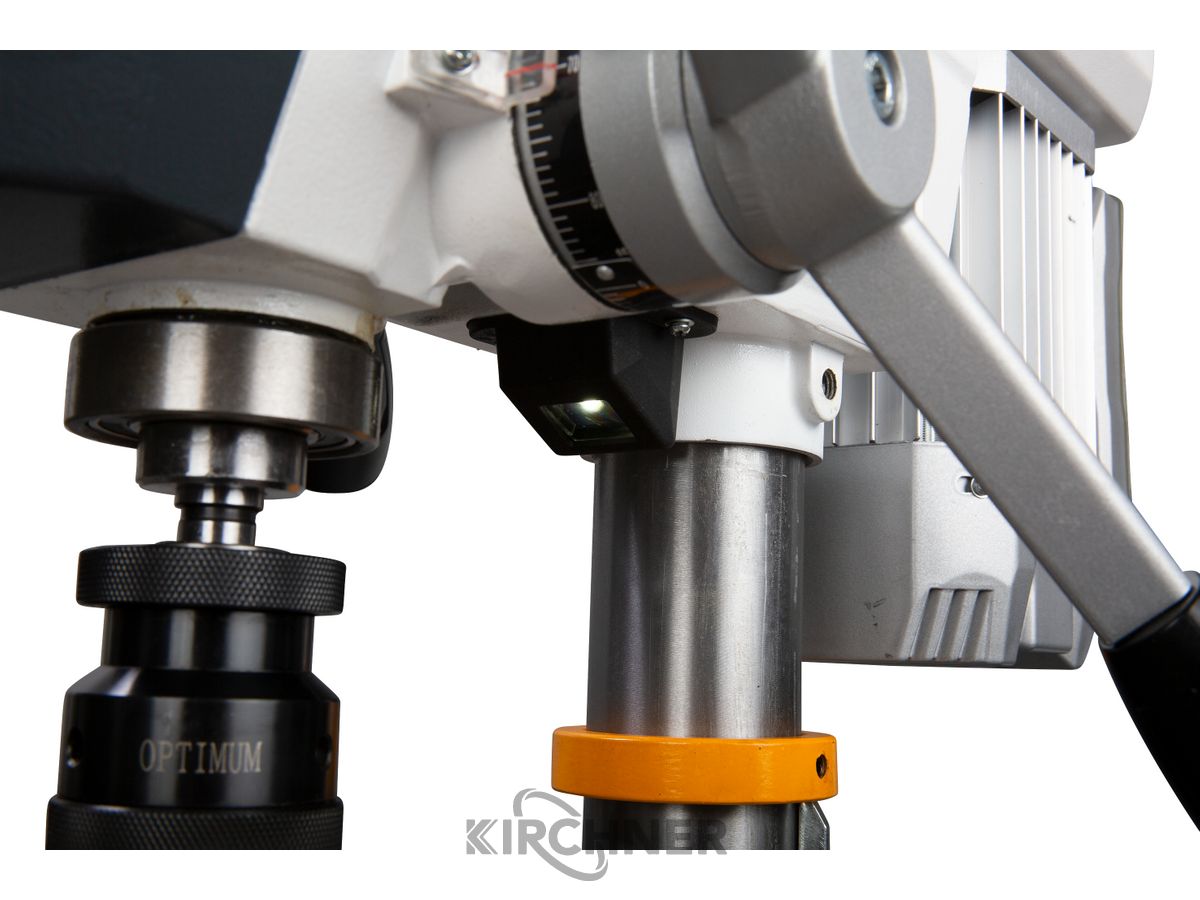

- Drill spindle with precision ball bearings
- High-quality quick-action drill chuck

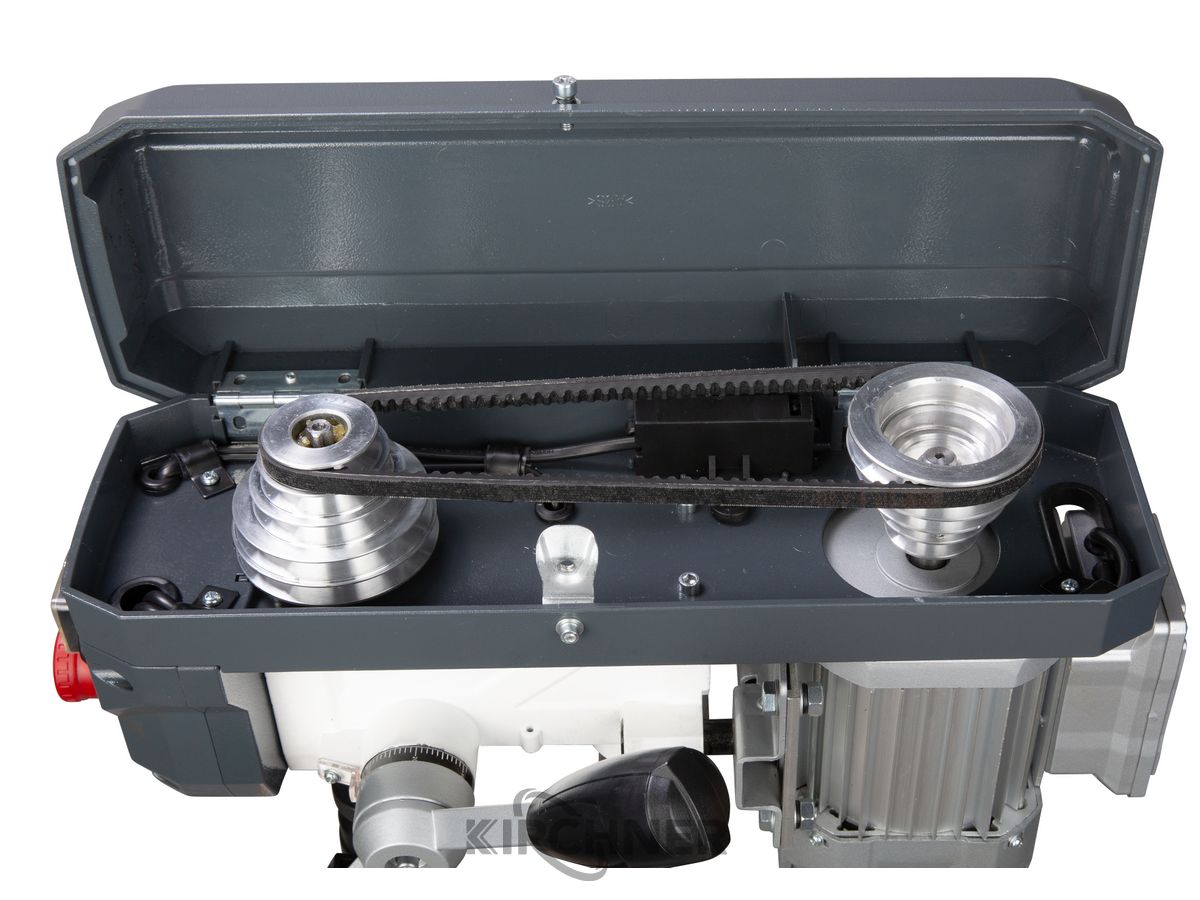

- GATES quality belts
- Large base plate with T-slots,
heavily ribbed on the back
Technical data:
Dimensions and weights
Pillar diameter 46 mm
Length approx. 472 mm
Width/depth approx. 283 mm
Height approx. 634 mm
Weight approx. 18.5 kg
Drilling performance
Drilling capacity steel (S235JR) 13 mm
Continuous drilling capacity steel (S235JR) 12 mm
Drill table
Working surface length 170 mm
Working surface width 170 mm
Type of T-slots diagonal
T-slot size 14 mm
T-slots Quantity 2
Rotation 360 °
Inclination ?? 45 °
Load capacity 8 kg
Distance spindle - drilling table max. 250 mm
Speed range
Speed range 700 2500 min????
Number of speed ranges 5 levels
Electrical data
Supply voltage 230 V
Mains frequency 50 Hz
Machine base
Distance spindle - machine base max. 340 mm
Working surface length 138 mm
Working surface width 128 mm
Spindle
Quill stroke 52 mm
Spindle holder fixed/B16
Projection 104 mm
Scope of delivery:
- Quick-action drill chuck 1 - 15.9 mm
- T-slot nuts
Item no. 3191040
