Description
- New -
Description (standard equipment):
- Thread cutting device Cutting capacity max. M8, setting the
Thread cutting depth via digital depth display
- LED lighting
- Emergency stop button
- Drill protection with electrical fuse
- Infinitely variable speed control
- Spindle stop
- Connection cable with plug (1.2 m)
The control panel with display:
- Clear and easy-to-understand control panel with central rotary knob
- Choice of operating mode between drilling and thread cutting
- Precise display of drilling depth (target/actual) and speed
- Counting function of the drilling strokes
- Energy saving mode
- OLED display (organic light-emitting diode) high-contrast display, from almost
readable from any angle
incl. machine cabinet:
with door and drawer
for TB 13 Plus, TB 10 Plus, Turbo Drill
Scope of delivery:

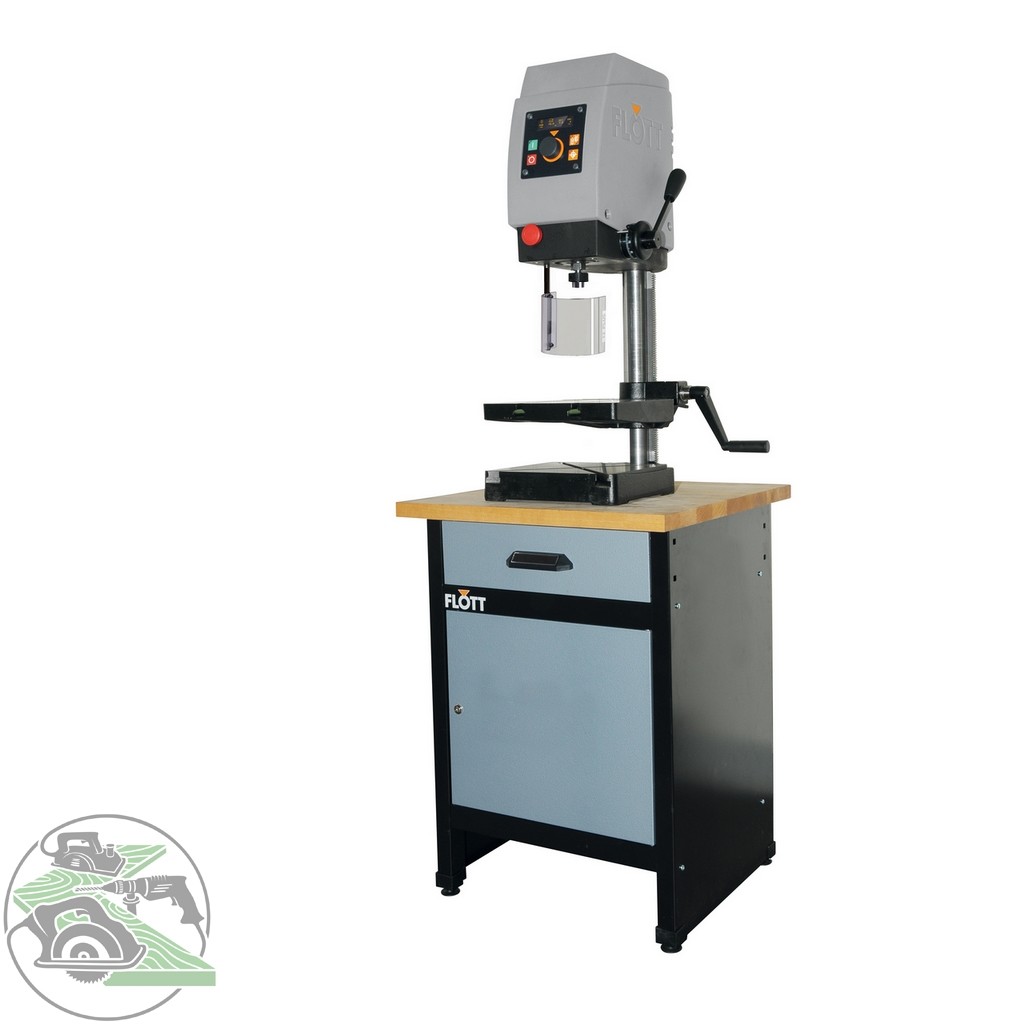

1 x Flott drilling machine type TB 13 Plus
1 x machine cabinet with door and drawer
Technical data TB 13 Plus:
- Spindle : B16, optional MK II
- Drilling depth: 60 mm
- Thread cutting capacity: max. M8
- Speed display: digital
- Drilling depth display: digital
- Drilling depth stop: Stop ring (positive locking)
- Feed: by hand
- Table height adjustment: with toothed rack
- Three-phase motor - frequency-controlled, mains connection 230 V :0.54 kW
- Continuous/normal drilling capacity: 13/15 mm
- Projection: 220 mm
- Column diameter: 70 mm
- Usable table surface (W x L): 300 x 250 mm
- Distance between spindle work surface and spindle nose table: 85-370 mm
- Distance spindle work surface spindle nose table (bottom): 420 mm
- T-slot size (arm): Quantity 2, distance 125 mm, dimension width 14/26 mm
- T-slot size (foot): Cross grooves, number 2, dimension width 14/26 mm
- Stepless electronic spindle speed: 40-4,000 rpm
- Machine dimensions (W x D x H): 400 x 520 x 850 mm
- Machine dimensions (with VP) (W x D x H): 452 x 700 x 1130 mm
- Weight: 62 kg
Technical data machine cabinet:
- Usable table surface (WxL): 600 x 600 mm
- Dimensions (WxDxH): 550 x 475 x 840 mm
- Weight without VP: 28 kg
