Description
- NEW -

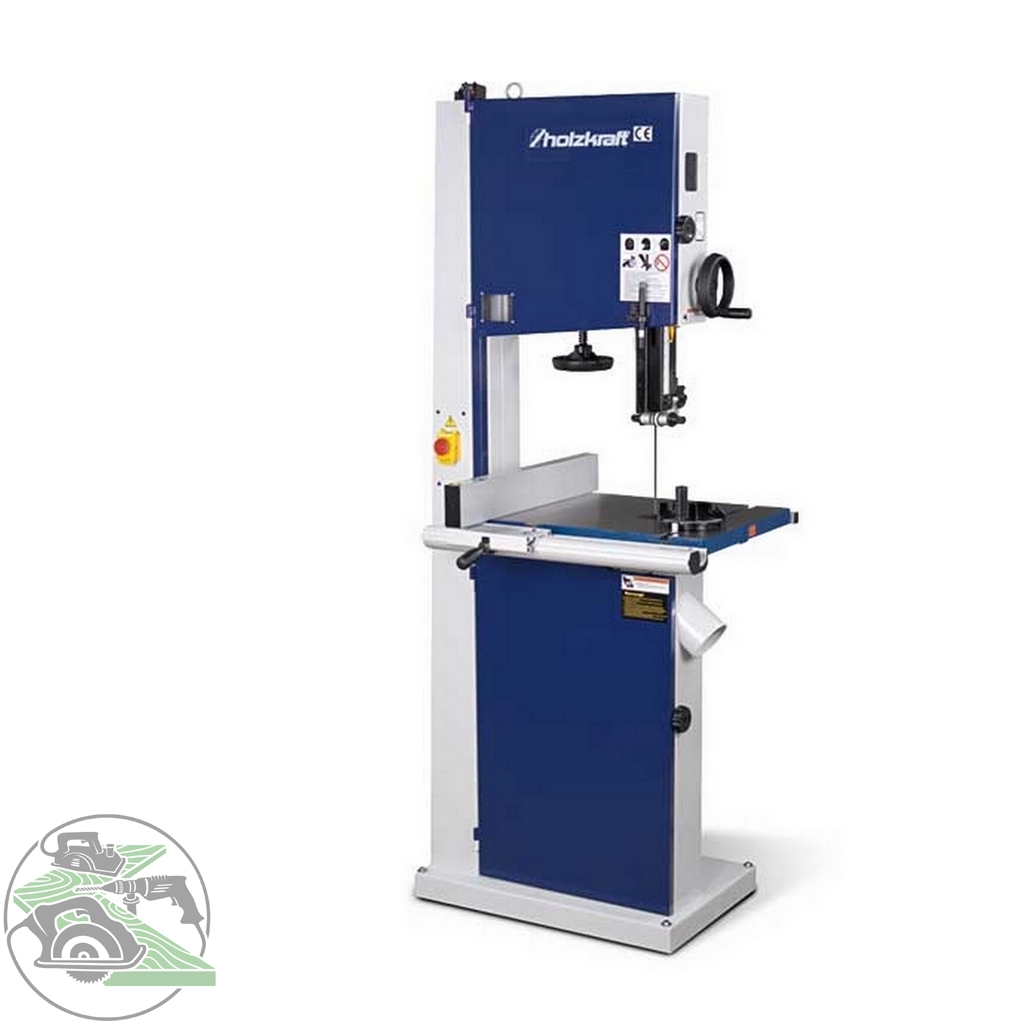

Make Holzkraft
Type HBS 533 SET
- Particularly smooth and precise running thanks to a
torsion-free machine housing and a
Solid base made from sheet steel
- Large grey cast iron saw table made from one piece
Piece, with precision ground and polished surface
- Convenient laser device for marking cutting lines
- Quick saw blade clamping via eccentric lever on the
Back of the machine
- With two speeds as standard
- Precise 3-roller saw band guides at the top and bottom
- Quick cutting height adjustment via rotary knob and
Toothed rack with millimetre scale
- Smooth-running aluminium parallel stop with
Eccentric quick clamping and magnifying glass
- Mitre fence as standard, on both sides
Adjustable by 60
- Safety switch for automatic switch-off
when the door is opened
Technical data:
Worktable dimensions 680 x 530 mm
Cutting speeds 850/430 m/min.
Flywheel D 530 mm
max. cutting height 270 mm
Max. cutting width with stop 474 mm
Max. cutting width without stop 514 mm
Saw blade length 3865 mm
Precision guide 3 rollers top / bottom
Saw table inclination -10 to +45 °
Motor power 400 V / 50 Hz / P2 2.25 kW
Weight 163 kg
Dimensions 1024 x 793 x 2048 mm
Suction nozzle diameter 2 x 100 mm
included in the scope of delivery:
1 band saw blade set, length 3865 mm, 3-piece
Item no. 5155303SET
Storage location: 97447 Gerolzhofen
