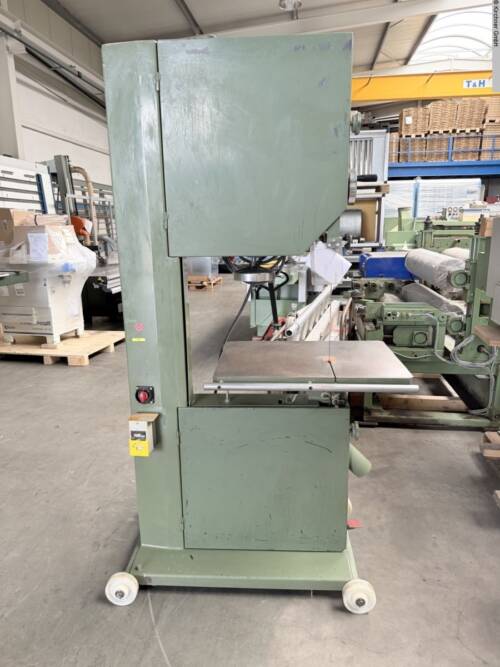

Description
- Heavy profile design with high dead weight
for maximum running smoothness
- Smooth and precise running thanks to torsion-free
Machine housing
- Large grey cast iron saw table made of
one piece, swivelling from 0° to + 45° with
ground and polished surface
- Large cast parallel stop
- Fast and precise cutting height adjustment via
Handwheel and gear rack with millimetre scale
- With angle stop as standard
- Precision 3-roller band saw blade guide with guide rollers
top and bottom, with fine adjustment
- Eccentric quick-release lever. The basic tension adjustment
is not changed, with integrated band saw blade
Voltage display
- The saw table is mounted on a double rocker support,
Simple and quick fixation of the adjusted
Tilt angle via quick release
- Eccentric quick-release lever
- The basic voltage setting is not changed
- With integrated saw blade tension indicator
- The solid grey cast iron saw table is easily and conveniently
adjusted via a handwheel rack and pinion guide
- The inclination is infinitely adjustable from 0° to 45°
- Quick and easy fixing of the set tilt angle using the
Quick clamping
Technical data:
Worktable dimensions 750 x 530 mm
Cutting speed 1400 m/min.
Flywheel diameter 530 mm
Max. cutting height 350 mm
Max. cutting width with stop 465 mm
Max. cutting width without stop 510 mm
Saw blade length 4190 mm
Precision guide top/bottom
Saw table inclination 0° - + 45°
with gear rack + handwheel
Motor power 400 V/50 Hz/P2 3.75 kW
Weight 305 kg
Dimensions1000x720x2040 mm
Suction nozzle diameter 2 x 100 mm
included:
1 band saw blade set, length 4190 mm, 3-piece
Item no. 515 5313 SET
Storage location 97447 Gerolzhofen
