Description:

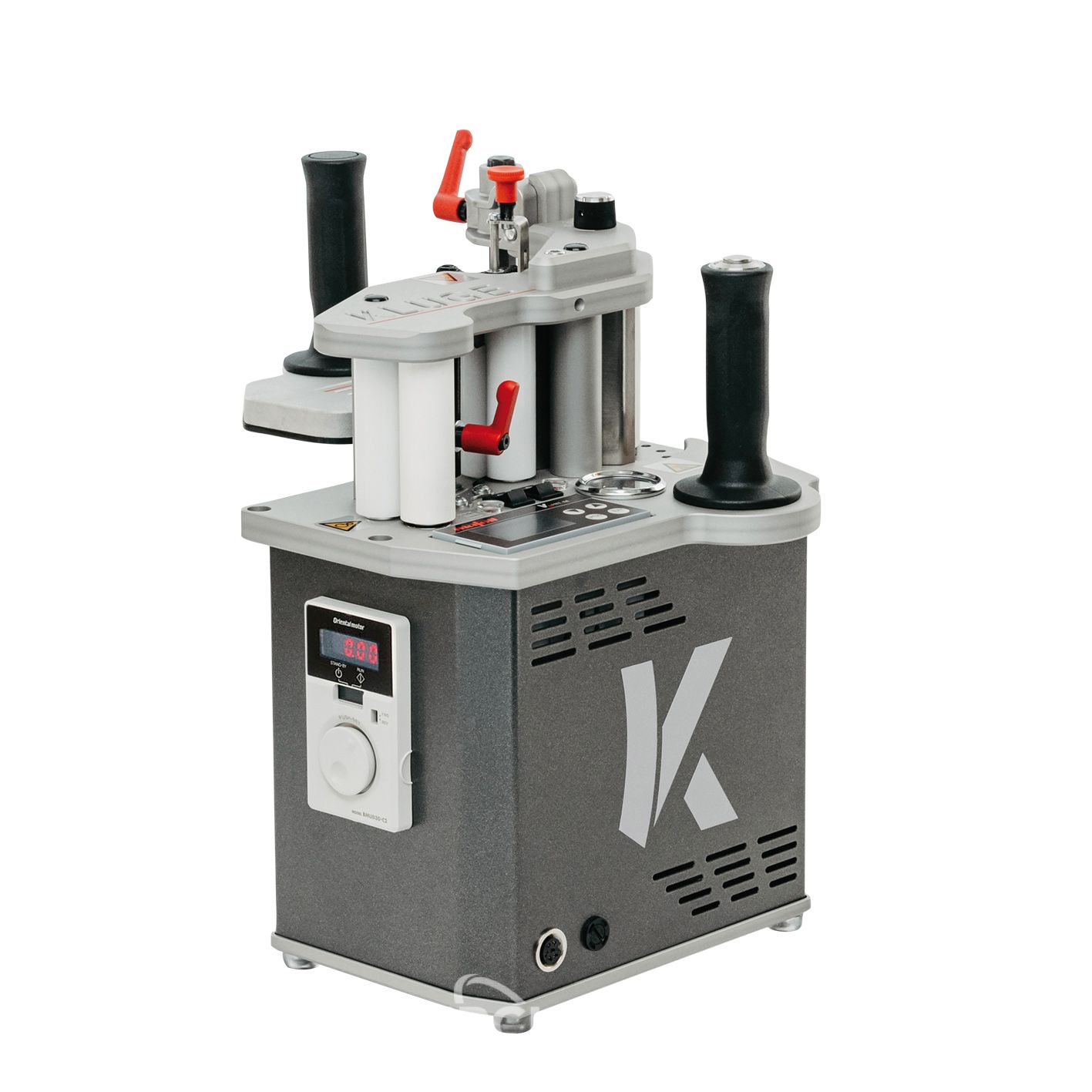

All standard zero joint edges with a material thickness of 0.4 mm - 3 mm can be processed with the HIT-M.
Locking of the angle setting for the most common bevelled edges and freely adjustable angle up to 55° or 50° on the BAT processing table.
Free-form shapes and external radii are standard applications for the HIT-M. Even internal radii from 10 mm can be realised effortlessly.
A clear arrangement of the controls makes working with the HIT-M simple and intuitive.
Technical data:
Rated voltage 230 V
Nominal power consumption 3050 W
Edge height 10 - 65 mm
Swivelling range 0 - 50 °
Edge thickness 0.4 - 3.0 mm
Inner radius min. 22 mm
Heating time 30 s
Temperature max. 520 degrees Celsius
Infinitely variable feed rate 1 - 5.5 m/min
Weight 10.8 kg
Dimensions (L x W x H) 220 x 160 x 360 mm
Compressed air connection 6 - 10 bar
