Description

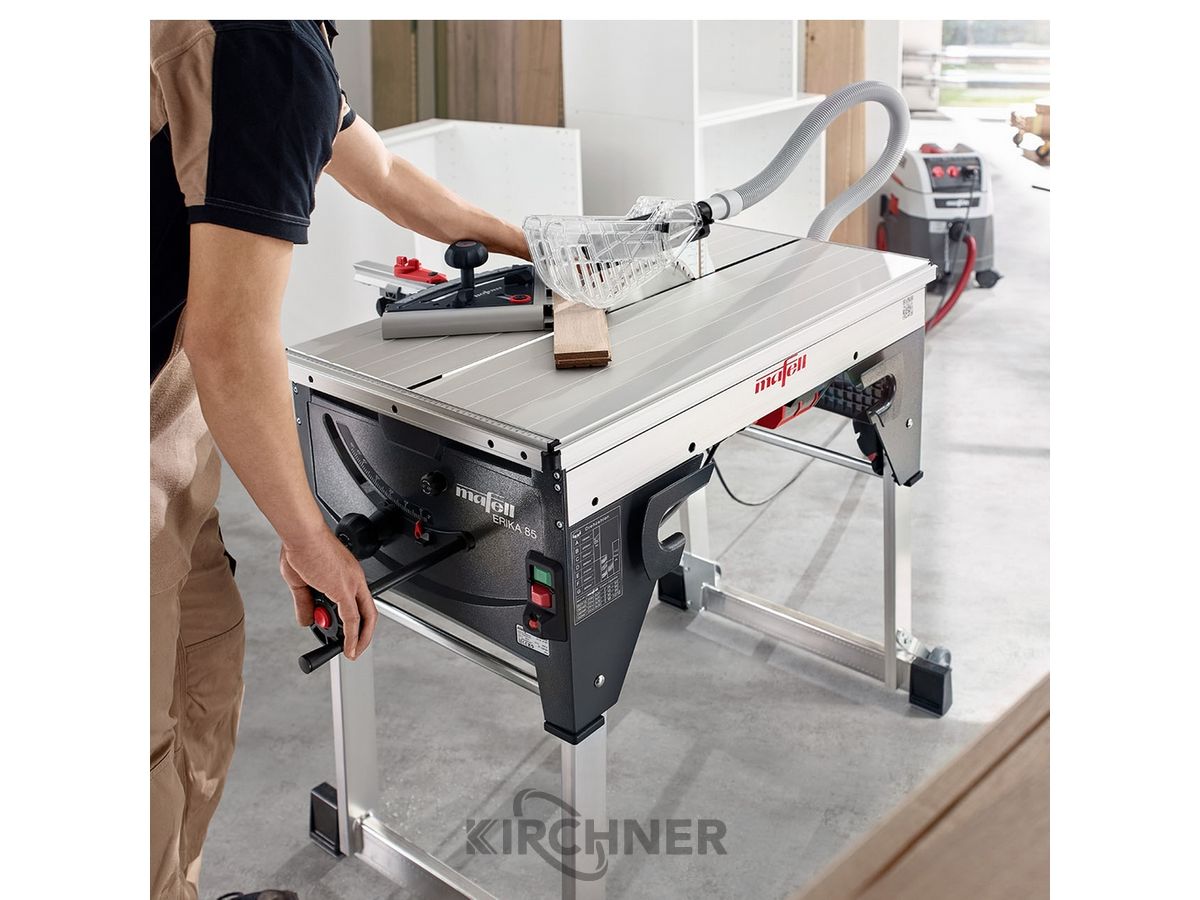

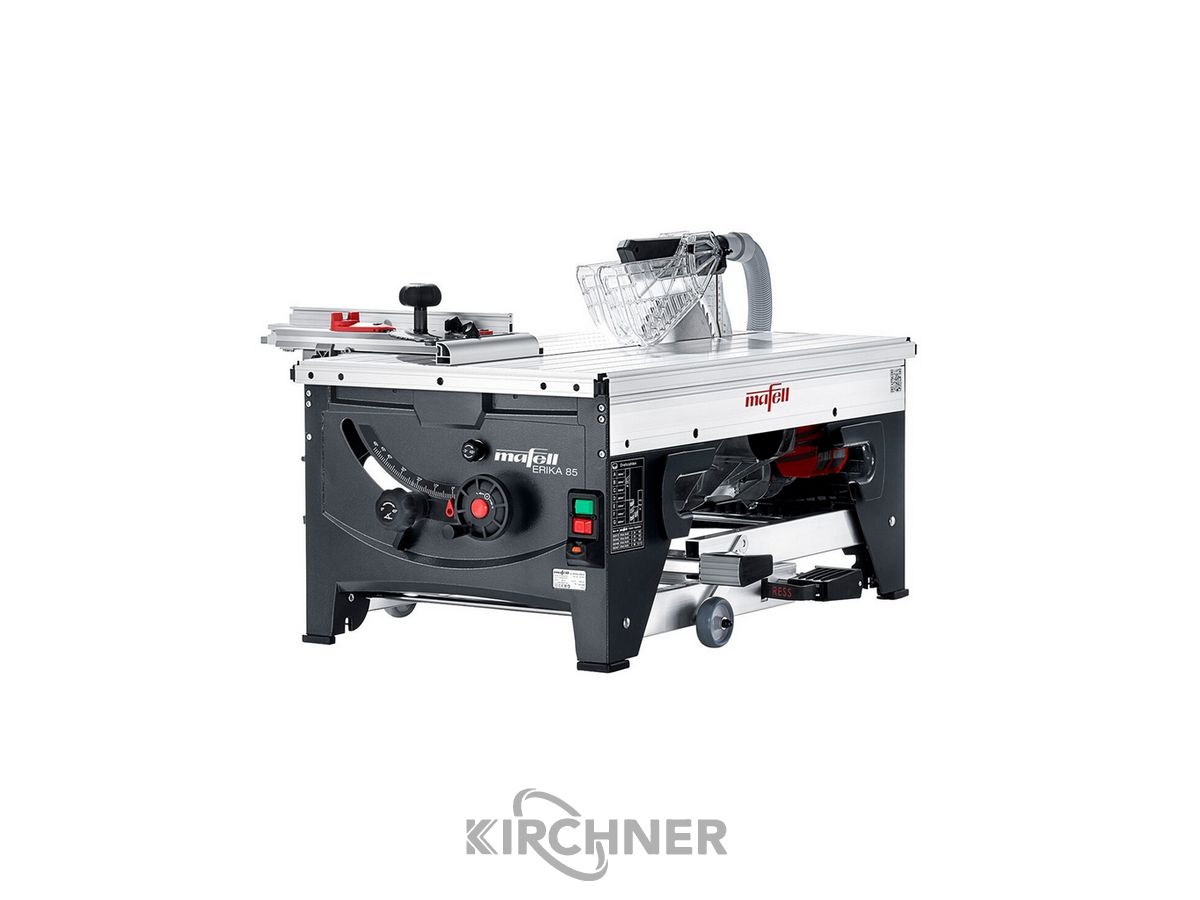

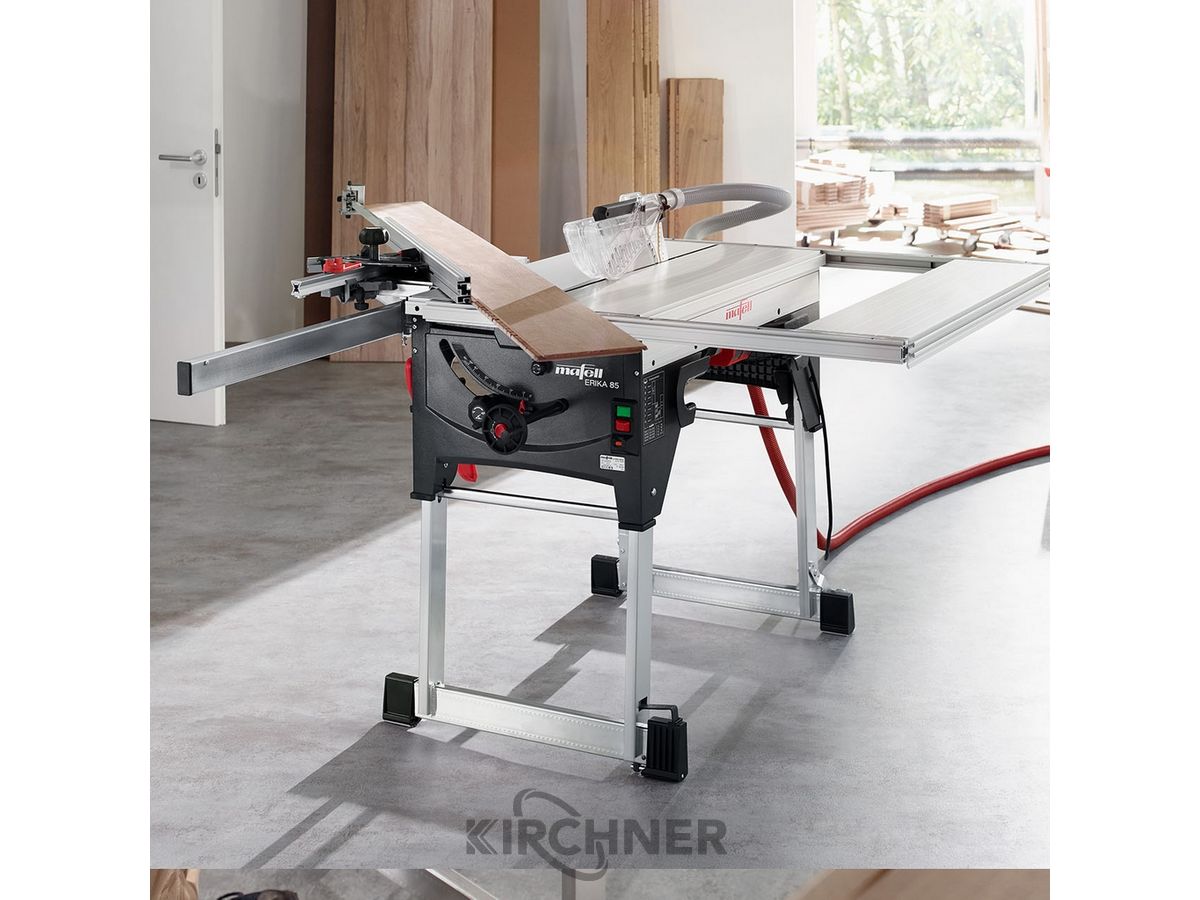

Description: As the world's first underfloor pull saw, the ERIKA has become the epitome of mobile sawing since its introduction. With almost 40 years of experience, the current generation has everything on board that users expect from a modern underfloor pull saw. The ERIKA is a reliable partner on any construction site. With the fence system, which is included in the basic equipment, cross cuts, rip cuts and mitre cuts can be made effortlessly with the highest precision. Countless clever detailed solutions make the ERIKA a convenient all-rounder for a wide variety of cuts and materials. The ERIKA 85 in particular is also ideal for cutting solid wood thanks to its large cutting height and length. Even large workpieces can be processed effortlessly with the ERIKA. A range of useful special accessories makes it possible. They significantly extend the ERIKA's range of applications. Advantages: New dust channel revolutionises extraction - for even less dust when working. Lightest underfloor pull saw in its class - for fast and effortless transport. Adjustable speed - for individual processing of wood, plastics or aluminium profiles. With voltage drop switch to prevent uncontrolled restarting after a power interruption. Area of application: Cross-cut and rip cuts Circular table saw function Bevelled cuts up to 48° Material use e.g. solid wood, panels, parquet: Solid wood, panel materials, parquet and laminate, aluminium profiles, plastic
Technical data: Cutting height: -1 - 85 mm Cutting height at 45°: -1 - 59 mm Pull length: 430 mm Rated power input: 2,500 W Swivelling range: -3° - 48° Weight (incl. multifunction fence): 40 kg Cutting speed: 26.8 - 56.3 m/s Rated idle speed: 2.050 - 4,300 1/min Universal motor: 230 V/50 Hz Working surface table top: 525 x 915 mm Working height with stationary device: 891 mm Working height without stationary device: 415 mm
Scope of delivery: 1 Erika 85 underfloor pull saw 1 saw blade HM 250 x 1.8/2.8 x 30 mm, Z 40, WZ 1 multifunction fence MFA 1 clamping piece 1 push stick 1 hexagon spanner 6 mm 1 extraction set with 2 nozzles 1 quickstand 1 wheel attachment kit 1 connection cable 4 m
