Description
- NEW -

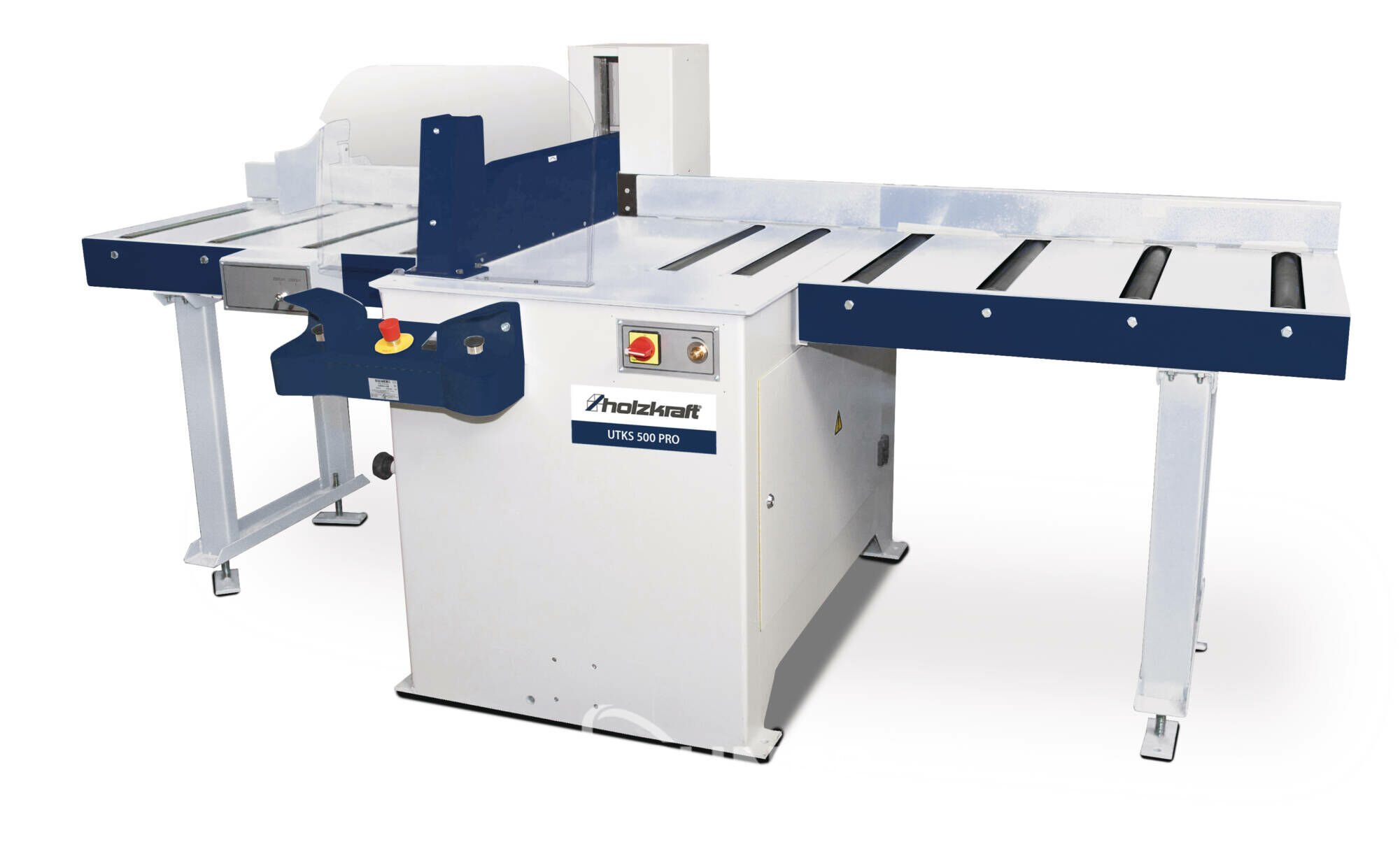

Description:
- Robust welded steel construction
- Workpiece is automatically fixed with each cut by the saw blade cover
- The saw blade is moved upwards via a pneumatic cylinder and plunges back into the machine body after each cut
- Saw blade feed infinitely variable via adjusting screw on the front of the machine
- Effective chip and intrusion protection made of Plexiglas
- High operating safety thanks to two-hand control
- Standard with 1 metre roller conveyor to the left and right of the machine, as well as material stop with scale
- Saw blade change via large side door
Technical data:
General information
Saw blade speed(s) 3000min¯¹
Saw blade diameter 500mm
Saw blade bore 30mm
Saw blade thickness 4mm
Mitre angle no
Suction nozzle diameter 125mm
Sound pressure level89dB(A)
Dimensions and weights
Length (product) approx. 3000mm
Width/depth (product) approx. 1600mm
Height (product) approx. 1500mm
Weight (net) approx. 700kg
Electrical data
Drive motor output 6kW
Motor speed 2900min¯¹
Total current consumption 15.5A
Supply voltage 400V
Mains frequency 50 - 60Hz
Standards and authorisations
EMC class A
Pneumatic connection
Air requirement approx. 33l/min
Pneumatic working pressure 6 - 8 bar
Cutting areas
Cutting capacity 0° (square) solid material 160 x 160mm
Cutting capacity 0° (rectangular) solid material 400 x 100mm
Scope of delivery:
- 1 m feed roller conveyor, to the right of the machine
- 1 m discharge roller conveyor including manual material stop with scale, to the left of the machine
Item no.: 5651500
