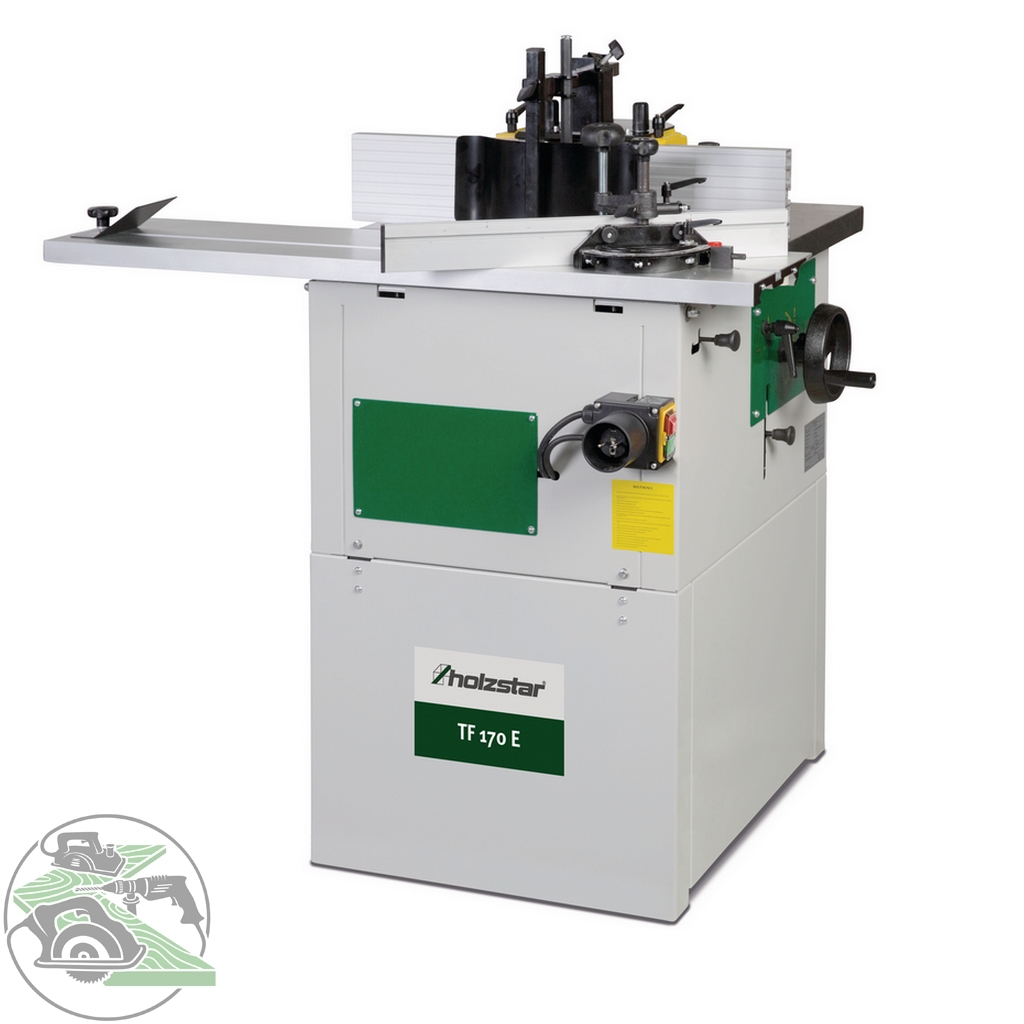

Description
- NEW -
Description:
- With aluminium sliding carriage and rigid milling spindle
- Smooth-running format sliding carriage for precise
Workpiece guide
- Milling fence with finely adjustable aluminium stops
- Quick and easy speed change by means of
Multi V-belt
- Large work surface with torsion-free grey cast iron table
- Milling unit made of grey cast iron
- Hold-down device for precise workpiece guidance
Scope of delivery:
- Substructure
- Spindle protection
- Milling fence
- Milling spindle with collet chuck
Technical data:
Length 1000 mm
Width/depth 900 mm
Height 1140 mm
Length max. 1000 mm
Width/depth max. 950 mm
Height max. 1170 mm
Weight (net) 96 kg
Drive motor power 1.1 kW
Input power 1.5 kW
Supply voltage 230 V
Phase(s) 1 Ph
Current type AC
Mains frequency 50 Hz
Worktable length 600 mm
Worktable width 400 mm
Table height 850 mm
Sliding carriage length 1000 mm
Sliding carriage width 218 mm
Sliding carriage height 850 mm
Milling spindle stroke 105 mm
Spindle protrusion max. over table 105 mm
Spindle speed(s) 1400/4000/6000/9000 min-1
Tool diameter max. 160 mm
Spindle diameter 30 mm
Item no. 5901917
Storage location 97447 Gerolzhofen
