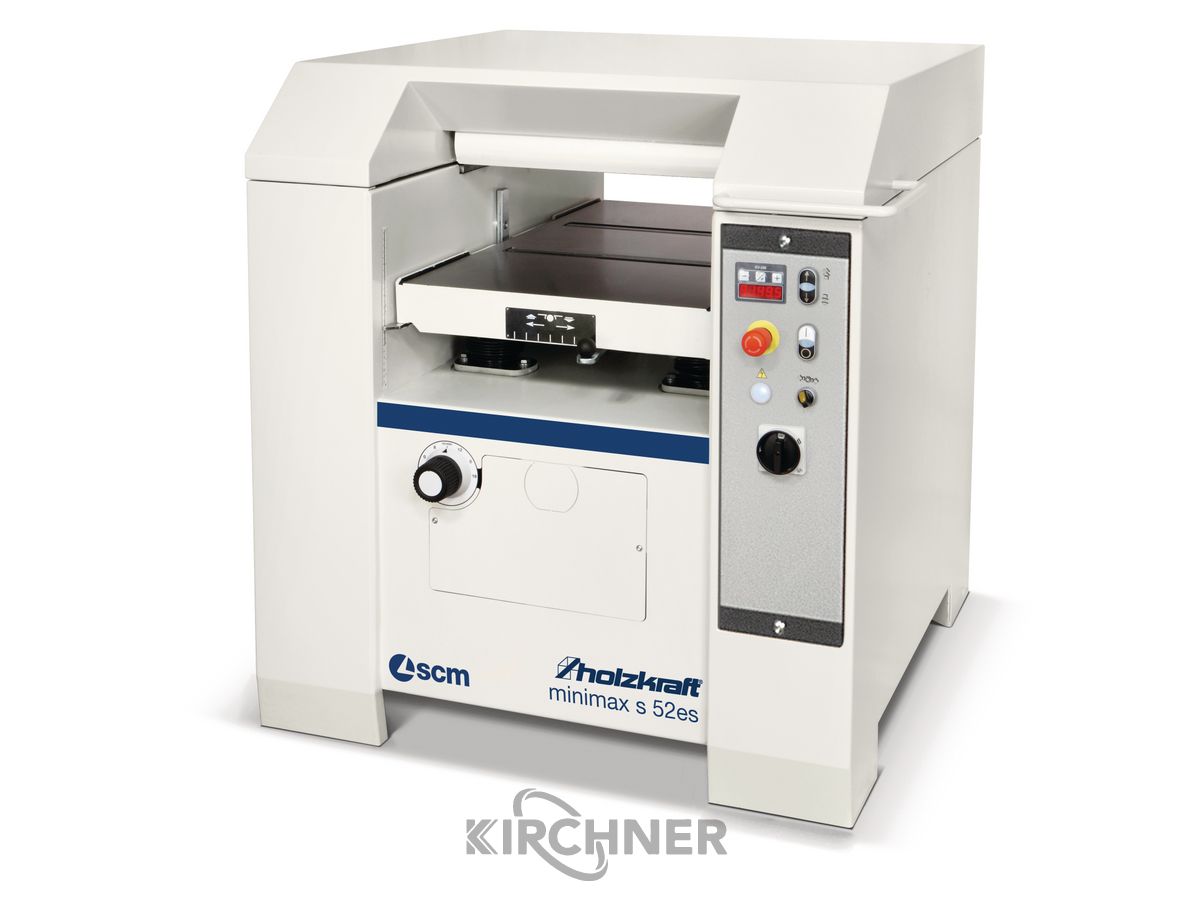

Description
- new -
Description:
- 4-blade shaft for the best planing results
- Smooth running due to precision unit
and thanks to the heavy cast design
- Front steel feed roller with
Helical gearing for an optimum feed rate
- Satin-finished steel pull-out roller, optionally with
Rubber roller in the pull-out
- The worktable is mounted on four large pillars
stored under all working conditions
ensure maximum stability.
- The thickness table is adjusted via a
Handwheel with numerical display for the
Set planing height (accurate to 1/10 mm)
- With two feed speeds as standard,
Conveniently selectable from the front panel
- Powerful industrial motor
- Sturdy grey cast steel construction
Equipment details:

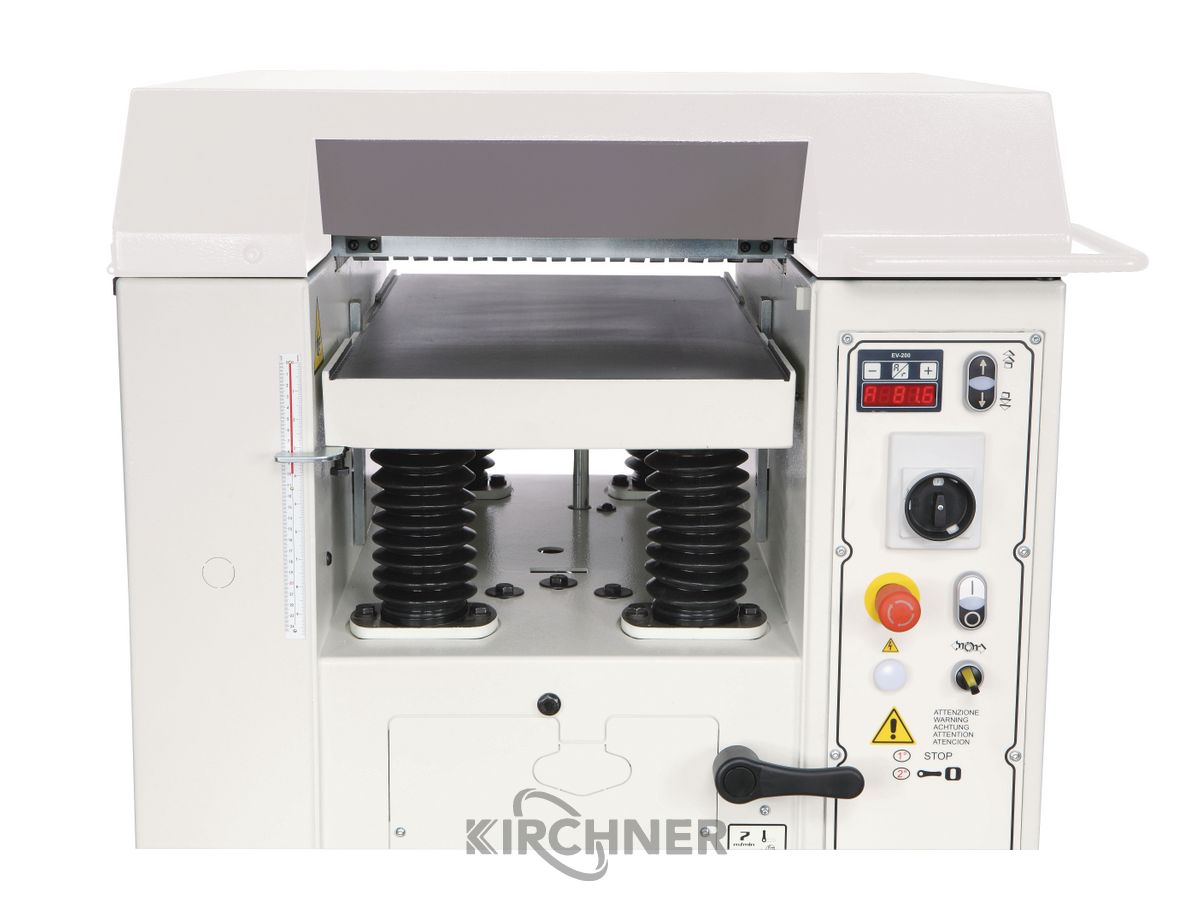

Work table
Mounted on four large-dimensioned spindles,
the greatest of all working conditions
Ensure stability
- The special lifting device keeps the
Table position even without locking
perfectly preserved
Tersa planer cutterblock
- No more adjusting and screwing
- Changing planing knives in seconds
- Self-locking
- Particularly quiet
Thickness adjustment for S 41 elite s
- via a handwheel with numerical display
for the set planing height (accurate to 1/10 mm)
Motorised thicknessing table height adjustment for S 52 elite s
- Height adjustment of the thicknessing table
motorised with electronic decimal display
- For greater precision and more
User friendliness
- Optional for model S 41 elite s when ordering
Available ex works
Technical data:
Dimensions and weights
Length approx. 1080 mm
Width/depth approx. 1440 mm
Weight approx. 455 kg
Suction connection
Suction nozzle diameter Thickness 120 mm
Thickness
Working height min. 3 mm
Working height max. 240 mm
Working length min. 220 mm
Chip removal max. 5 mm
Electrical data
Drive motor power 7 kW
Supply voltage 400 V
Mains frequency 50 Hz
Planing cutterblock
Type TERSA
Number of planing knives 4 pcs
Speed 5000 min¯¹
Planing width max. 520 mm
Feed rate
Speed 5/8/12/18 m/min
Scope of delivery:
- 4 feed speeds in the wood infeed
- 4-blade Tersa planing shaft
- Motorised height adjustment of the
Thicknessing table with digital display
- Rubber pull-out roller
Item no. 5503526
