Description
- new -

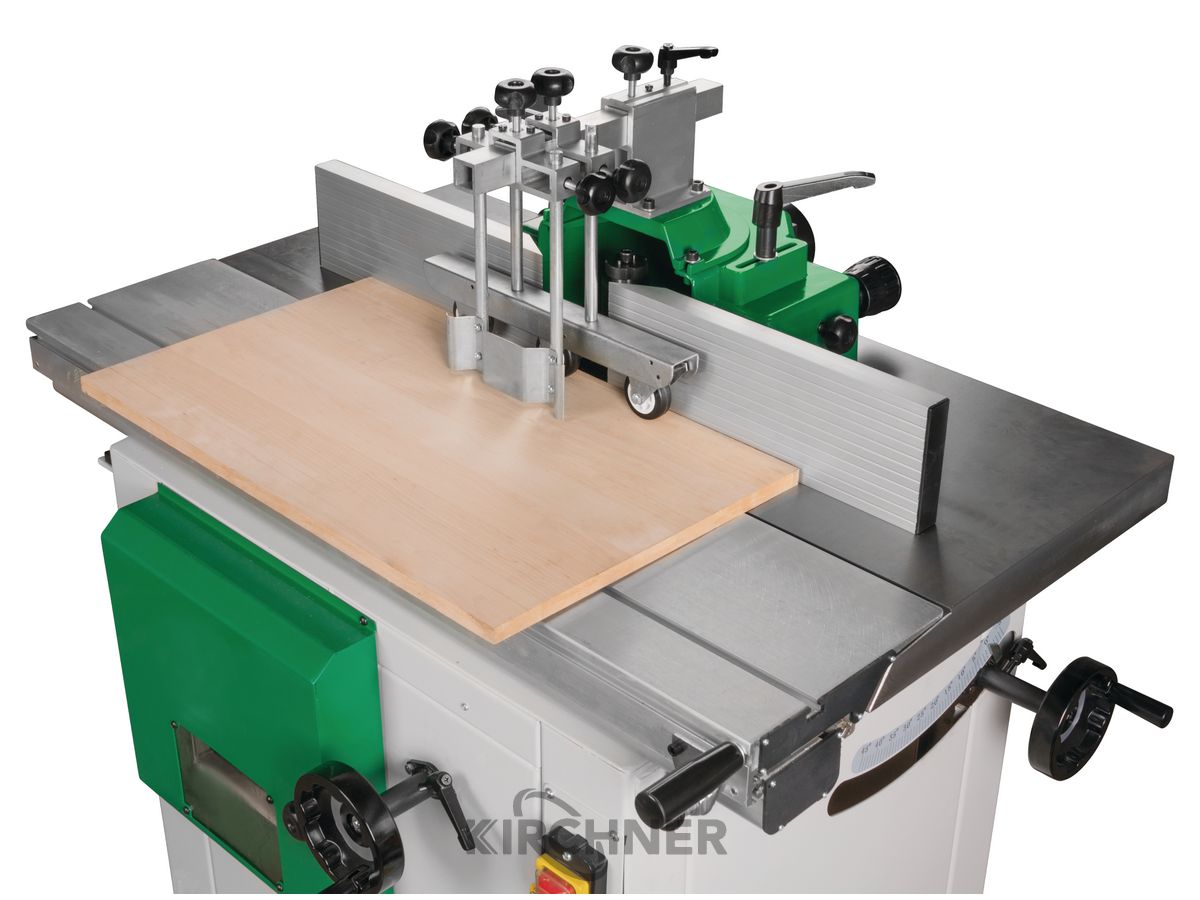

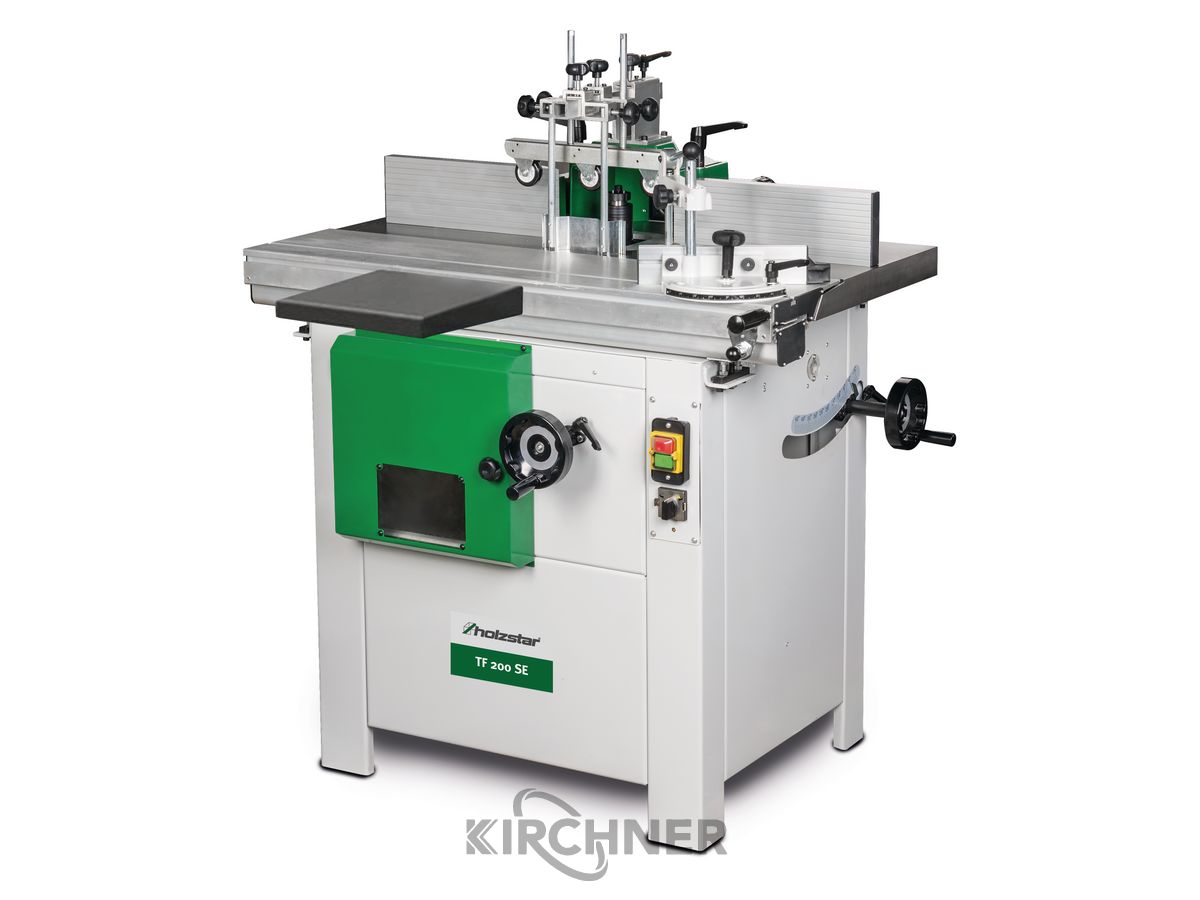

- Table milling machine with aluminium sliding carriage and
swivelling milling spindle
- Smooth-running format sliding carriage for a
Precise workpiece guidance
- Milling fence with finely adjustable aluminium
Stops

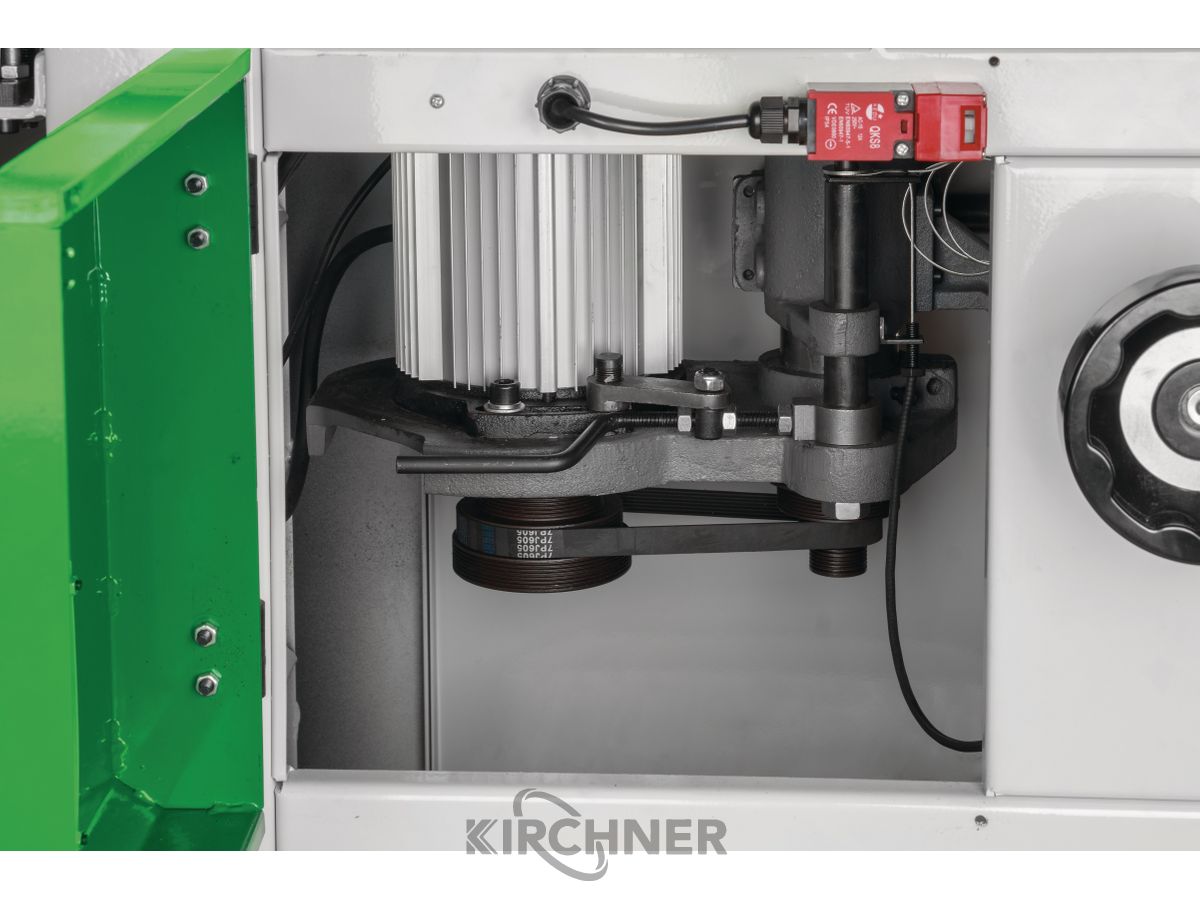

- Quick and easy change of speed
by means of multi V-belts
- Large work surface thanks to the solid and
Winding-free grey cast iron table

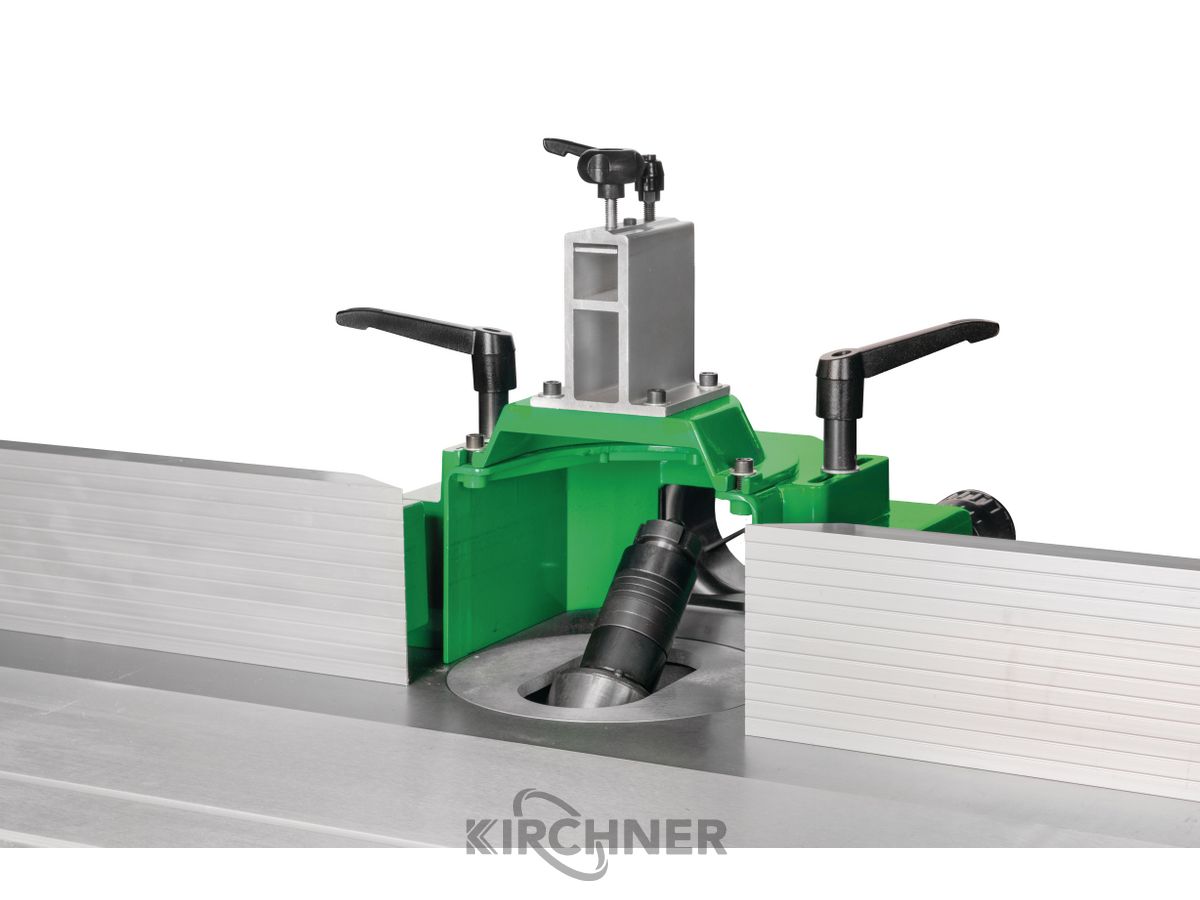

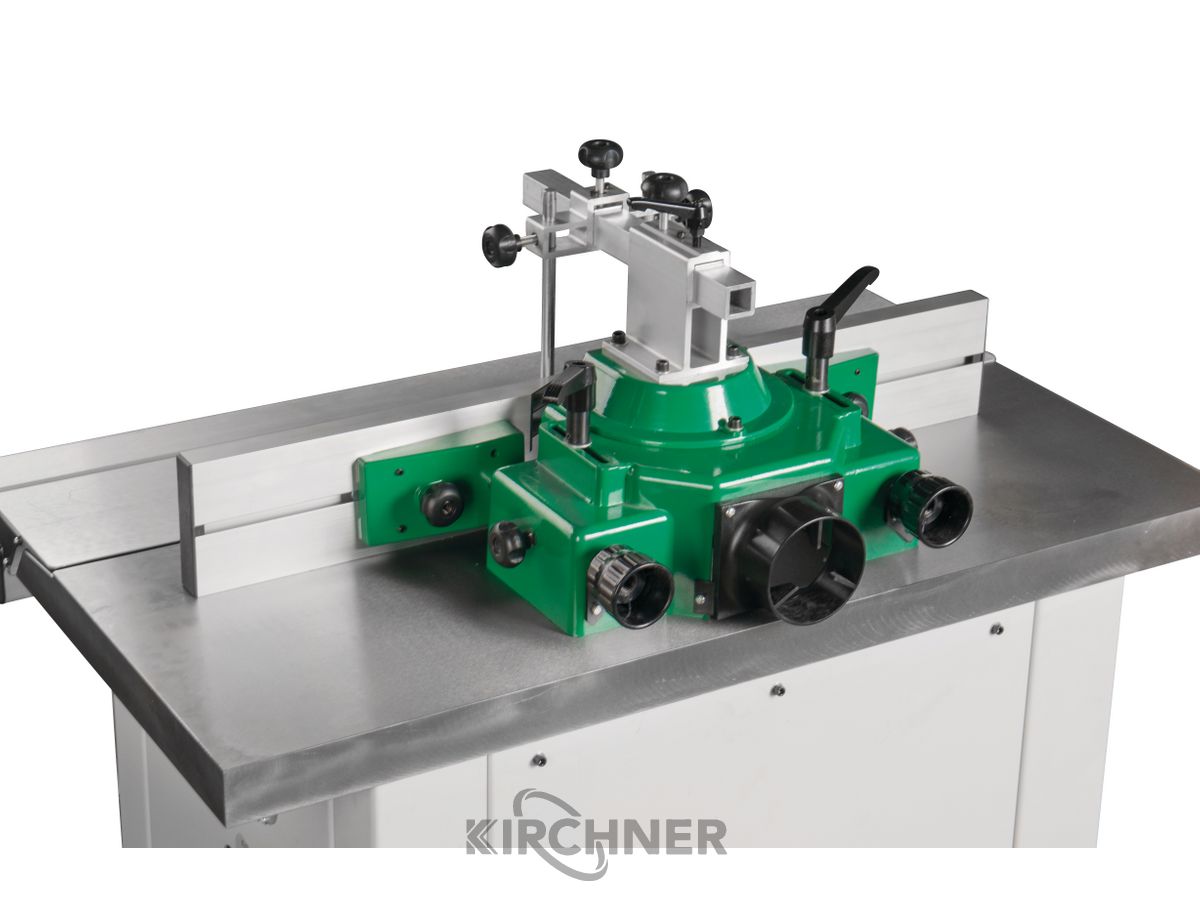

- Large milling unit made of grey cast iron,
swivelling from +5 to -45°
- Selector switch for clockwise or anti-clockwise rotation of the milling machine
spindle
- Backward swivelling milling spindle for
optimal use of a feed unit,
maximum safety and a clean
Milling pattern
- Hold-down device for precise workpiece guidance
- Outrigger table available as an accessory
Scope of delivery:
Mitre fence
Hold-down device
Milling protection bonnet
Technical data:
Dimension aluminium sliding carriage 1000×240 mm
Usable length of the lockers l 100 mm
Spindle inclination +5 to - 45°
Tool Ø max. lowerable 180 mm
Milling spindle Ø 30 mm
Spindle speed 1800/3000/6000/9000 min-1
Suction nozzle Ø 100 mm
Working height 900 mm
Motor power 2.8 kW
Electrical connection 400 V
Mains frequency 50 Hz
Current type ~
Weight 218 kg
Dimensions (LxWxH) 1000 850×1200 mm
No. 5902000
