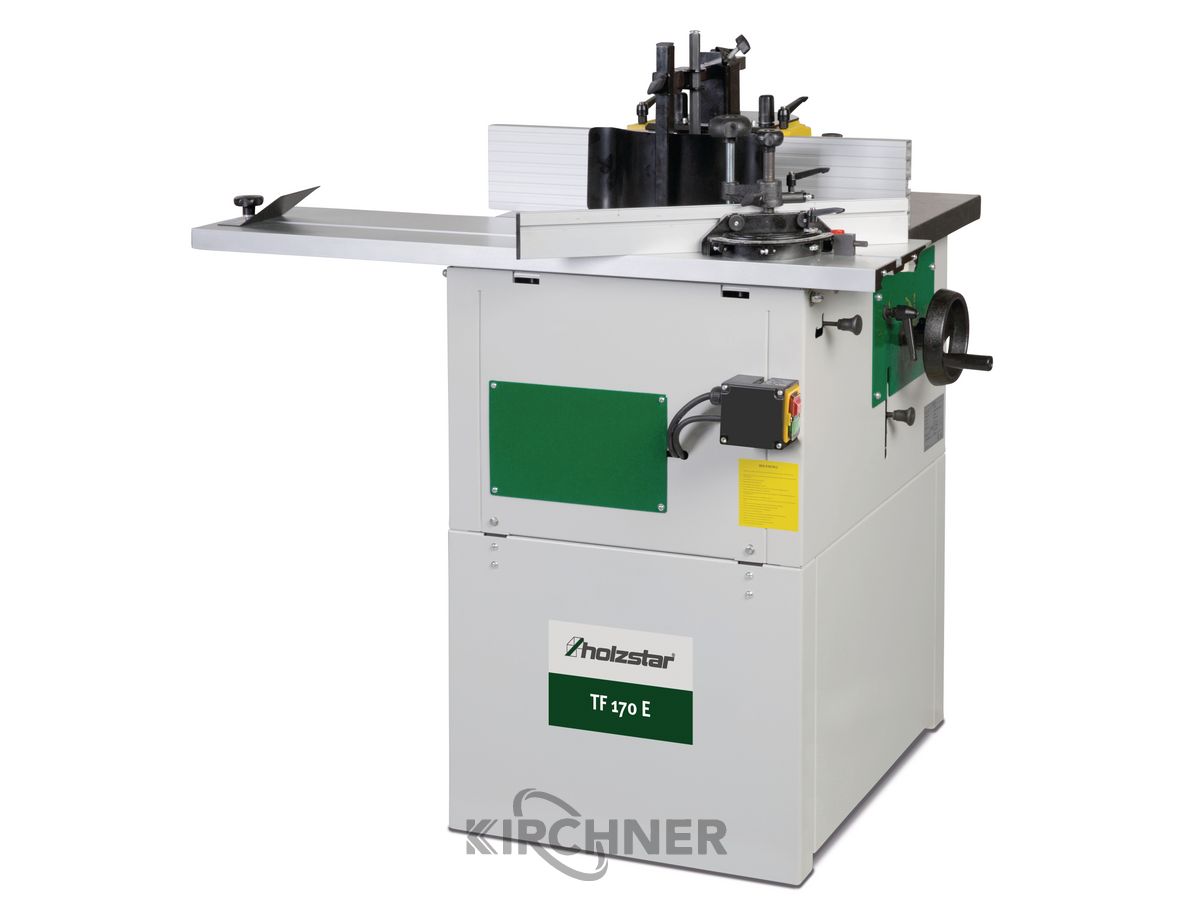

Description
- NEW -
Description:

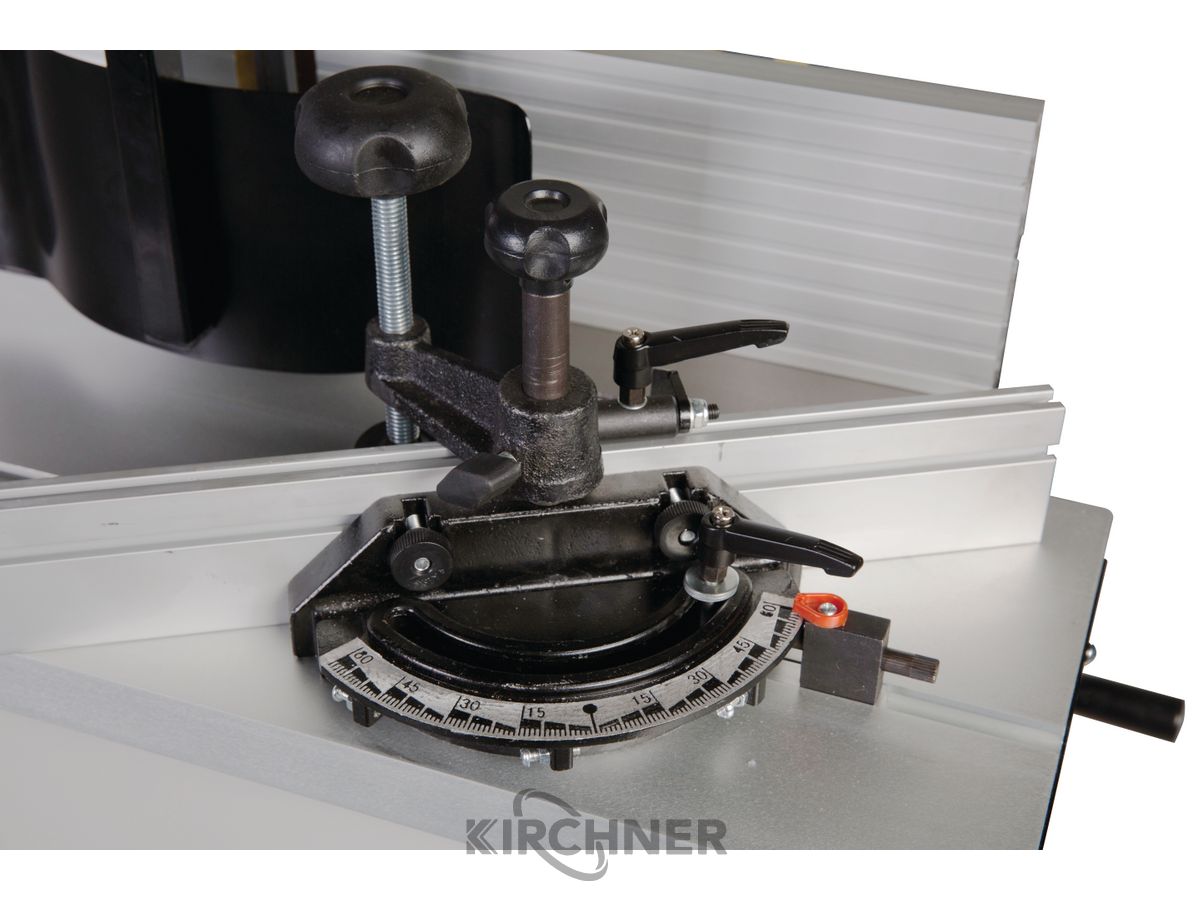

- Smooth-running sliding table
for precise workpiece guidance
- Milling fence with finely adjustable
Aluminium stops
- Quick and easy changing of the
Speed by means of multi V-belt
- Large work surface with torsion-free
Grey cast iron table

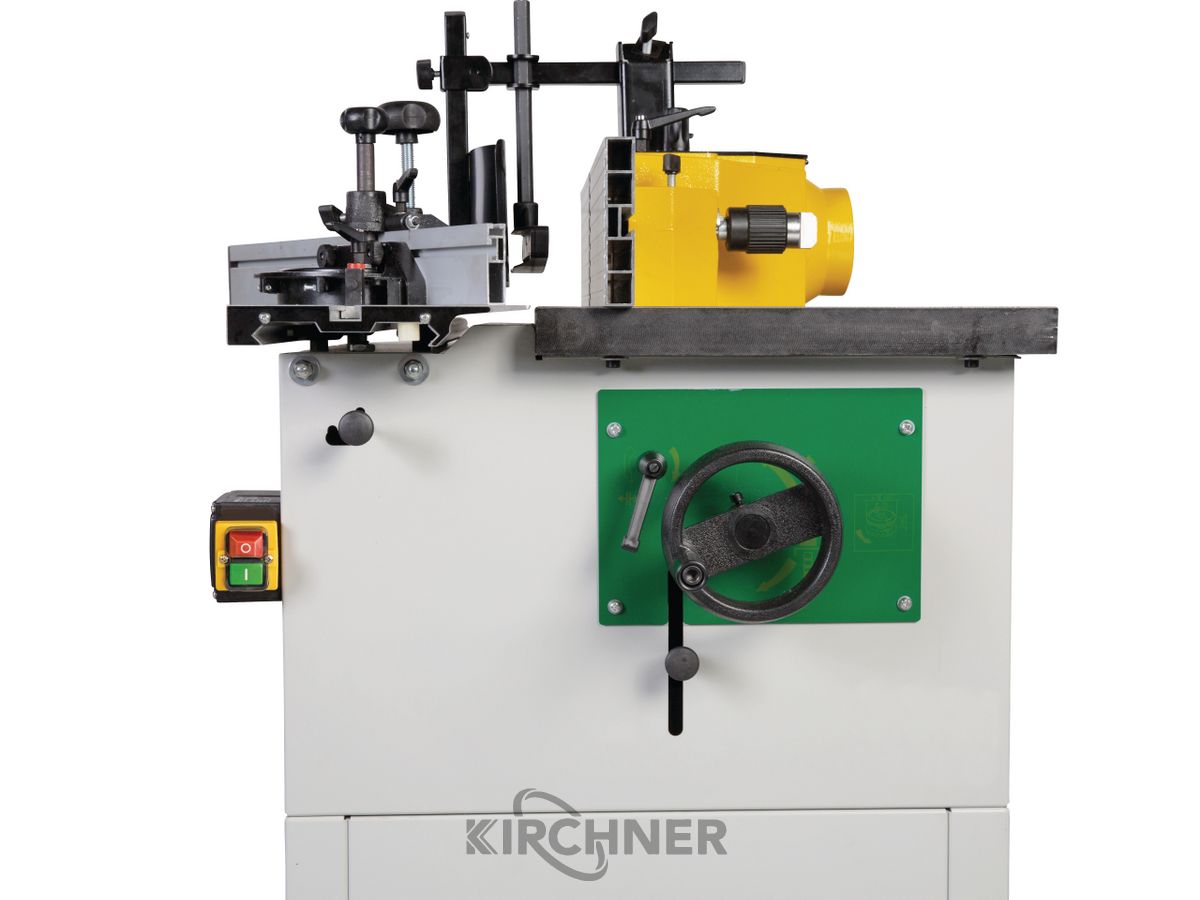

- Milling unit made of grey cast iron
- Hold-down device for precise workpiece guidance
Technical data:
Dimensions and weights
Length max. approx. 1000 mm
Width/depth max. 950 mm
Height max. 1170 mm
Length approx. 1000 mm
Width/depth approx. 900 mm
Height approx. 1140 mm
Weight approx. 96 kg
Work table
Length 600 mm
Width 400 mm
Table height 850 mm
Sliding carriage length 1000 mm
Sliding carriage width 218 mm
Sliding carriage height 850 mm
Electrical data
Drive motor power 1.1 kW
Input power 1.5 kW
Total connected load 1.5 kVA
Supply voltage 400 V
Mains frequency 50 Hz

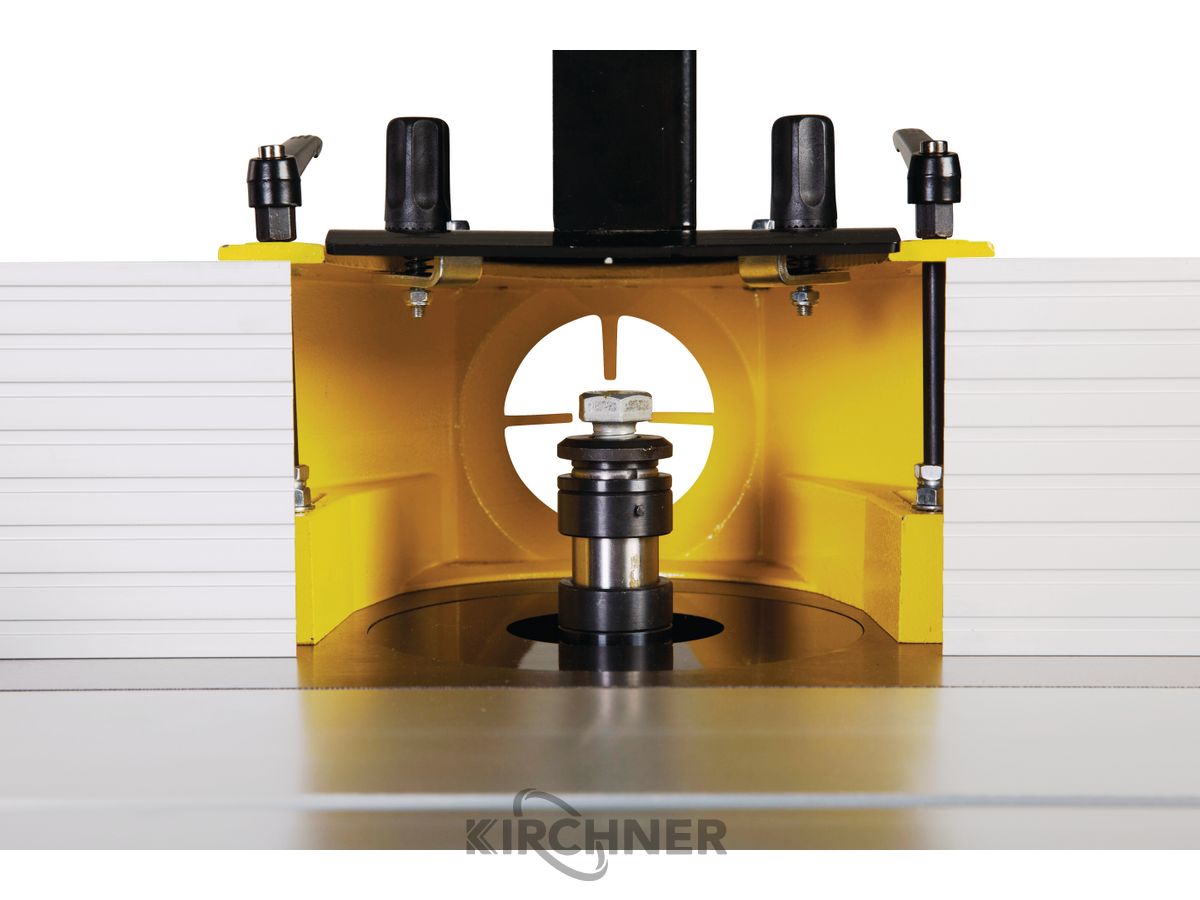

Milling spindle
Stroke 105 mm
Max. projection over table 105 mm
Speed(s) 1400/4000/6000/9000 min¯¹
Mandrel diameter 30 mm
Milling tool diameter max.
Tool diameter max. 160 mm
Explanation of tool diameter max. tenoning not lowerable
Scope of delivery:
-Substructure
-spindle guard
-Milling fence
-Milling spindle with collet chuck
Item no. 5901918
