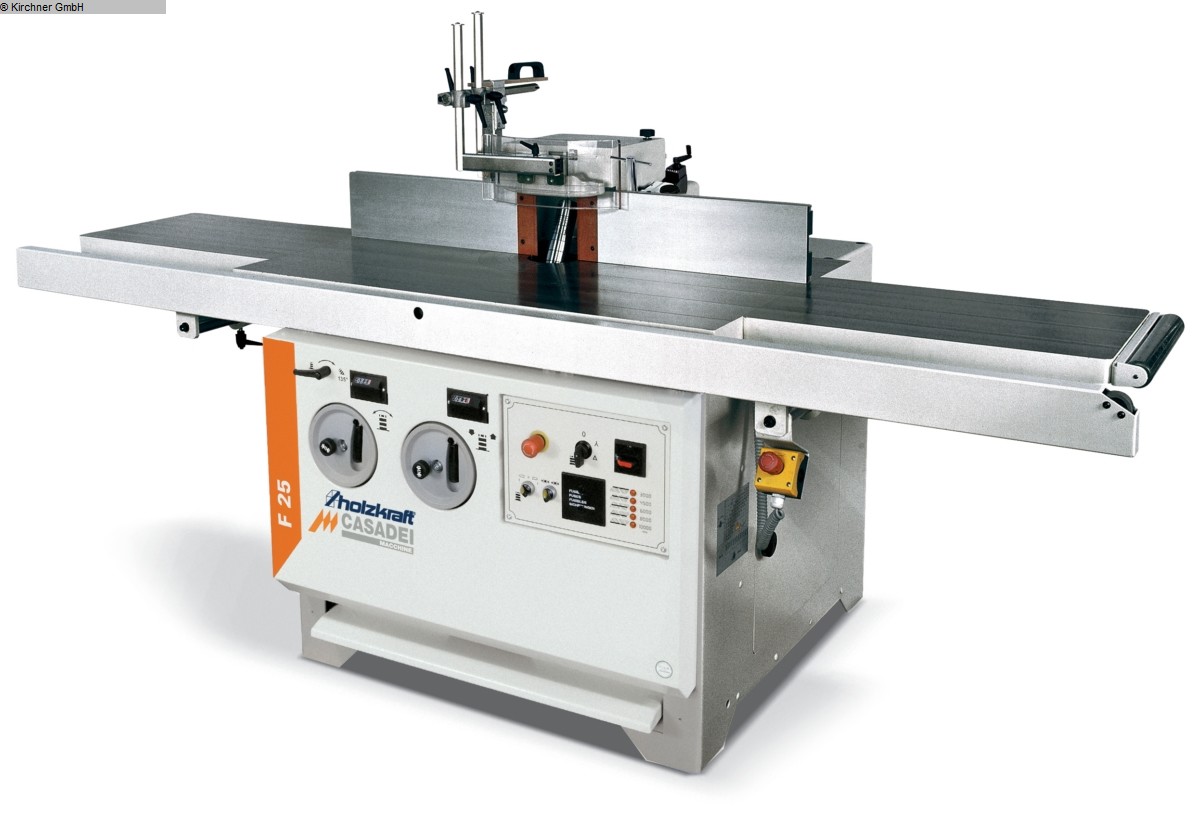

Robust craftsman's machine with 45° swivelling milling spindle on both sides and MK4 interchangeable spindle Sturdy grey cast steel construction Dynamically balanced milling unit anchored to the worktable Particularly robust design Smooth running thanks to precision units and high dead weight Right/left rotation and electronic blocking when changing direction as standard Five speeds from 3000 - 10000 min¯¹ The speed can be changed easily and conveniently from the machine side MK 4 interchangeable spindle system as standard Large grey cast iron worktable for lasting precisionLarge grey cast iron work table for lasting precision Easy handling thanks to operating elements and speed display on the front of the machine Large milling fence with fine adjustment and aluminium fence jaws as standard Fence adjustment via crank Numerical display of the set spindle height, accurate to a tenth Powerful industrial motors
Scope of delivery:
Technical data:
Dimensions and weights:
Weight (net) approx. 510 kg
_______________________________________
Suction connection:
Suction nozzle diameter stop 1 x 120 mm
Suction nozzle diameter machine 2 x 80 mm
_______________________________________
Work table:
Work table length 2500 mm
Worktable width 810 mm
Table height 923 mm
_______________________________________
Installation information:
Explanation Space requirement The dimensions take into account maximum travel distances or effective lengths.
Working range length 3700 mm
Working range width/depth 5000 mm
Explanation Working area Please add the specified dimensions to the space requirement to obtain the recommended free installation area for the machine.
_______________________________________
Equipment:

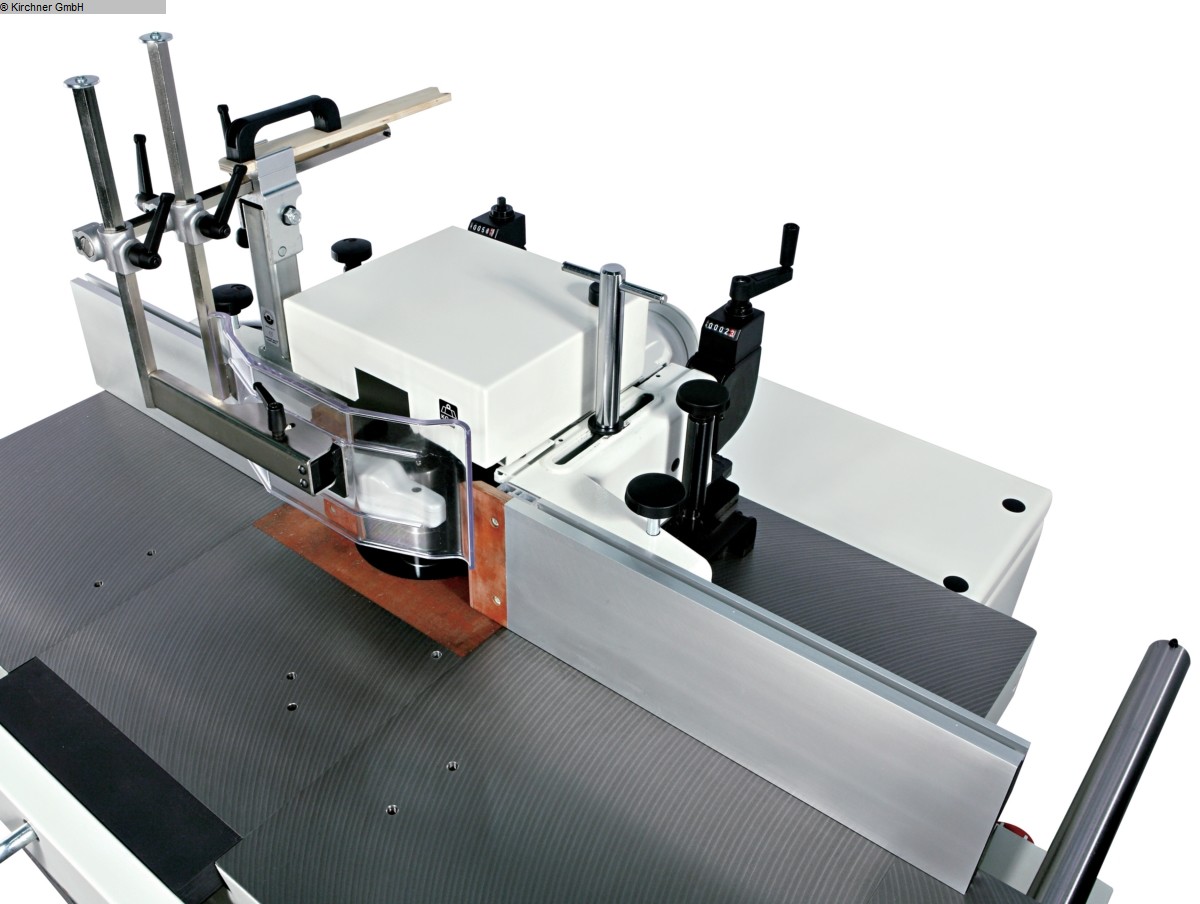

Milling fence Heavy-duty professional version with aluminium fence jaws and fine adjustment, adjustment from the front via crank handle with numerical digital display
Arc milling protective cover JA
Manual height adjustment of the spindle
Manual spindle tilt adjustment
Control manual height and swivelling adjustment of the milling unit

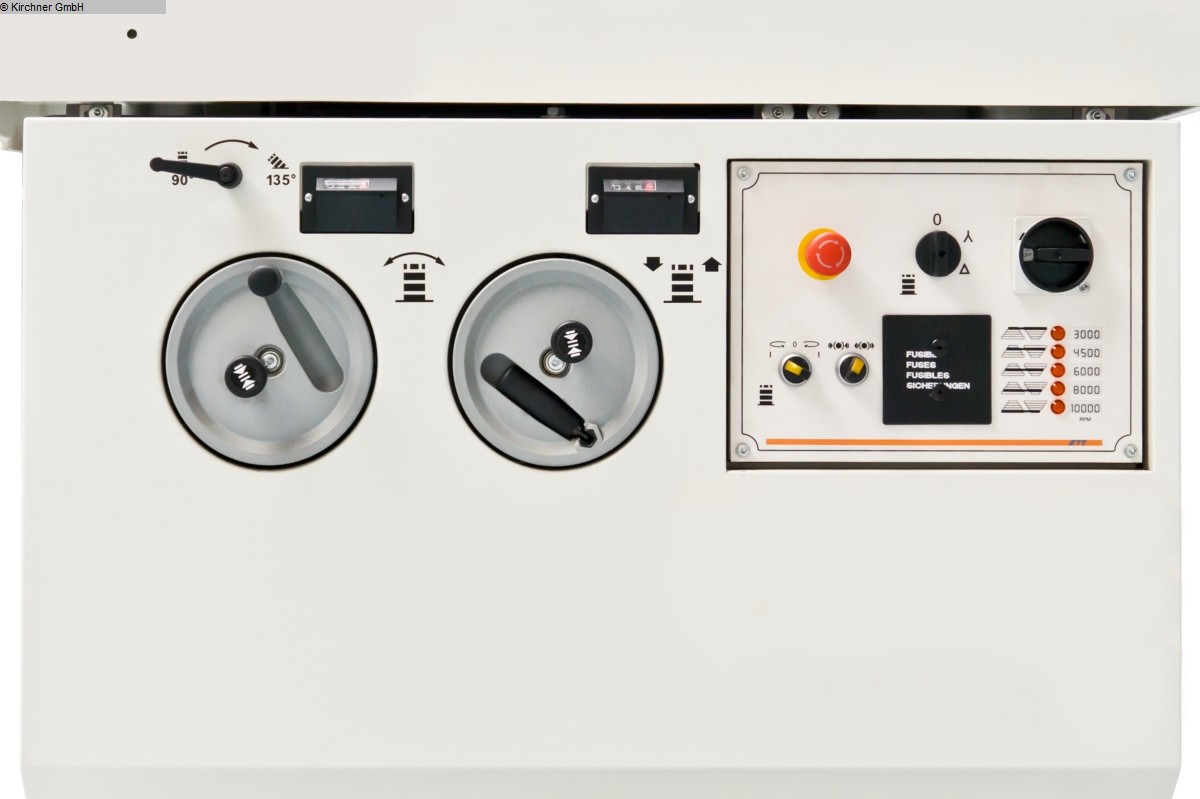

Position of the control elements on the machine body
Table version Table extension left and right and extendable workpiece support (total width 2500 mm)
_______________________________________
Electrical data:
Supply voltage 400 V
Mains frequency 50 Hz
Drive motor power 7.0 kW
_______________________________________
Milling spindle:
Spindle inclination -45 to +45 °
Effective length of the spindle 140 / 180 mm
Explanation of the effective length of the spindle for spindle Ø 30 - 35 / for spindle Ø 40 - 50 mm
Milling spindle stroke 90 mm
Interchangeable spindle MK 4
Spindle speed(s) 3000/4500/6000/ 8000/10000 min¯¹
_______________________________________
Milling tool diameter max:
Tool diameter max. lowerable 320 x 60 mm
Tool diameter max. profile milling 250 mm
Tool diameter max. tenoning 350 mm
Tool diameter max. form milling 160 mm
