Description
- NEW -

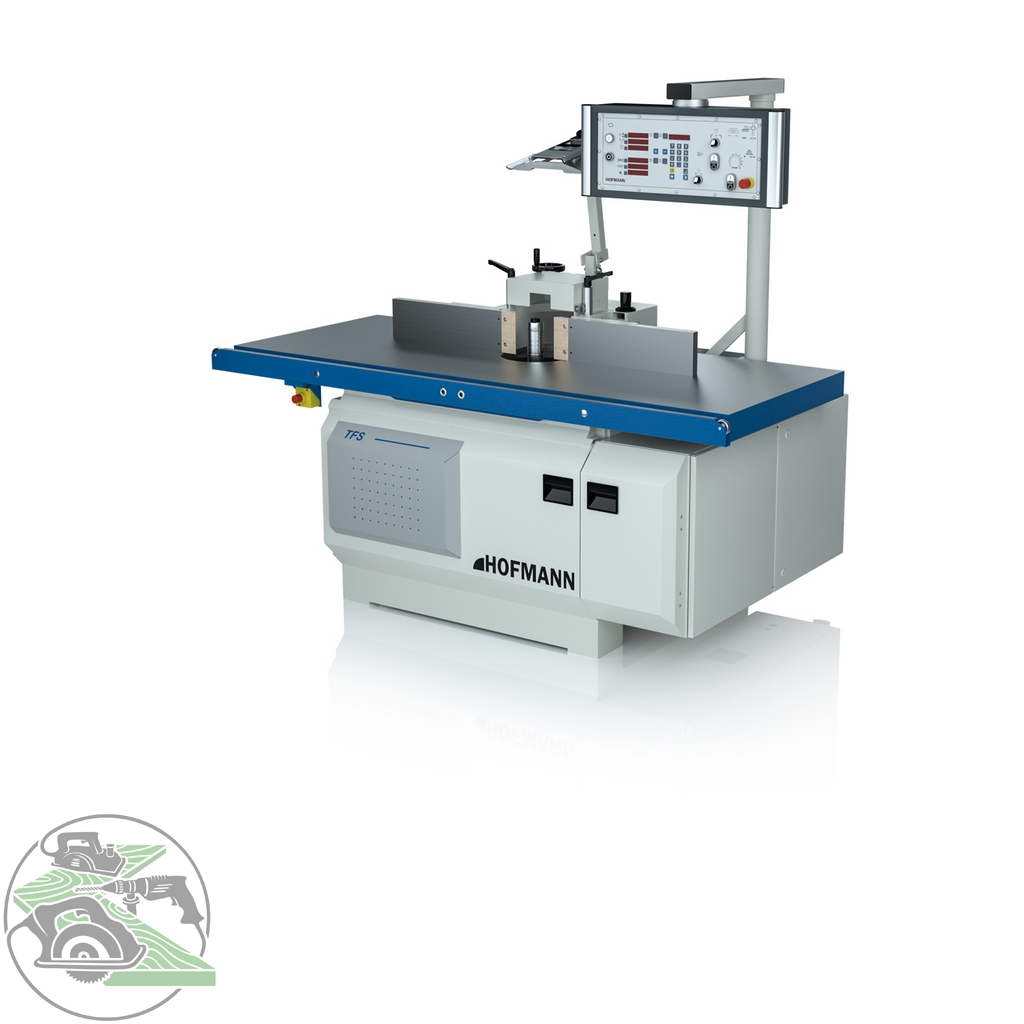

Make Hofmann
Type TF/TFS 1245 Automatic
- Automatic preselection for height adjustment (and swivelling adjustment for TFS 1245) with
subsequent positioning
- Keyboard for entering dimensions and programme positions
- LED display for the setpoint/actual value
- 99 programme memory locations for recurring measurements
- Reset (incremental dimension function) for "Height" axis (optional axes such as stop and
function stand can also be positioned with this)
Technical data:
Table width 815 mm
Table length * 1,250 mm
Table height 890 mm
Table rings-D * 420/252/206/105/66 mm
Swivelling range ** - 45.5 to + 45.5°
Milling spindle D * 30 mm
Clamping length * 140 mm
Spindle height adjustment max. 150 mm
Height adjustment range functional stand (optional) 0-175 mm
Motor power * 7.5 kW
Speeds * 3,000/4,500/6,000/9,000 rpm.
Suction nozzle-D (2 pieces) 120 mm
Minimum air flow 1440 m3/h
Weight 950 kg
Installation depth 1195 mm
* Standard specifications, optionally expandable
** only for TFS 1245, as TF 1245 cannot be swivelled
ex works
