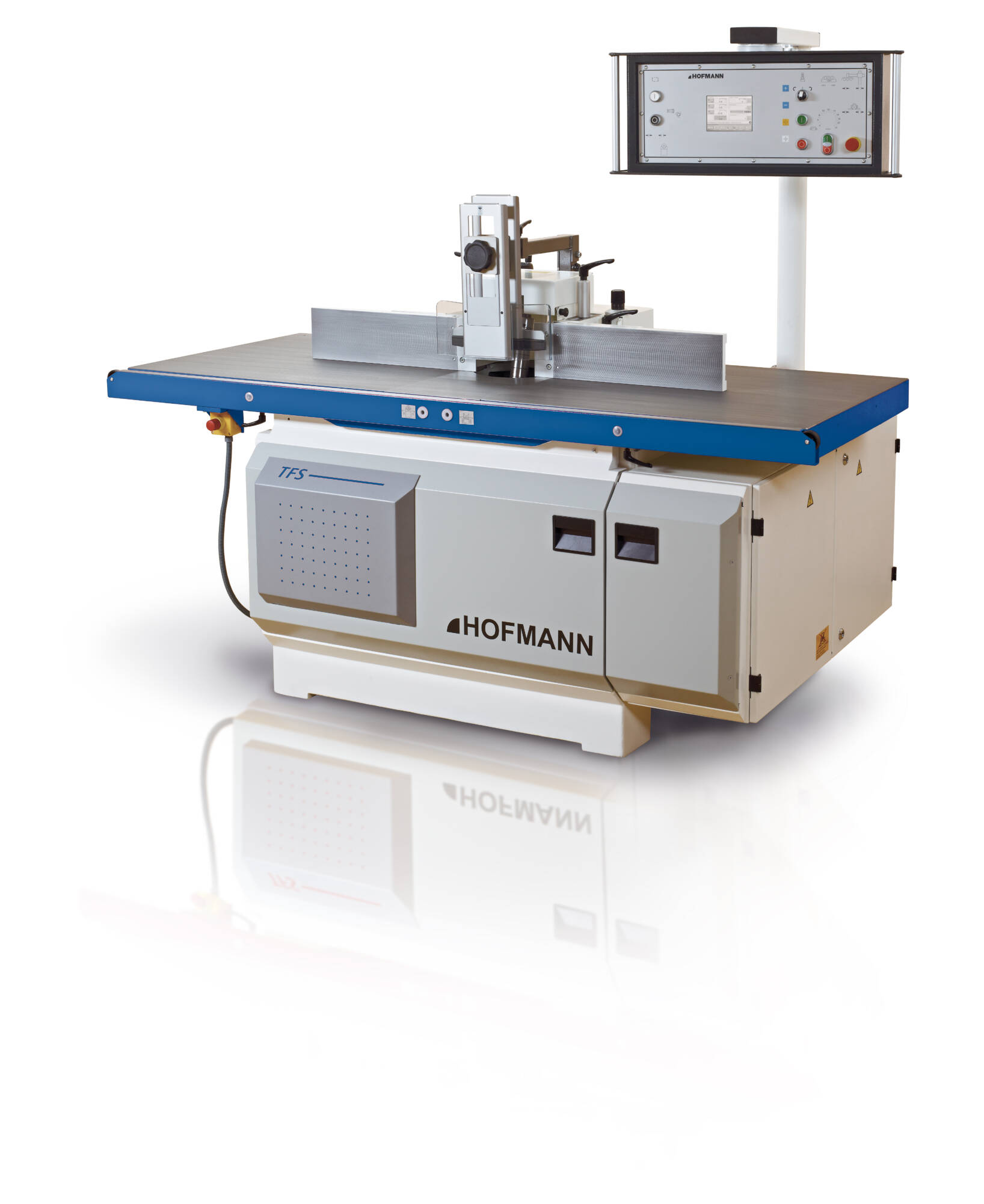

Description
Basic equipment:
- Solid cast design of the machine stand
Accessories compartment integrated in the stand
- Electric height and swivel adjustment in rapid and creep speed,
accurate to 1/10 in both directions
- Electric swivelling adjustment of the milling spindle from -55.0 ° to +55.0 °
in fast and creep speed
-Table size 1,250 x 815 mm, heavily ribbed cast iron table, finely planed;
Machine height 890 mm, table with table slide. Adjustment via
Threaded drive, including aluminium table insert with hardcoat finish
Coating for tools up to Ø 250 mm with quick-release fastener and
Intermediate use
- Electric swivelling adjustment of the milling spindle from -55.0° to +55.0° in the
Fast and creep speed
- Electrical height adjustment of the milling spindle approx. 145 mm in rapid and
Creep speed
- Control elements in the control panel upwards

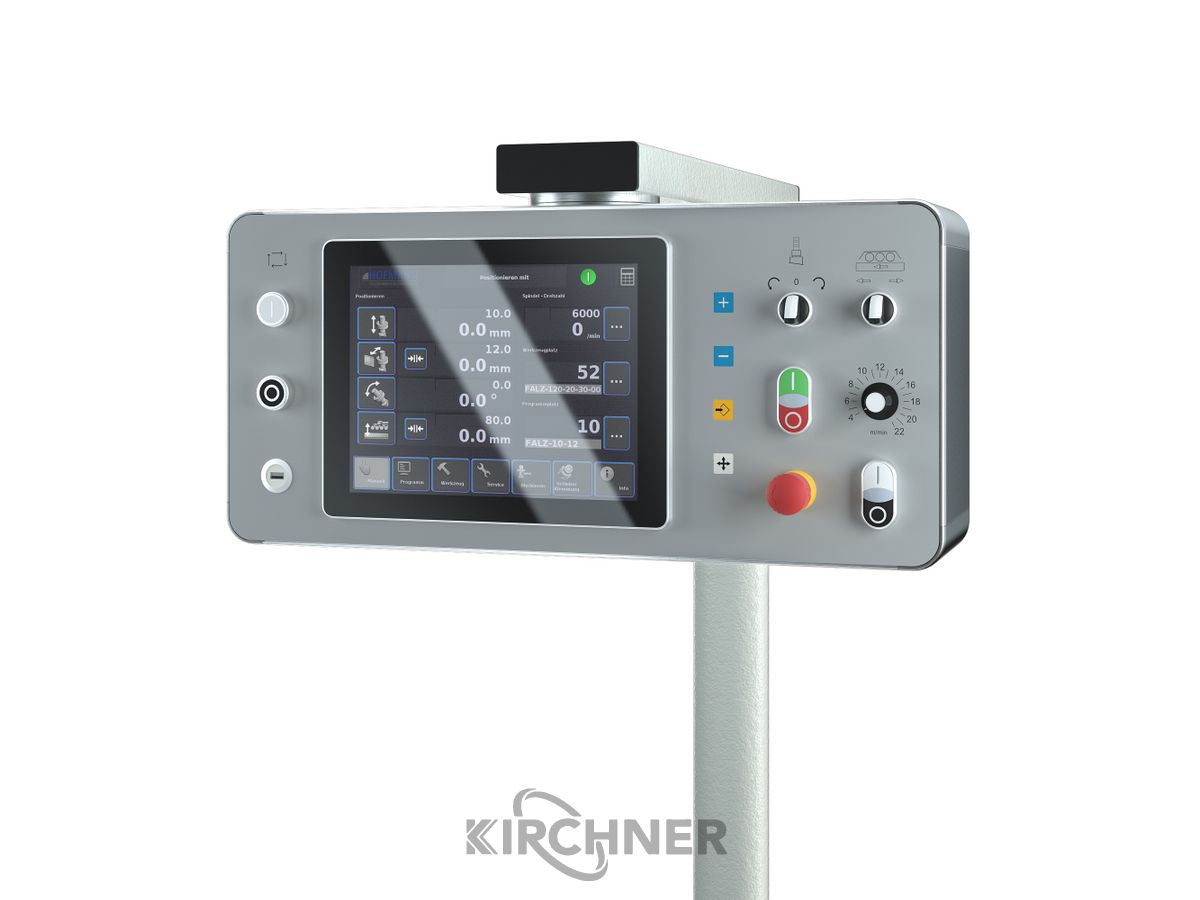

- CNC control:
Two-axis control for milling height and swivelling via touchscreen
User interface
- 10.4" touchscreen TFT LCD VGA, colour depth 16 bit, 256 colours
- Clearly organised user interface. - Structure of the control panels and the
Symbols are the same in all masks
- Symbols are text-supported
- Permanent navigation bar, therefore no switching between the
Masks and no intermediate steps (such as "home page")
- Simple, self-explanatory user guidance by means of information (coloured
highlighted) and information line
- Masks: Manual, programme and tool - Programme with 99999
programme locations (for optimum organisation). The axis
Milling height and spindle swivelling stored
- Copy function for programme position
- Visualisation of the workpiece
- Tool station with 99999 tool stations (this provides optimum
Organisation with high efficiency. System open data structure,
User-customisable, for all tools). All data of the
tool used and measuring points can be stored in the
indicating at which point the measurement was taken
- Copy function for mould location
- Visualisation of the tools
- Own photos (100 pieces) for the workpiece and tool can be stored with a USB cable.
Stick can be inserted
- List search function for programme and "magnifying glass" tool position
- Convenient homing for all axes
- The positioning button lights up if the setpoint/actual values do not match
- Fine adjustment possible while spindle is running via safety circuit
for milling height
- Data protection through key switch
- USB interface for data backup
- Possibility to switch to national language
- Clamp-Fix HSK-F63 tool clamping system
Easy to release pneumatically via switch (keyless operation)
incl. milling arbour HSK-F63 Ø 30 x 140 mm and tool mounting station for
Convenient tool change outside the machine
- Infinitely variable speed regulation via direct drive from 1,500 to 10,000
rpm; incl. 7.5 kW motor spindle
7.5 kW motor spindle includes operating mode S1 and S6
(only this guarantees reliable operation without failures in the event of overload)
S1 = Continuous operation with an output of 7.5 kW
S 6 = Continuous operation with intermittent load with an output of 10.5 kW
- Tool tray
- Double-sided swivel unit bearing in 2 segment guides
- Milling fence type 2601 Efficient with total adjustment via handwheel according to
Digital counter and jaw fine adjustment of the infeed jaw via
Cylinder knob, with vernier. Cast iron stop jaws 500/500 mm with
Holder for safety rulers and moulding board. Tool Ø 250 mm
- Machine socket fused with plug for feed unit with on/off switch
/Off switch in the machine control panel
- Low-maintenance machine
- HOFMANN milling guard "Centrex", arc milling guard FRS 95 Tapoa for
Milling on the thrust ring with suction nozzle
- 3 suction nozzles Ø 120 mm
- Left-hand/right-hand rotation
- Clockwise rotation via two-hand operation with warning indicator
- Accessories: Operating tool, grease gun, operating instructions
Technical data:
Table size 1250 mm x 815 mm
Table height 890 mm
Slide attachment up to 250 °
Milling arbor height adjustment approx. 145 mm
Swivelling range of milling arbor - 55° to + 55 °
Milling arbour holder HSK-F63
Speeds at 7.5 kW: 1500/3000/4000/4500/5000/6000/7000/
8000/10000 or variable
Motor power 7.5 kW
Min. workpiece length 300 mm
Min. workpiece width 20 mm
Max. Workpiece width 800 mm
Suction nozzle (3 pieces) D 120 mm
Average air velocity 20 m/sec.
Weight approx. 1000 kg
