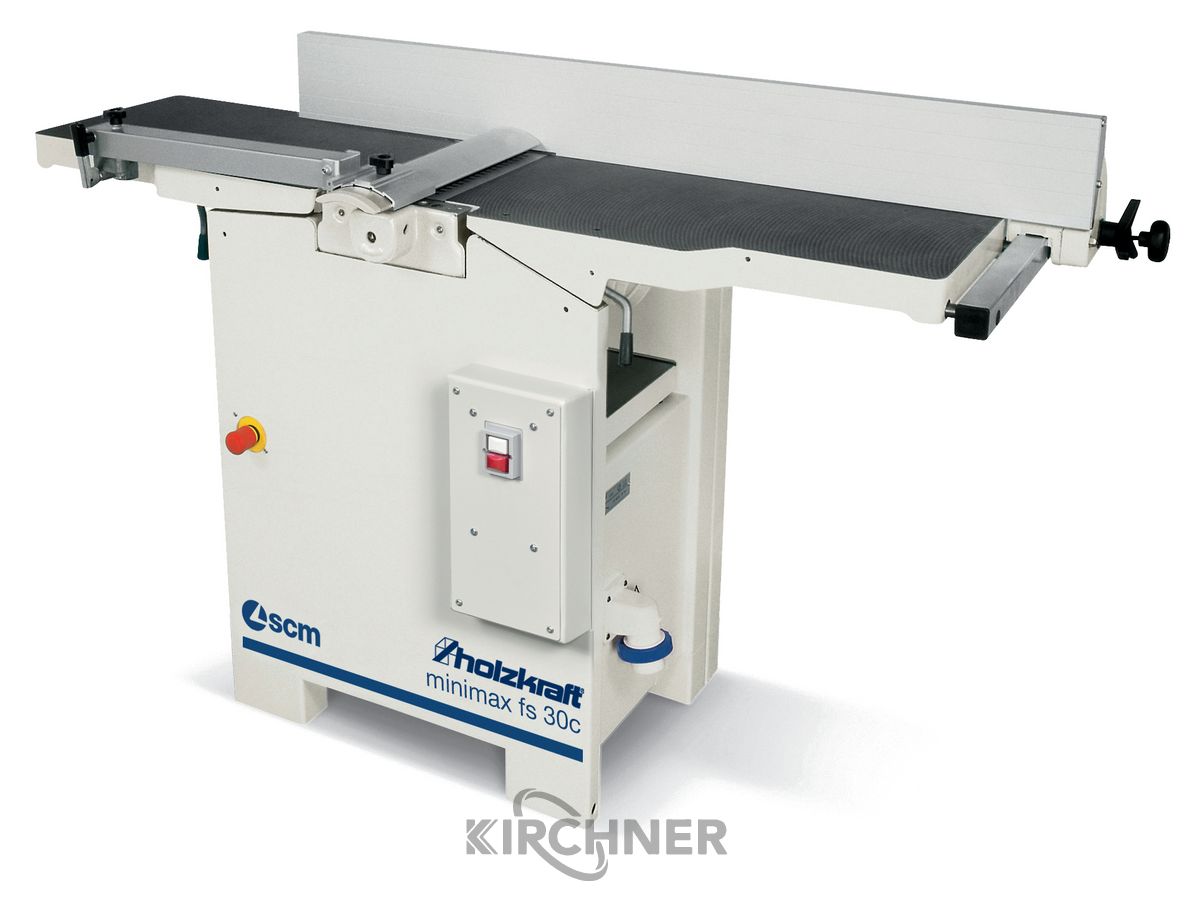

Surface planer - thickness planer

SCM / Holzkraft minimax fs 30 c with spiral cutterhead
Delivery time on request

3.999,00 excl. shipping

SKU: 1326-48181 Categories: , Tag:

Description

- NEW -

Description:

- With spiral cutterhead
- Helically toothed steel infeed roller for constant and even wood infeed
- The particularly long dressing tables made from one piece enable easy dressing of the workpieces
- Large dressing fence can remain in position when opening the dressing tables

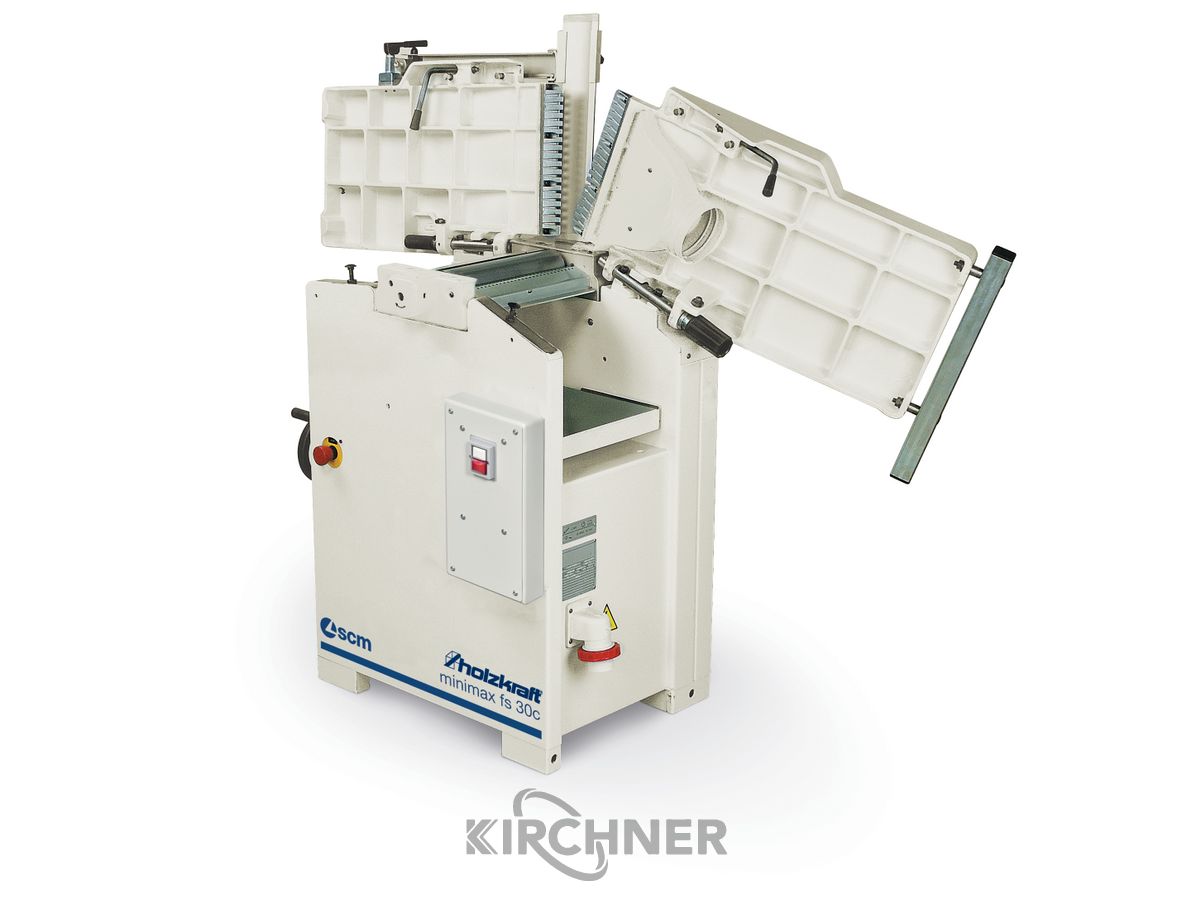

- Dressing tables that open to the rear
- The high machine weight ensures maximum precision and smooth running
- Powerful industrial motor
- Robust steel/grey cast iron construction
- Work tables are made of grey cast iron, post-annealed and stress-free, making them robust and permanently flat
- Table lips for quiet running

Equipment details

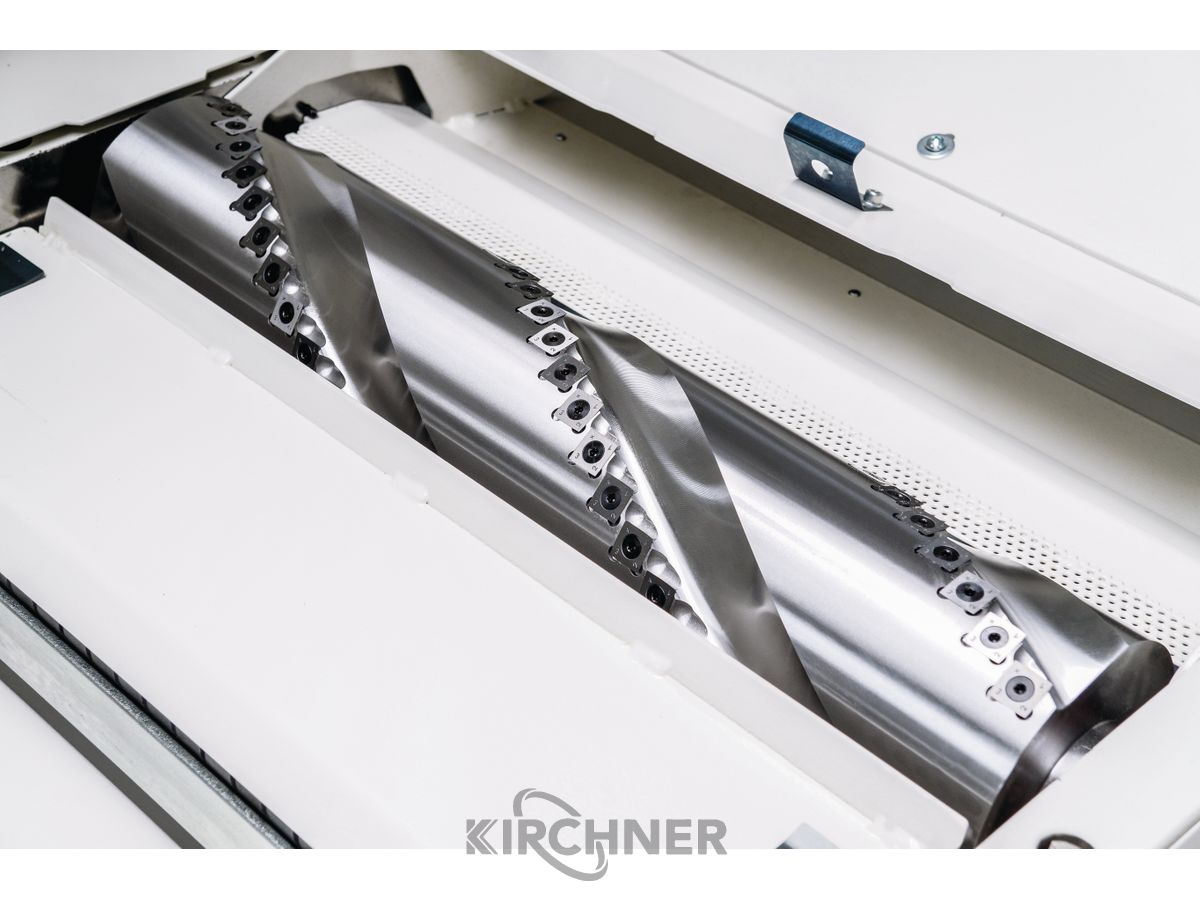

Spiral cutterhead
- Particularly quiet
- Perfect planing result

Suction hose connection
- The suction nozzles of the leveller and thicknessers point in the same direction.
- The hose is connected from one side only.
- No hose is required to reach around the machine.

Drive
- Sturdy chain drive
- Steel drive wheels
- Solid grey cast iron bearing pedestal

Planing mill
- Solid anti-kickback devices prevent workpieces from kicking back
- TERSA planing cutterblock with three knives ensures an optimised planing pattern

The material feed
- Helical-toothed steel feed rollers for constant and even material feed without marks
- Multiple teeth grip simultaneously for powerful feed
- Wear-free in contrast to rubber feed rollers

Technical data:

Length approx. 1725 mm
Width/depth approx. 880 mm
Weight approx. 270 kg

Dresser
Total length of the tables1500 mm
Working height 900 mm
Chip removal max. dressing 4 mm

Suction connection
Suction nozzle diameter Thickness 2 x 120 mm

Installation information
Space requirement Length 1725 mm
Space requirement width/depth 1350 mm

Explanation Space requirement
The dimensions take into account maximum travel distances or effective lengths.
Machine body length 659 mm
Machine body width/depth 488 mm
Working range length 1000 mm
Working range width/depth 3500 mm

Explanation of work area
Please add the specified dimensions to the required space to obtain the recommended free installation area for the machine.

Thickness
Thicknessing table length 565 mm
Thicknessing table width 300 mm
Working height Thickness min. 3 mm
Working height Thickness max. 230 mm
Chip removal max. thickness 4 mm

Electrical data
Drive motor power 4 kW
Supply voltage 400 V
Mains frequency 50 Hz

Planing cutterblock
Planing shaft type TERSA
Planer shaft diameter 72 mm
Number of planing knives 3 pcs
Planing shaft speed 5200 min¯¹
Planing width max. 300 mm

Feed rate
Feed speed 7 m/min

SCOPE OF DELIVERY
TERSA planer cutterblock
Anodised aluminium dressing fence
