Description

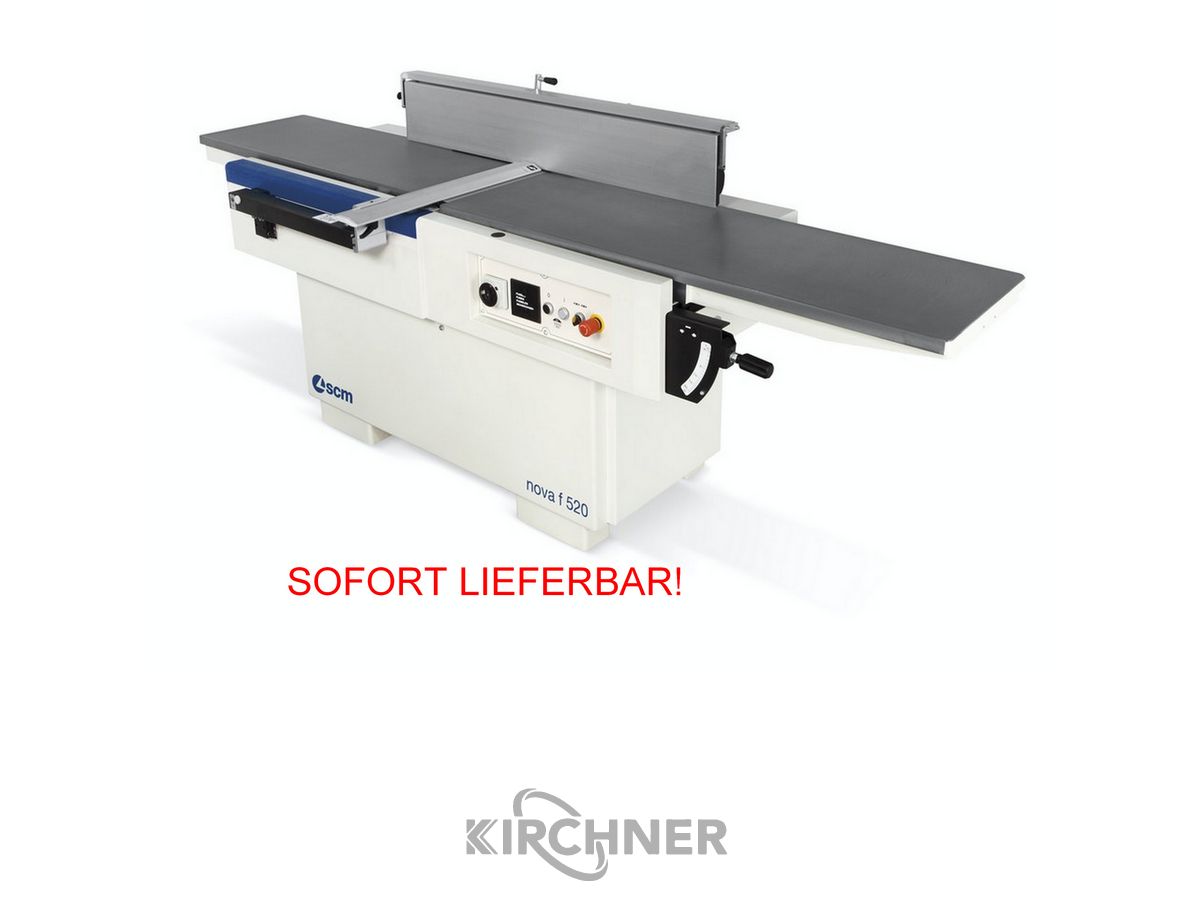

Exhibition machine
Technical data:
Working width of machine table [mm] 520
Total length of machine table [mm] 2750
Length front table [mm] 1550
Rear table length [mm] 1200
Shaft diameter [mm] 120
Planing shaft speed [rpm] 5000
4 knives [mm] 35x3x520
Aluminium dressing fence [mm] 1200×190
Swivelling range dressing fence from 90° to -45°
Table height from floor [mm] 845
Suction bonnet diameter [mm] 120
Maximum chip thickness [mm] 8
Controls/functions
- Manual adjustment of the front table
- Display of chip thickness on scale
Security/Protection
- Planing shaft guard with parallelogram adjustment underneath the
Working line (CE version)
- "Boomerang" planing shaft protection (versions with electric
protective devices)
- Insertion work not possible (CE version)
- Lockable main switch
- Thermal circuit breaker
- 110V auxiliary circuit
- Automatic motor brake (CE version)
- Emergency stop button
- CE Declaration of Conformity (CE version)
Devices
- Planing shaft and blade holder with markings as a positioning aid complete
with setting gauge for planing knives
- Service key set
- Motor with direct connection :
(S1): 4 kW 5.5 hp 50 Hz (4.8 kW 6.6 hp 60 Hz)
(S6 -40%): 5kW 7 PS 50 Hz (6 kW 8PS 60Hz)
109999 Design according to safety regulations N. 1
R11163 nova f 520 CE version
930731 Volt 400 EU
931201 Frequency 50 Hz
555014 P1 version - CE and electrical safety devices
Motor power 7kW 50 Hz with automatic star-delta switch
570127 Additional folding stop
for processing thin parts
570135 TERSA cutter head with insert knives
Complete with a set of knives
083250 Socket
109993 MACHINE LANGUAGE: German
