Description
Exhibition machine

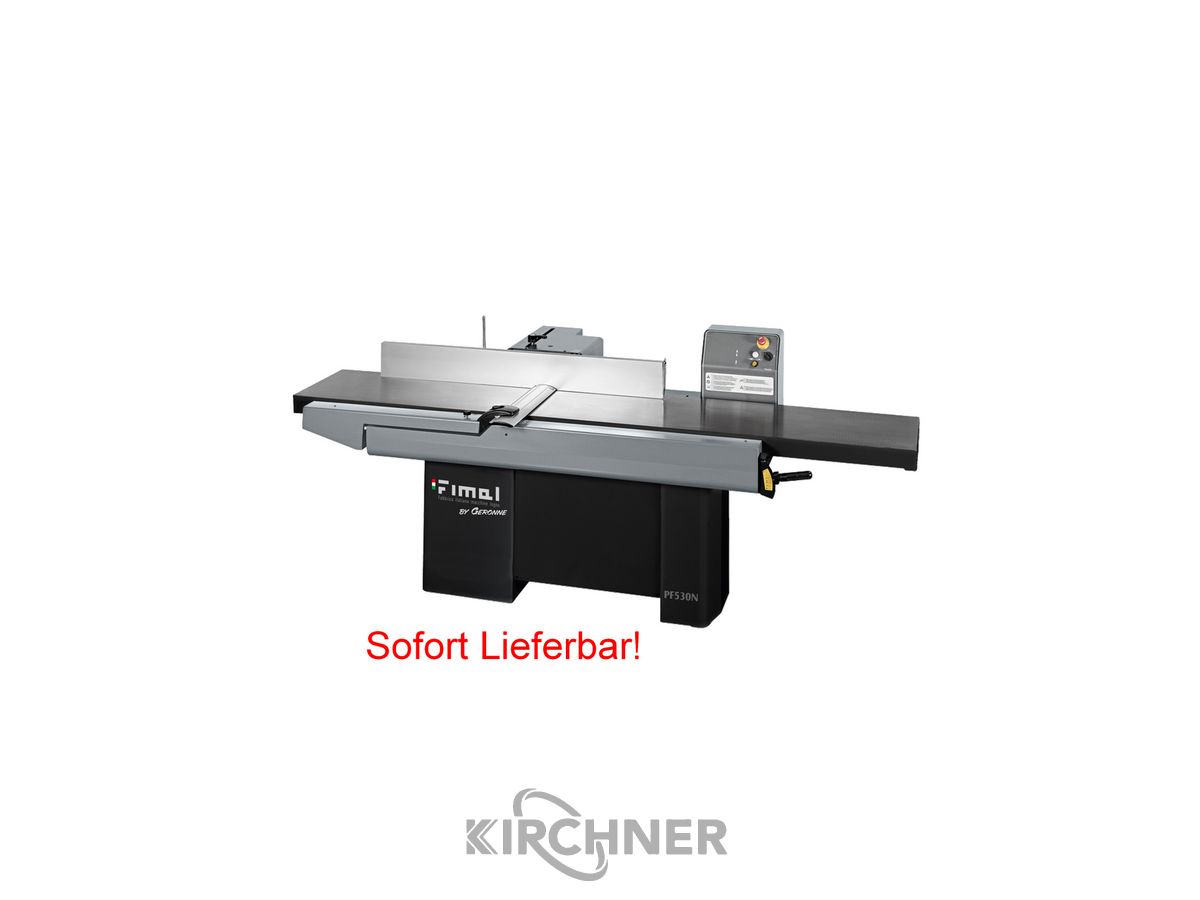

FIMAL surface planer type PF 530 N,
Partnership Edition
Technical data:
Dressing table dimensions: 3,000 x 530 mm
Feeding table length: 1,800 mm
Dressing fence dimensions: 1,500 x 175 mm
Swivelling range stop: 0 - 45 °
4-blade planing shaft system TERSA d=120mm: 5,000 rpm
max. chip removal dressing according to CE: 8 mm
Motor 380 Volt / 50 Hz: 5.5 kW
Sound level according to EN 27960: 82.9 - 88.9 dB(A)
Basic equipment:
Electrics according to CE standard
Magnetic brake
Suction nozzle d=150mm
Bridge protection

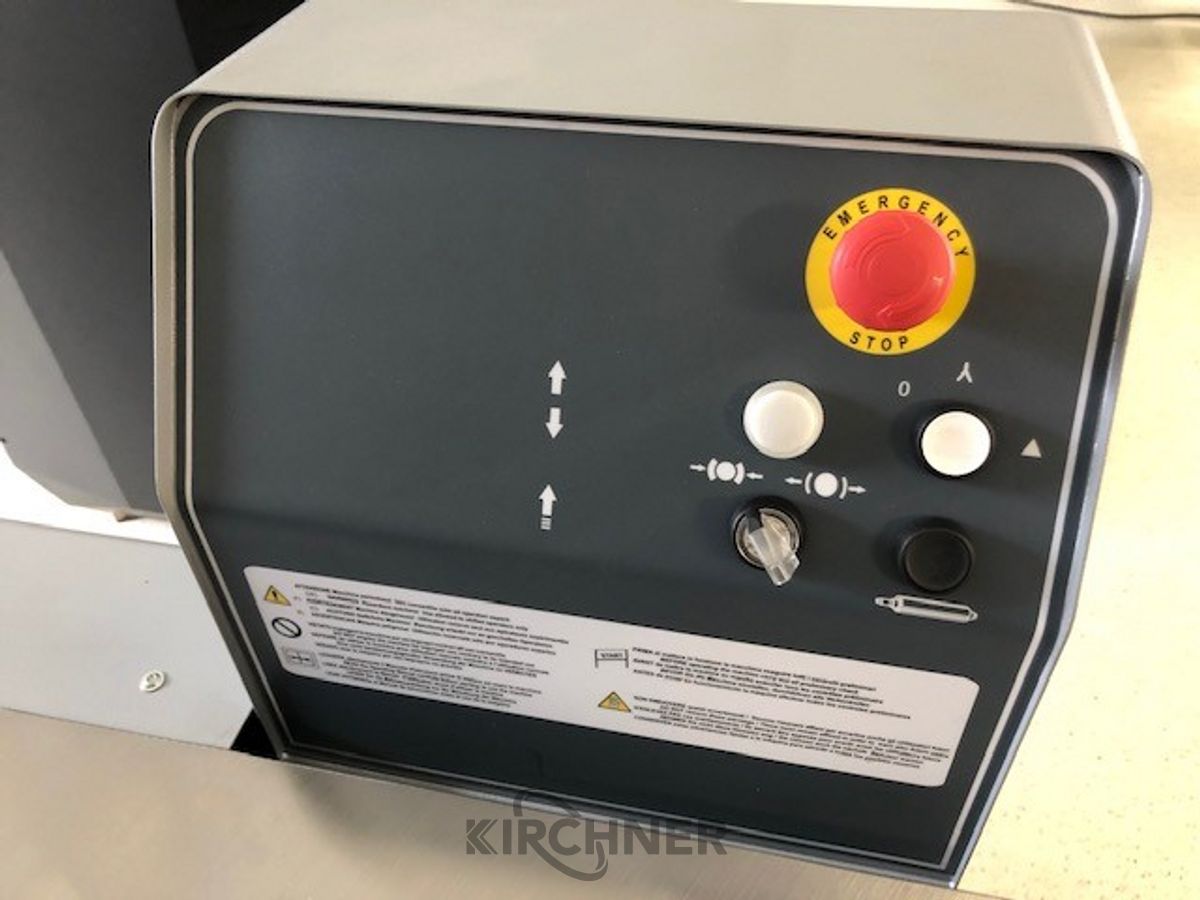

Top-operated control panel
Original AIGNER aluminium stop with integrated auxiliary stop
