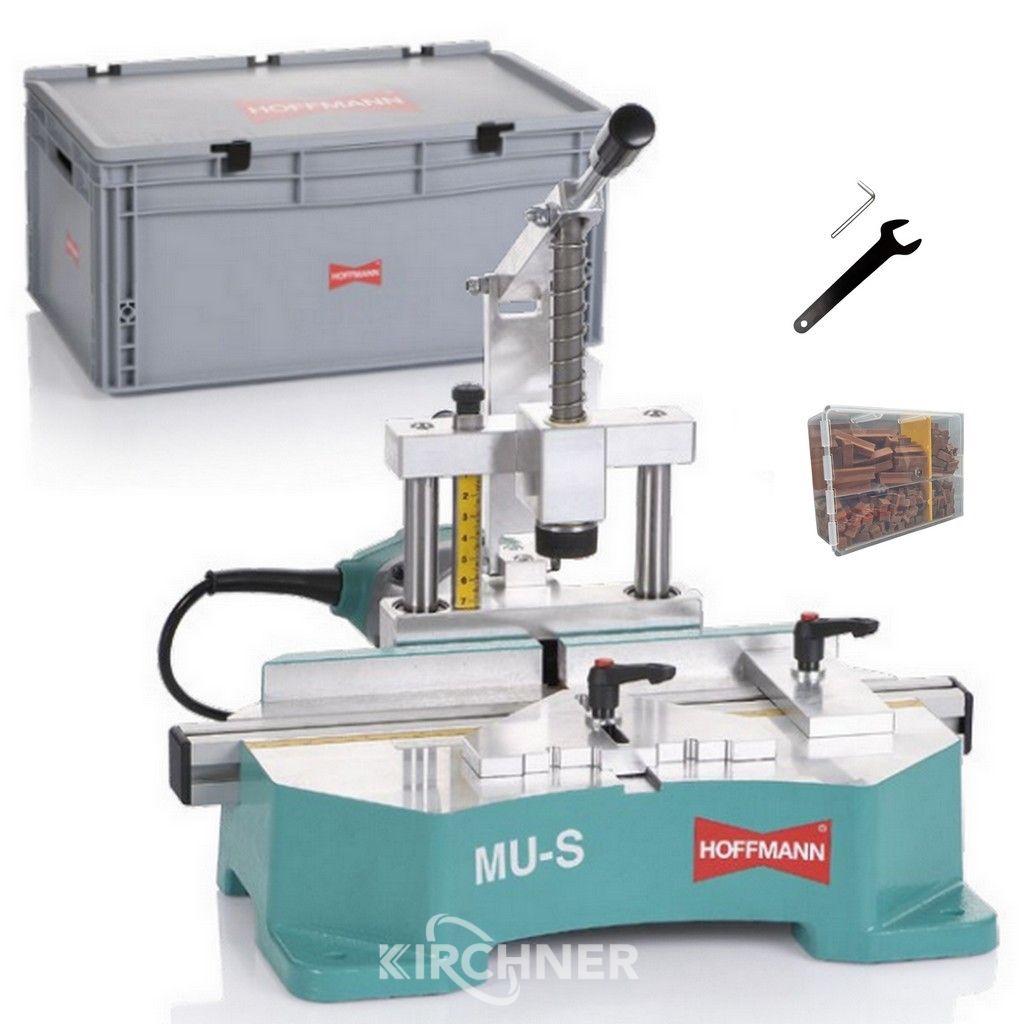

Description

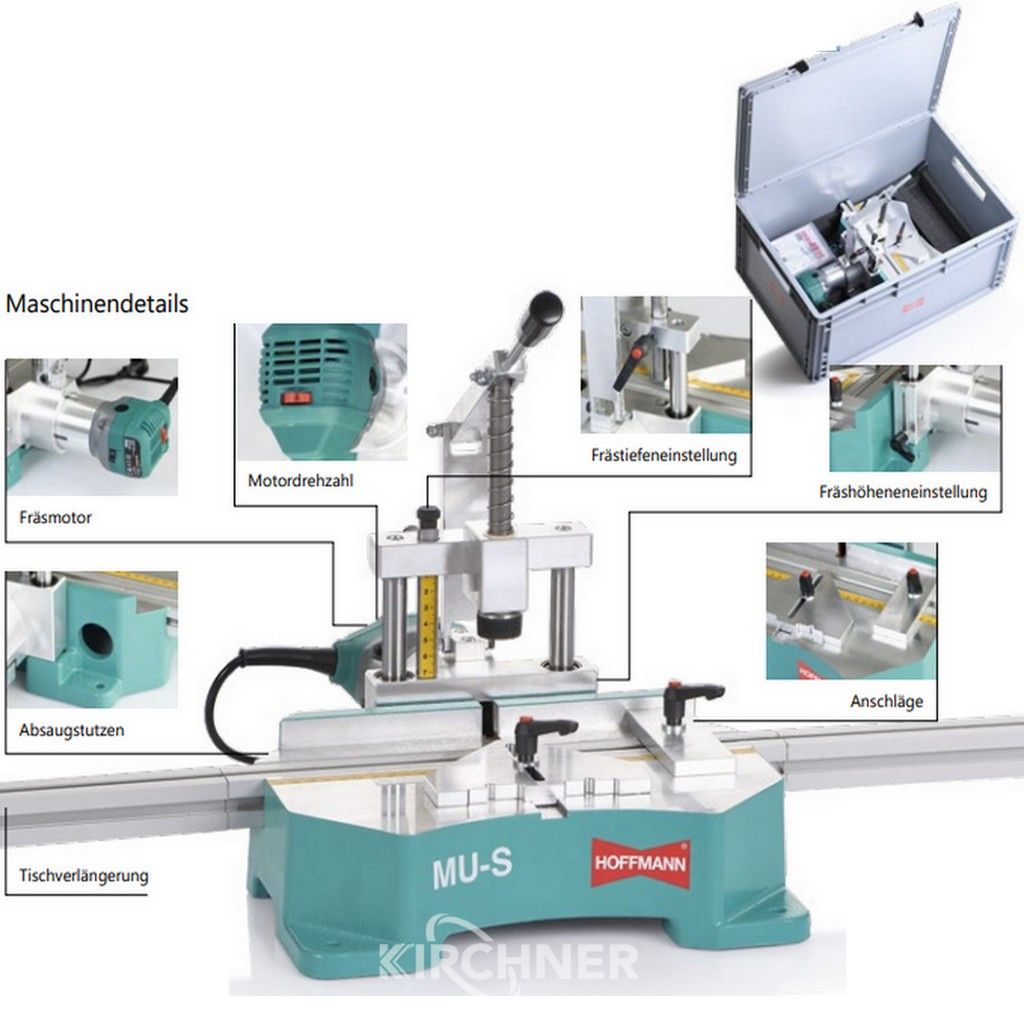

Function:
Set stops to dimension and insert workpiece.
When the handle is pressed down
the workpiece.
The milling unit moves to the set milling depth.
The finished part is removed when the handle is returned.
released again. Done!
Technical data:
Electrical 1ph/N/230 V 50/60Hz 0.7 kW
Motor 1 x 710 Watt
Idle speed 13,000 - 33,000 rpm (infinitely variable)
Manual feed manual
Manual workpiece clamping
Clearance height 75 mm
Milling depth 0-55 mm
Suction nozzle Ø 37 mm
Swallow size W-0/1/2/3
Dimensions W/D/H 370/400/370 mm
Weight 9 kg
Order no. W1020100
