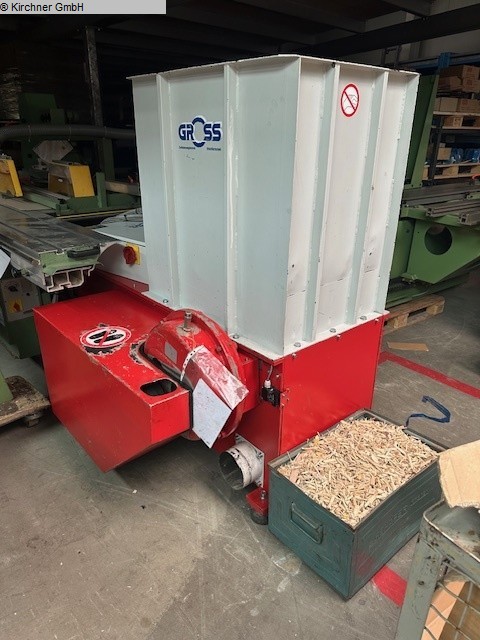

Description
Technical specification:
Hopper opening: 600 x 800 mm
Hopper capacity: 0.6 m³
Working width of the rotor: 600 mm
Diameter of the rotor: 260 mm
Drive power: 15 kW
Rotor speed: 90 rpm.
Number of knives: 14 pieces + 2 pieces
Type and size of blades: concave / 40 x 40 mm, reversible cutting crowns
concave / 30 x 30 mm, broaching blade
Screen perforation: 15/20 mm
Paintwork: frame in RAL 5010, hopper in RAL 7016
(HoKuTech standard paint finish)
Connected load: 400 V +/- 5 % / 50 Hz
included:
Switch cabinet (Rittal) with 5 m cable
Electrical control (SPS Siemens)
Star triangle start-up
Rubber suspension elements
E-rotor with blade pockets milled into the profile
Gearbox limit switch
1st row of knives
Hold-down device on the pusher for long and large parts
Large 40 x 40 mm blades for optimum material feed
Very robust gearbox
Special broaching blade against lateral jamming
Machine number: 510-5238
