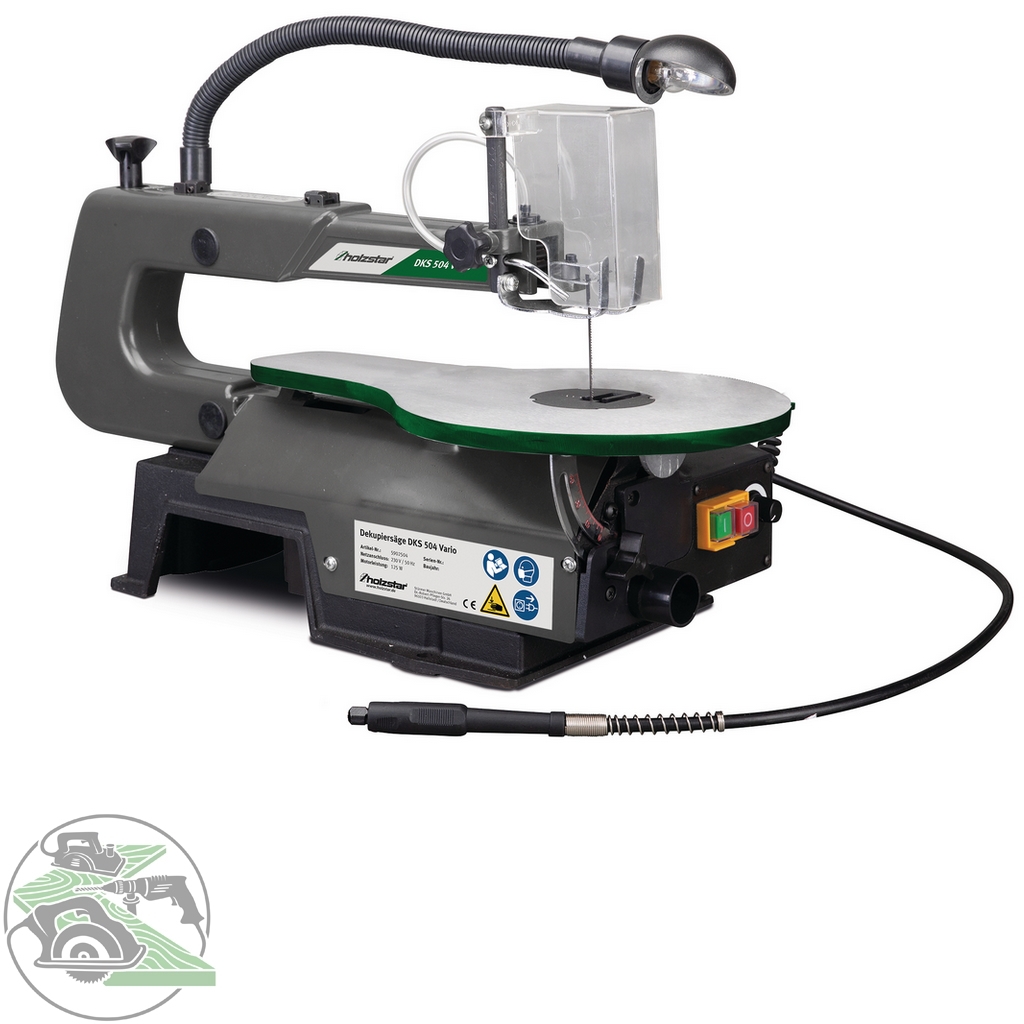

Description
Description of the
Infinitely variable stroke rate regulation

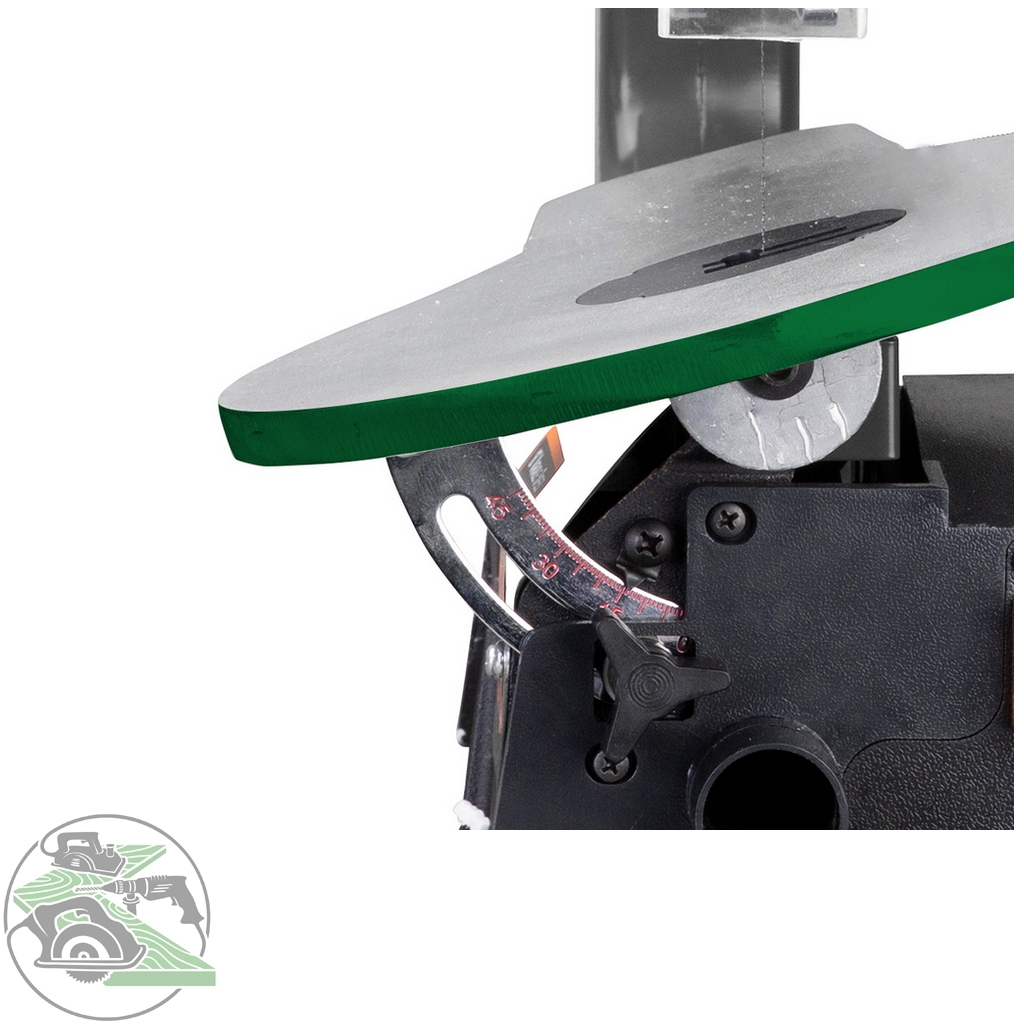

Work table can be tilted from 0 to +45°
Flexible LED light for illuminating the cutting area
Universal hand sander integrated
Ideal for fine sawing work in schools and training workshops,
for designers and architects as well as craftsmen and DIY enthusiasts
For processing softwood, plastic and similar materials
Robust cast construction guarantees quiet, low-vibration operation
Can be used on any workbench or work surface thanks to its compact size

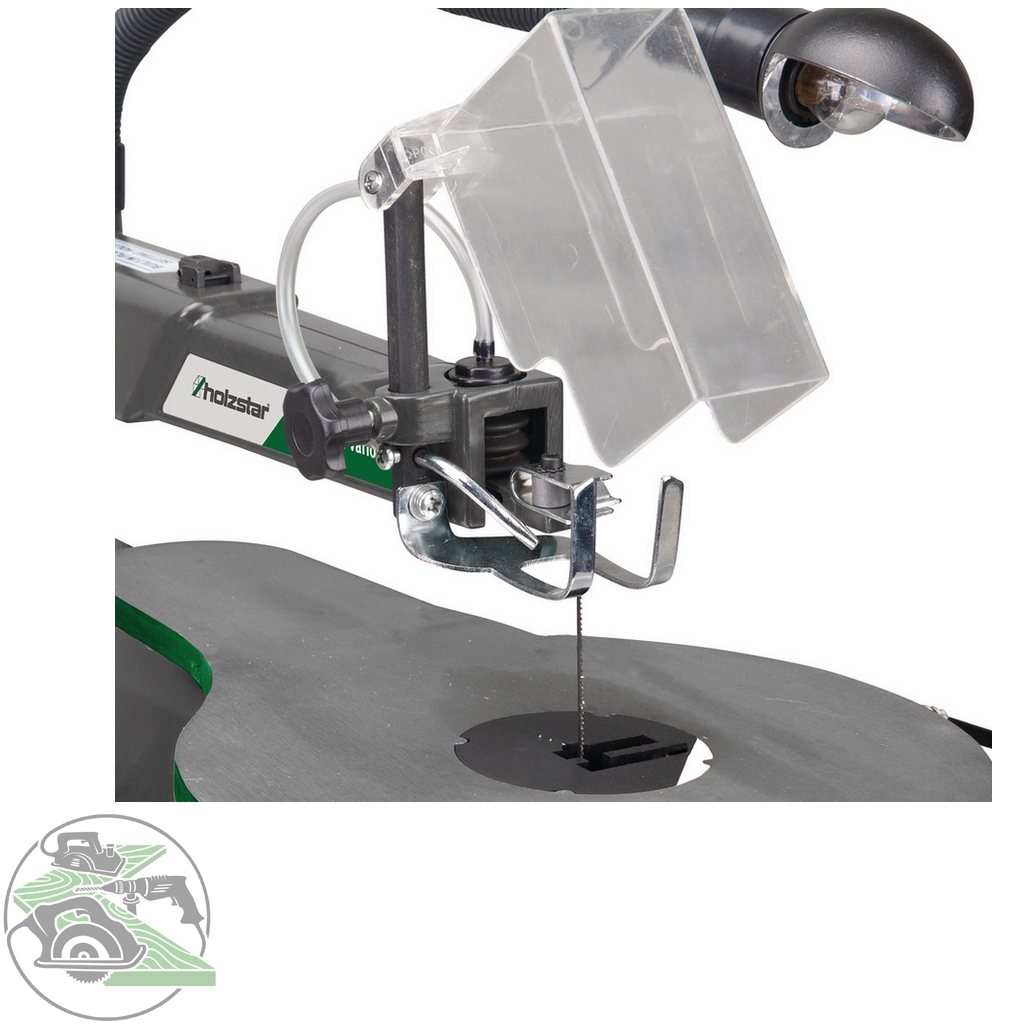

Free-swinging saw blade holder for standard saw blades with cross pin
Can be connected to an external extraction unit via extraction nozzle
Includes universal hand sander with many possible applications, e.g. sanding, cutting, drilling, polishing (tool set required)
Technical data
General information
Cutting height max. at 90° 52 mm
Table width 254 mm
Max. cutting height at +45° 20 mm
Saw blade length 133 mm
Stroke rate 550 - 1600min¯¹
Projection 405 mm
Table length 414 mm
Nominal width outside suction nozzle 35 mm
Dimensions and weights
Length (product) approx. 630 mm
Weight (net) approx. 12 kg
Width/depth (product) approx. 320 mm
Width/depth (product) max. 380 mm
Height (product) approx. 380 mm
Electrical data
Supply voltage 230V
Mains frequency 50 Hz
Phase(s) 1Ph
Input power 0.09 kW
Current type AC
Universal sander
Speed universal sander 1650 - 4800 min¯¹ Mounting
Ø universal grinder 3.1 mm
