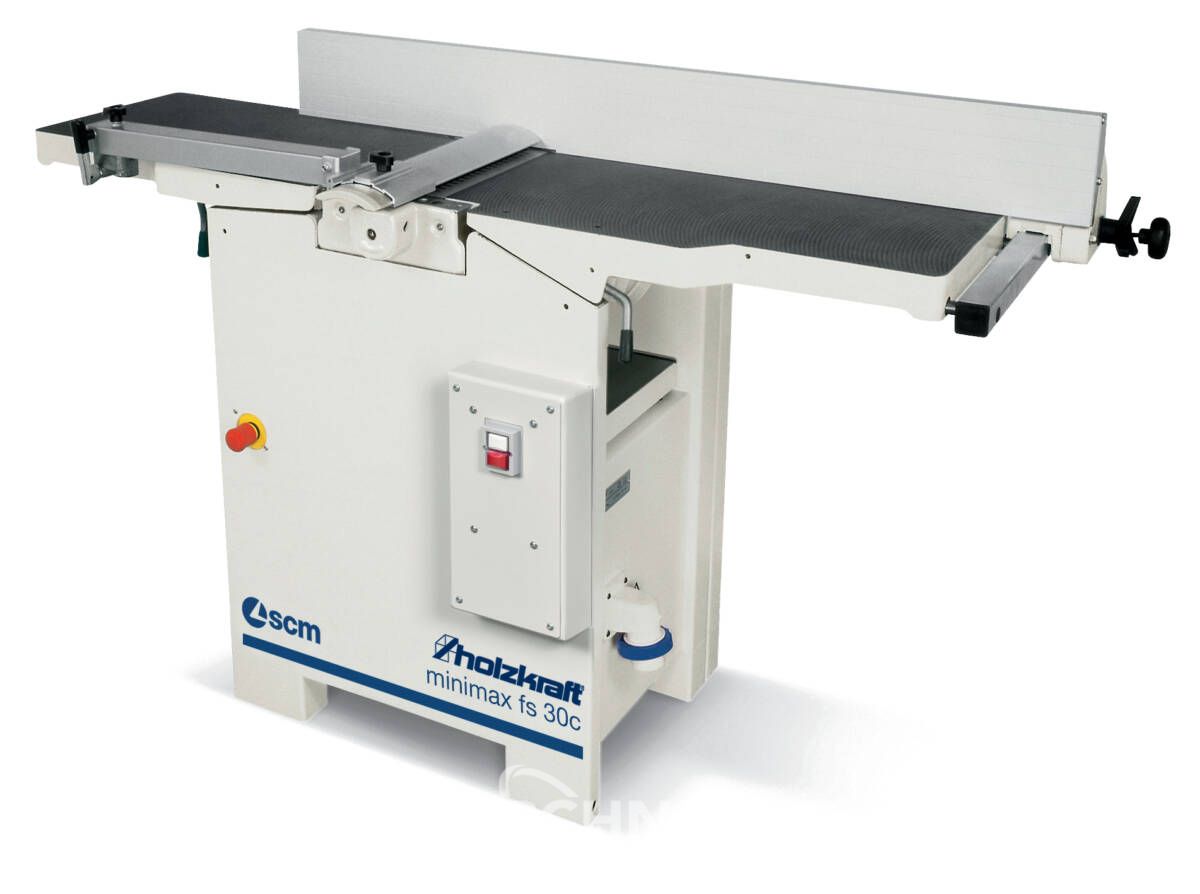

Surface planer/thickness planer

- NEW -

- With TERSA cutterhead for quick cutting in seconds
Changing planing knives
- TERSA planing knife system enables particularly
low-noise operation
- Helically toothed steel feed roller for
Constant and even wood feed
- The particularly long dressing tables made from a
pieces enable easy dressing of the
Workpieces
- Large dressing fence can be opened
of the dressing tables remain in position
- Dressing tables that open to the rear
- The high machine weight ensures maximum
Precision and smooth running
- Powerful industrial motor
- Robust steel/grey cast iron construction
- Work tables are made of grey cast iron,
annealed and stress-free, thereby
Insensitive and permanently flat
- Table lips for quiet running

Equipment details
TERSA planer cutterblock

- No more adjusting and screwing
- Changing planing knives in seconds
- Self-locking
- Particularly quiet
- Perfect planing result

Suction hose connection

- The extraction nozzles of the leveller and thickness
point in the same direction.
- The hose connection is made from just one
Page from.
- No hose is required to wrap around the
passes around the machine.

Drive

- Sturdy chain drive
- Steel drive wheels
- Solid grey cast iron bearing pedestal

Planing mill

- Prevent massive kickbacks
the kickback of workpieces
- TERSA planer cutterblock with three knives
Ensures an optimum planing pattern

The material feed

- Helical toothed steel feed rollers for a
Constant and even material feed
without imprints
- Several teeth grip simultaneously for powerful
Feed rate
- Wear-free, in contrast to rubber feed-in
rolling

Technical data:
Length approx. 1725 mm
Width/depth approx. 880 mm
Weight approx. 270 kg
Dressing chip removal max. 4 mm
Suction nozzle diameter Thickness 2 x 120 mm
Thickness Working height min. 3 mm
Thickness Working height max. 230 mm
Thickness of chip removal max. 4 mm
Drive motor power 4 kW
Supply voltage 400 V
Mains frequency 50 Hz
Planer cutterblock type TERSA
Number of planing knives 3 pcs
Speed 5200 min¯¹
Planing width max. 300 mm
Feed speed 7 m/min

Item no. 5503031

Storage location 97447 Gerolzhofen
- free loading-
