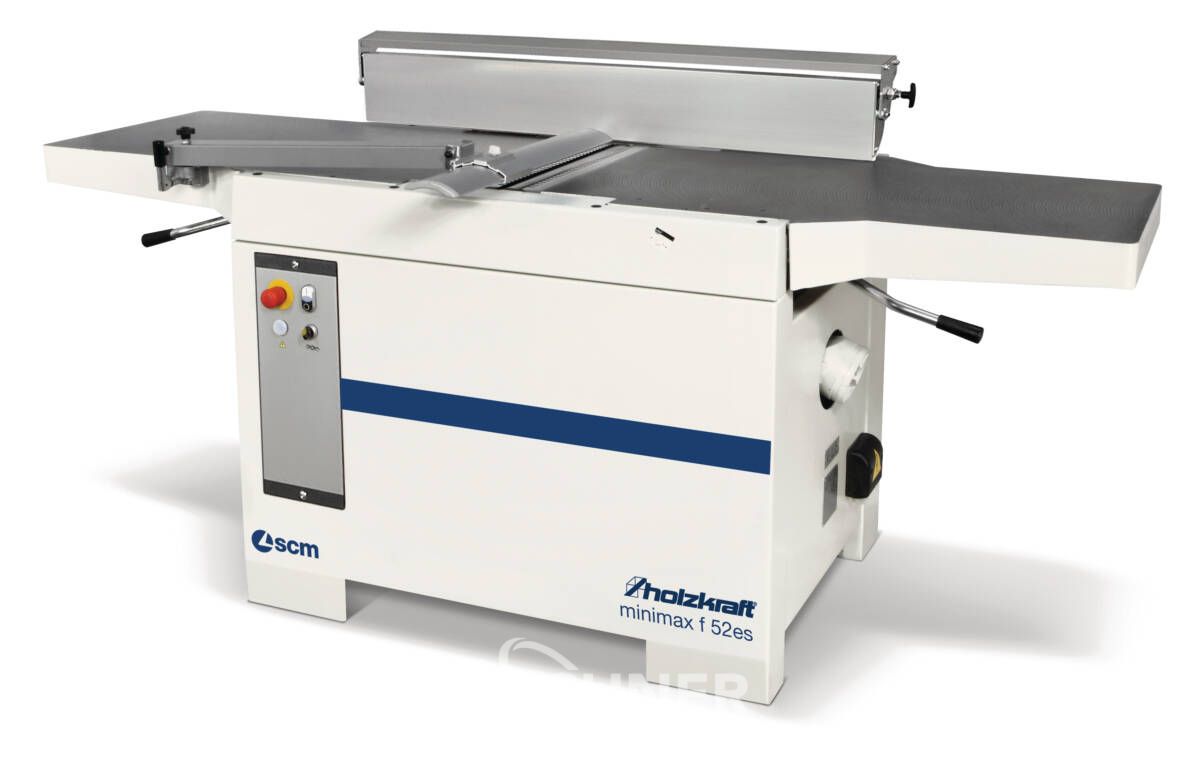

Surface planer + spiral cutterblock
minimax f 52es
- Article No. 1326-48530
7.864,00€
incl. VAT · excl. shipping
Delivery time on request
- Viewing by appointment
- Personal expert advice
- Full manufacturer's warranty
Technical data
| Manufacturer | SCM Holzkraft |
|---|---|
| Model | minimax f 52es |
| Item number | 1326-48530 |
| Category | Planing › Surface planer |
Description of the
- New -
Description:
- TERSA quick-change system for changing planing knives in seconds
- Four-blade shaft for the best planing results
- Smooth running thanks to precision unit and heavy cast design
- Long dressing tables for precise dressing
- Robust dressing tables made from ribbed grey cast iron, milled and stress-free, making them robust and permanently flat
- Large, sturdy aluminium dressing fence with round bar guide (1200 x 150 mm), easily adjustable and tiltable up to 45°
- With auxiliary stop as standard
- Powerful 5.0 kW industrial motor
- Sturdy grey cast steel construction
- Slot drilling device can be retrofitted
Length (product) approx. 2250mm
Width/depth (product) approx. 1370mm
Weight (net) approx. 465kg
Dresser
Total length of the tables 2250mm
Chip removal max. dressing 8mm
Dressing fence Length 1200mm
Dressing fence height 160mm
Suction connection
Suction nozzle diameter 120mm
Installation information
Space requirement Length 2250mm
Space requirement width/depth 1440mm
Explanation Space requirement
Working range Length 1000mm
Working range width/depth 3500mm
Chip removal max. thickness 8mm
Electrical data
Drive motor power 5kW
Supply voltage 400V
Mains frequency 50Hz
Planing cutterblock
Planing shaft type spiral blade
Spiral cutter 520 mm
84 Knives 15 x 15 x 2.5 mm
Planing shaft speed 5000 min¯¹
Planing width max. 520 mm
Item no. 5503521
incl. special equipment
Spiral cutter shaft part no. 5514126
